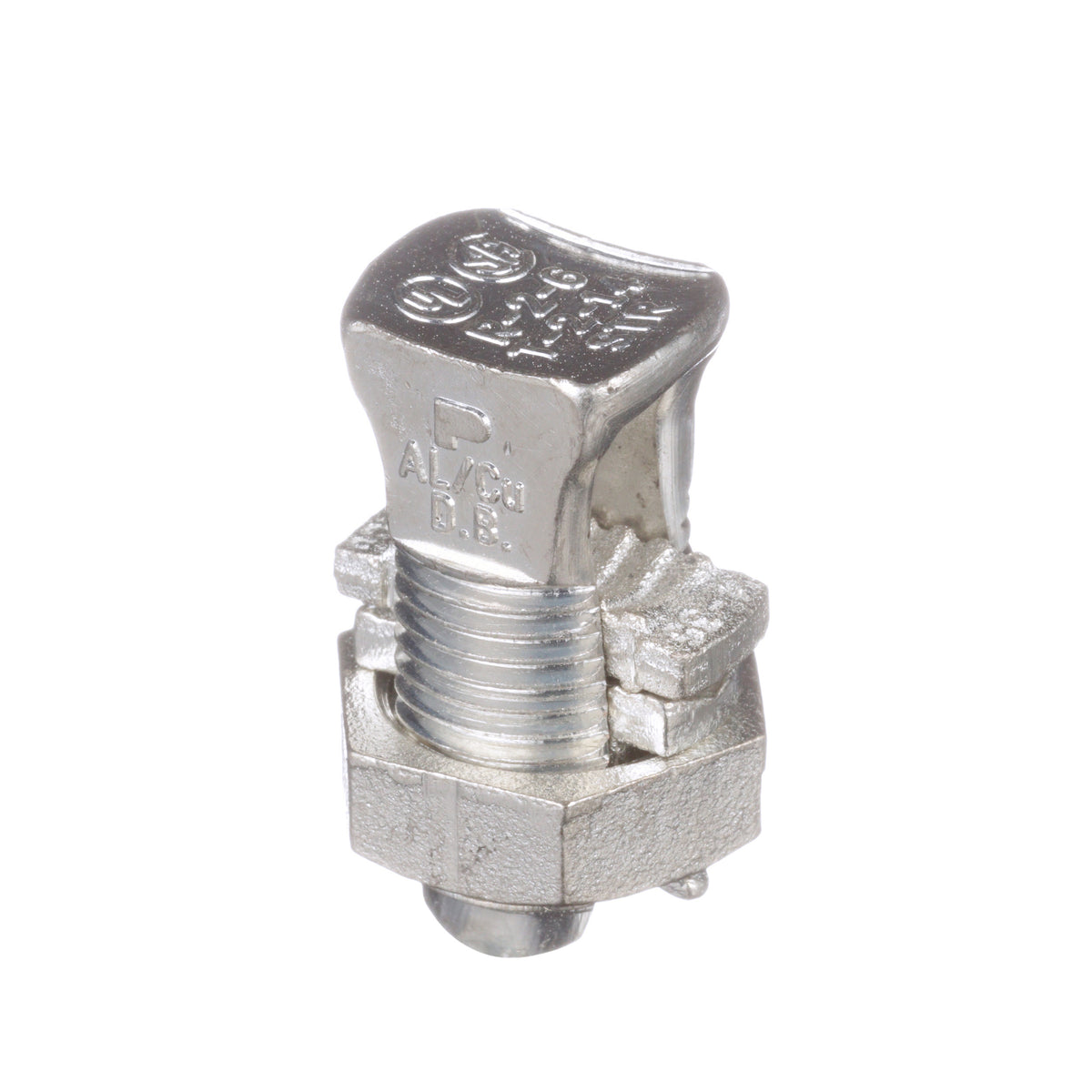

Panduit SBCT2-C | Pan-Lug Mechanical Connectors - Split Bolt
Description
Description
Easily connect copper and aluminum wires securely with our tin-plated copper split bolt, ideal for mixed-metal applications, used for industrial control panels.
Copper split bolt connector, tin plated, type SBCT.
Panduit offers a broad variety of split bolt connectors suitable for a wide range of electrical terminations using code conductor. Designed to be reusable and installed without special tooling, Pan-Lug mechanical connectors provide quality performance.
Panduit Pan-Lug Split Bolt Connector, Mechanical, Series: SBCT, Stranded Conductor, 6 to 2 AWG Conductor, 600 VAC, 0.86 in Hex Nut, 275 in-lb Tightening Torque, 14 AWG Stranded Minimum Tap with One Maximum Run, 90 deg C, Copper, Tin Plated, 0.31 in ID x 1.45 in L x 0.6 in W
Panduit - SBCT2-C - Features
- Made from high strength copper alloy to provide premium electrical and mechanical performance
- Tin plated to inhibit corrosion and oxidation
- Offered with dual rating for use with aluminum or copper conductors
- Wide wire range taking capability minimizes inventory requirements
- Nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection
- Free floating pressure bar separates conductors of dissimilar materials for secure connection on a full range of conductor combinations
- Copper to aluminum connection
- Made from high strength copper alloy to provide premium electrical and mechanical performance
- Tin-plated to inhibit corrosion and oxidation
- Offered with dual rating for use with aluminum or copper conductors
- Wide wire range-taking capability minimizes inventory requirements
- Nut hex provides correct fit with socket, box, or open end wrenches resulting in proper torquing of electrical connection
- Free floating pressure bar separates conductors of dissimilar materials for secure connection on a full range of conductor combinations
- UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90C
Specifications
Specifications
Panduit - SBCT2-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SBCT2-C |
| UNSPSC Code | 31160000 |
| Product Type | Mechanical Split Bolt Connector |
| Connection Type | Copper to Aluminum |
| Base Material | Copper |
| Maximum Copper Conductor Size (AWG STR) | 2 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (V) | 600 |
| Finish/Coating | Tin-Plated |
| Sub Brand | Pan-Lug |
| Part Features | high strength copper for corrosion resistance,tin plated,range taking,dual rated for copper and alum,hex design |
| UPC | 07498370770 |
