Panduit SBCT3-C | Mechanical Connectors - Split Bolt | UPC - 07498370769

Panduit offers a broad variety of split bolt connectors suitable for a wide range of electrical terminations using code conductor. Designed to be reusable and installed without special tooling, Pan-Lug mechanical connectors provide quality performance.

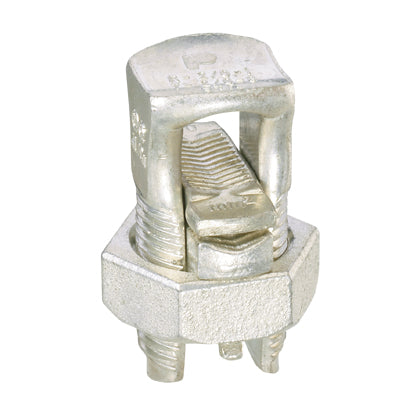

Panduit Pan-Lug Split Bolt Connector, Mechanical, Series: SBCT, Stranded Conductor, 8 to 4 AWG Conductor, 600 VAC, Specifications: 0.81 in Hex Nut, 275 in-lb Tightening Torque, 10 AWG Stranded Minimum Tap With One Maximum Run, 90 deg C, Copper Alloy, Tin Plated, 0.27 in ID x 1.24 in L Dimensions

Features + Benefits

• Made from high strength copper alloy to provide premium electrical and mechanical performance
• Tin plated to inhibit corrosion and oxidation
• Offered with dual rating for use with aluminum or copper conductors
• Wide wire range taking capability minimizes inventory requirements
• Nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection
• Free floating pressure bar separates conductors of dissimilar materials for secure connection on a full range of conductor combinations
• Copper to aluminum connection

Panduit SBCT3-C | Mechanical Connectors - Split Bolt | UPC - 07498370769 Key Specs

---

Panduit SBCT3-C | Mechanical Connectors - Split Bolt | UPC - 07498370769 Data Sheets

Articles | Article - Product Related - 08Jan CBM B-G strategies for telco room	Download and View
Part Drawings | Part Drawing - PDF - C41511_03sbct8-500	Download and View
Catalog Cut Sheets | Catalog Cut Sheet - D-PCCC1-WW-ENG-SBC8	Download and View

---
