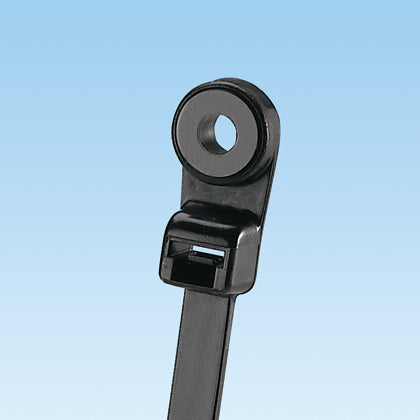

Panduit SC8-50-S10-C0 | StrongHold™ Clamp Cable Tie
Description
Description
Panduit StrongHold Cable Tie, Standard Weather Resistant, 7.87 in Length, 0.19 in W, 0.06 in Thickness, 1.97 in Bundle Dia, Lock Mechanism: Locking, 50 lb Tensile, -40 to 185 deg F, Nylon 6.6, Black
Attach cable bundles to any surface with our clamp cable tie. With its clamp design, if offers contractors an economical option for commercial construction and general-purpose applications
The SC8-50-S10-C0 StrongHold Clamp Cable Ties offers contractors an economical clamp cable tie option for commercial construction and general-purpose applications. The cable tie design allows you to secure cable bundles to another surface, for use with #10 (M5) screw. Standard, 7.87 (200mm) length and are for outdoor use. Made of Weather Resistant Nylon 6.6, are black in color and come in packages of 50.
Panduit - SC8-50-S10-C0 - Features
- Mount with #10/M5 screw
Specifications
Specifications
Panduit - SC8-50-S10-C0 - Specifications
| Category | Clamps And Vices |
|---|---|
| Approvals | None |
| Quality Standard | Commercial Release |
| Rohs Compliant | Not Declared |
| Type | Clamp - Cable, Mini |
| UNSPSC Code | 39121700 |
| Technical Information | UL 62275 Compliant (Type 1, 11), UL Recognized #E56854, RoHS Complaint |
| Material Description | Nylon 6.6 (UV-Resistant, Weather-Resistant) |
| Product Type | Cable Tie |
| Sub Brand | StrongHold™ |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 7.9 |
| Overall Length (mm) | 200 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.061 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 1.97 |
| Maximum Bundle Diameter (mm) | 50 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| UPC | 61305625833 |
Panduit - SC8-50-S10-C0 - Package Information
| UPC | 61305625833 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.0352 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.3522 |
Panduit - SC8-50-S10-C0 - Videos
| Panduit SC8-50-S10-C0 Video 1 | Click to View |
|---|---|
| Panduit SC8-50-S10-C0 Videos | Click to View |
