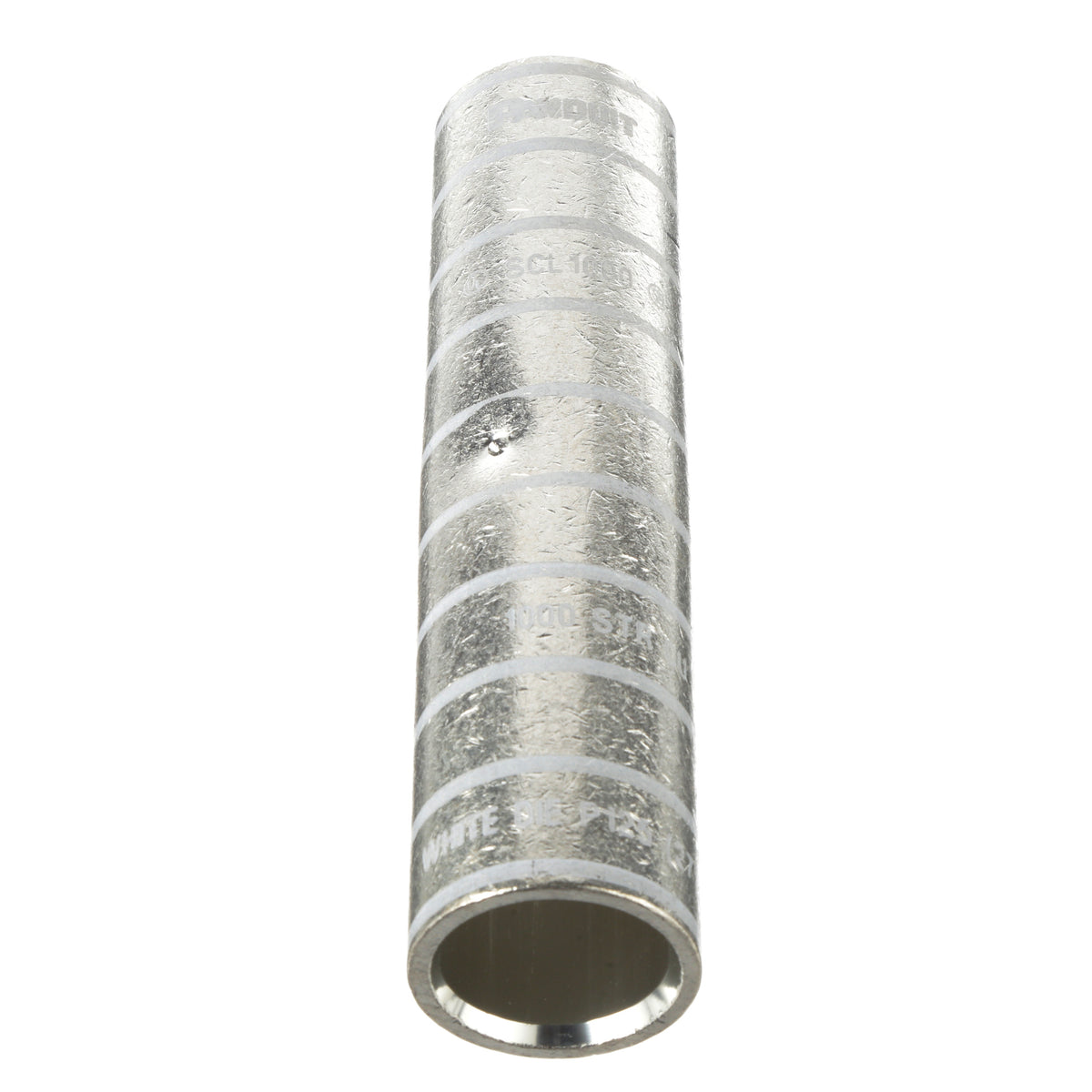

Panduit SCL1000-3 | Pan-Lug Comp. Splice, Tin-Plated Copper, PK3
Description
Description
Our long barrel butt splice delivers superior pull-out strength and reliable connections for a broader range of wires, ideal for high-demand electrical applications.
Copper long barrel butt splice, 1000 kcmil cable.
Panduit Pan-Term Splices are designed and manufactured for fast assembly, and long reliable performance. As the demand for splices increases, it becomes essential to provide a complete system for termination products. We provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
Panduit Pan-Lug Pan-Term Butt Splice, Compression, Series: SCL, Stranded Copper Conductor, 1000 kcmil Conductor, 6.12 in Length, Long Seamless Barrel, 1.173 in ID x 1.5 in OD Barrel, 35 kV, Specifications: 3 in L Wire Strip, 90 deg C, Copper, White, Electro Plated Tin
Panduit - SCL1000-3 - Features
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Internal wire stops to prevent over insertion of conductor
- Tin plated to inhibit corrosion
- Long barrel maximizes the number of crimps and provides premium wire pull out strength and electrical performance
- Premium pull out strength
- Long barrel maximizes the number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Internal wire stops to prevent over-insertion of conductor
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
Specifications
Specifications
Panduit - SCL1000-3 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SCL1000-3 |
| Indoor/Outdoor | Indoor/Outdoor |
| Termination/Splice | Splice |
| UNSPSC Code | 39121400 |
| Product Type | Compression Splice |
| Base Material | Copper |
| Barrel Type | Long |
| Finish/Coating | Tin-Plated |
| Copper Code Conductor Size (kcmil) | 1000 |
| Insulation Material | Non-Insulated |
| Overall Length (In.) | 6.12 |
| Overall Length (mm) | 155.4 |
| Standards Met | UL Listed and CSA Certified to 35 kV and temperature rated to 90°C |
| UL Temperature Rating (°C) | 90 |
| CSA Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | White |
| Burndy Die Index Number | 27 |
| Panduit Die Index Number | P125 |
| T & B Die Index Number | 125 |
| Wire Strip Length (In.) | 3 |
| Wire Strip Length (mm) | 76.2 |
| Sub Brand | Pan-Lug |
| UPC | 07498390490 |
Panduit - SCL1000-3 - Videos
| Panduit SCL1000-3 Video 1 | Click to View |
|---|
