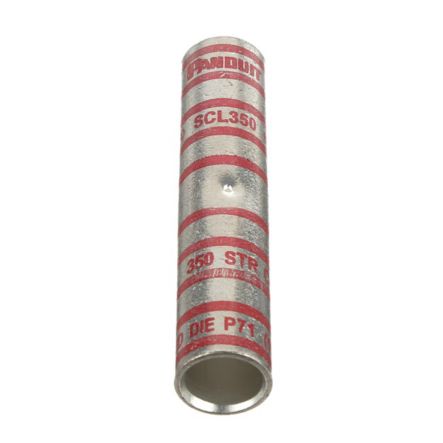

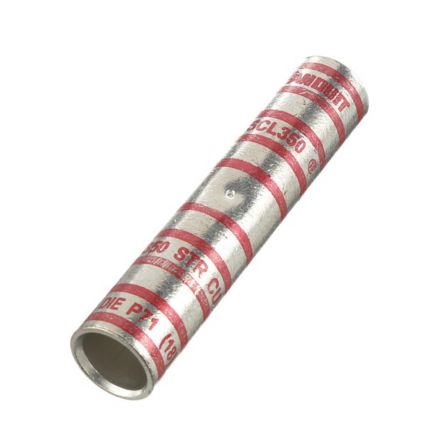

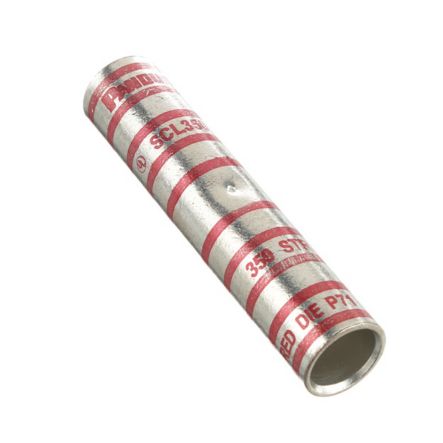

Panduit SCL350-X | Copper long barrel butt splice, 350 kcmil cable.
Regular price
$19.78
Unit price
Brand: Panduit
|
SKU:
SCL350-X
Regular price
$19.78
Unit price
Description
Description
Panduit SCL350-X | Pan-Lug SCL350-X Compression Connectors - Splices
Copper butt splice, long barrel, 350 kcmil cable.
Panduit - SCL350-X - Features
- Long barrel maximizes the number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Internal wire stops to prevent over-insertion of conductor
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
Specifications
Specifications
Panduit - SCL350-X - Product Categories
- Wire Termination
- Splices
Panduit - SCL350-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SCL350-X |
| Item Description | Pan-Lug SCL350-X Compression Connectors - Splices |
| Product Type | Compression Connectors - Splices |
| Sub Brand | Pan-Lug |
| Copper Code Conductor Size (kcmil) | 350 |
| Barrel Type | Long |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Standards Met | UL Listed for Power and Grounding Applications in the U.S. and Canada; Meets UL467 Requirements for Grounding |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Burndy Die Index Number | 18 |
| Panduit Die Index Number | P71 |
| Overall Length (In.) | 4.12 |
| Overall Length (mm) | 104.6 |
| Wire Strip Length (In.) | 2 |
| Wire Strip Length (mm) | 50.8 |
| UL Temperature Rating (°C) | 90 |
| CSA Temperature Rating (°C) | 90 |
| Part Features | color coded barrel, internal wire stops,tin plated to inhibit corrosion, premium pull out strength,NEBS |
Panduit - SCL350-X - Package Information
| UPC | 07498390455 |
|---|---|
| Standard Pkg. Qty. | 10 |
| Standard Package Volume (cf) | 0.0528 |
| Standard Ctn. Qty. | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - SCL350-X - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
