Panduit SCL4/0-X | Pan-Lug Comp. Splice, Long, 4/0, Tin-Plated Copp...
Description
Description
Our long barrel butt splice delivers superior pull-out strength and reliable connections for a broader range of wires, ideal for high-demand electrical applications.

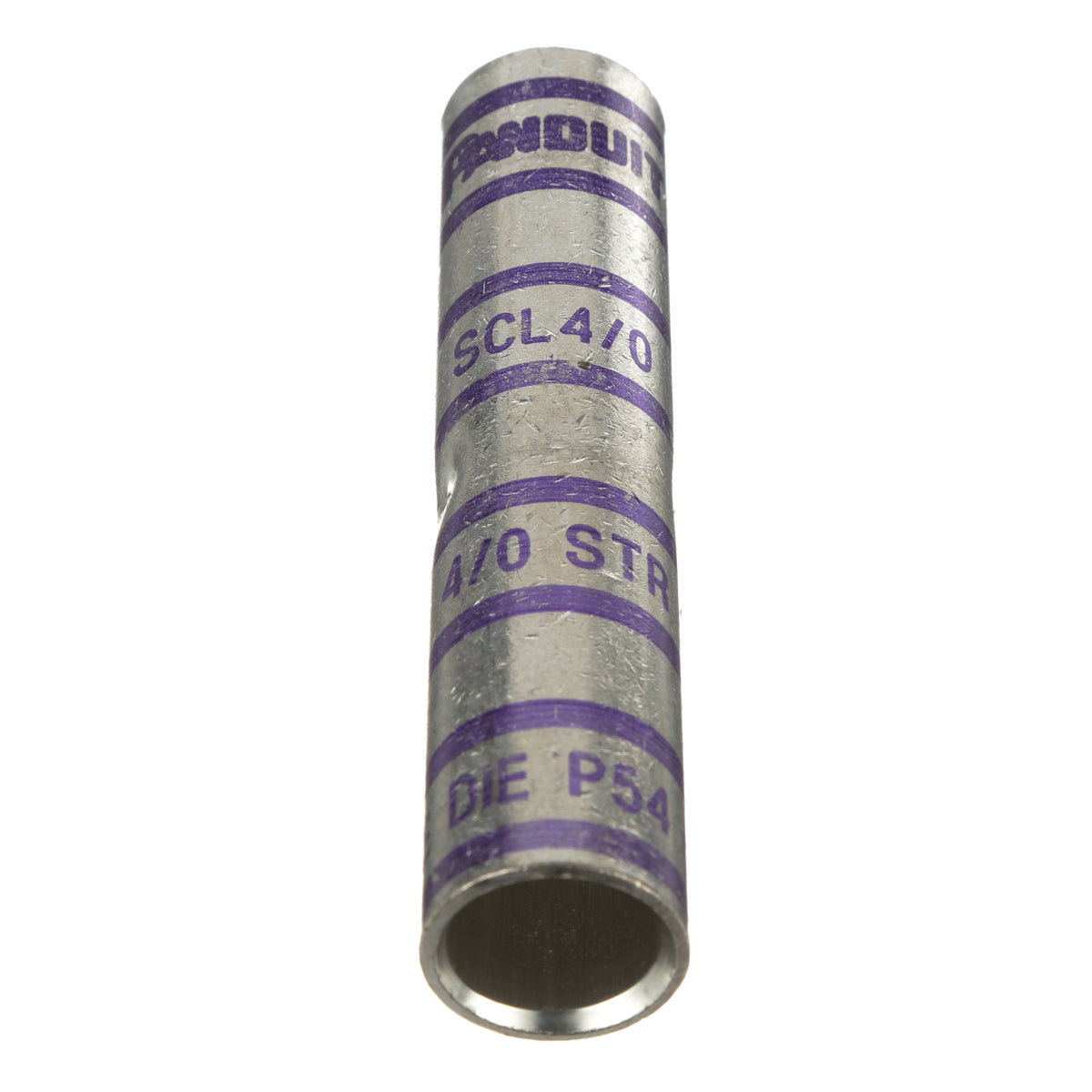

Copper butt splice, long barrel, 4/0 AWG wire.
Panduit Pan-Term Splices are designed and manufactured for fast assembly, and long reliable performance. As the demand for splices increases, it becomes essential to provide a complete system for termination products. We provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
Panduit Pan-Lug Pan-Term Butt Splice, Compression, Series: SCL, Stranded Copper Conductor, 4/0 AWG Conductor, 3.37 in Length, Long Seamless Barrel, 0.57 in ID x 0.71 in OD Barrel, 35 kV, Specifications: 1-5/8 in L Wire Strip, 90 deg C, Copper, Purple, Electro Plated Tin
Panduit - SCL4/0-X - Features
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Internal wire stops to prevent over insertion of conductor
- Tin plated to inhibit corrosion
- Long barrel maximizes the number of crimps and provides premium wire pull out strength and electrical performance
- Premium pull out strength
- Long barrel maximizes the number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Internal wire stops to prevent over-insertion of conductor
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
Specifications
Specifications
Panduit - SCL4/0-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SCL4/0-X |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Product Type | Compression Splice |
| Base Material | Copper |
| Barrel Type | Long |
| Finish/Coating | Tin-Plated |
| Copper Code Conductor Size (AWG) | 4/0 |
| Insulation Material | Non-Insulated |
| Overall Length (In.) | 3.37 |
| Overall Length (mm) | 85.6 |
| Standards Met | UL Listed and CSA Certified to 35 kV and temperature rated to 90°C |
| UL Temperature Rating (°C) | 90 |
| CSA Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Purple |
| Burndy Die Index Number | 15 |
| Panduit Die Index Number | P54 |
| T & B Die Index Number | 54 |
| Wire Strip Length (In.) | 1-5/8 |
| Wire Strip Length (mm) | 41.3 |
| Sub Brand | Pan-Lug |
| Part Features | color coded barrel, internal wire stops,tin plated to inhibit corrosion, premium pull out strength,NEBS |
| UPC | 07498390440 |
