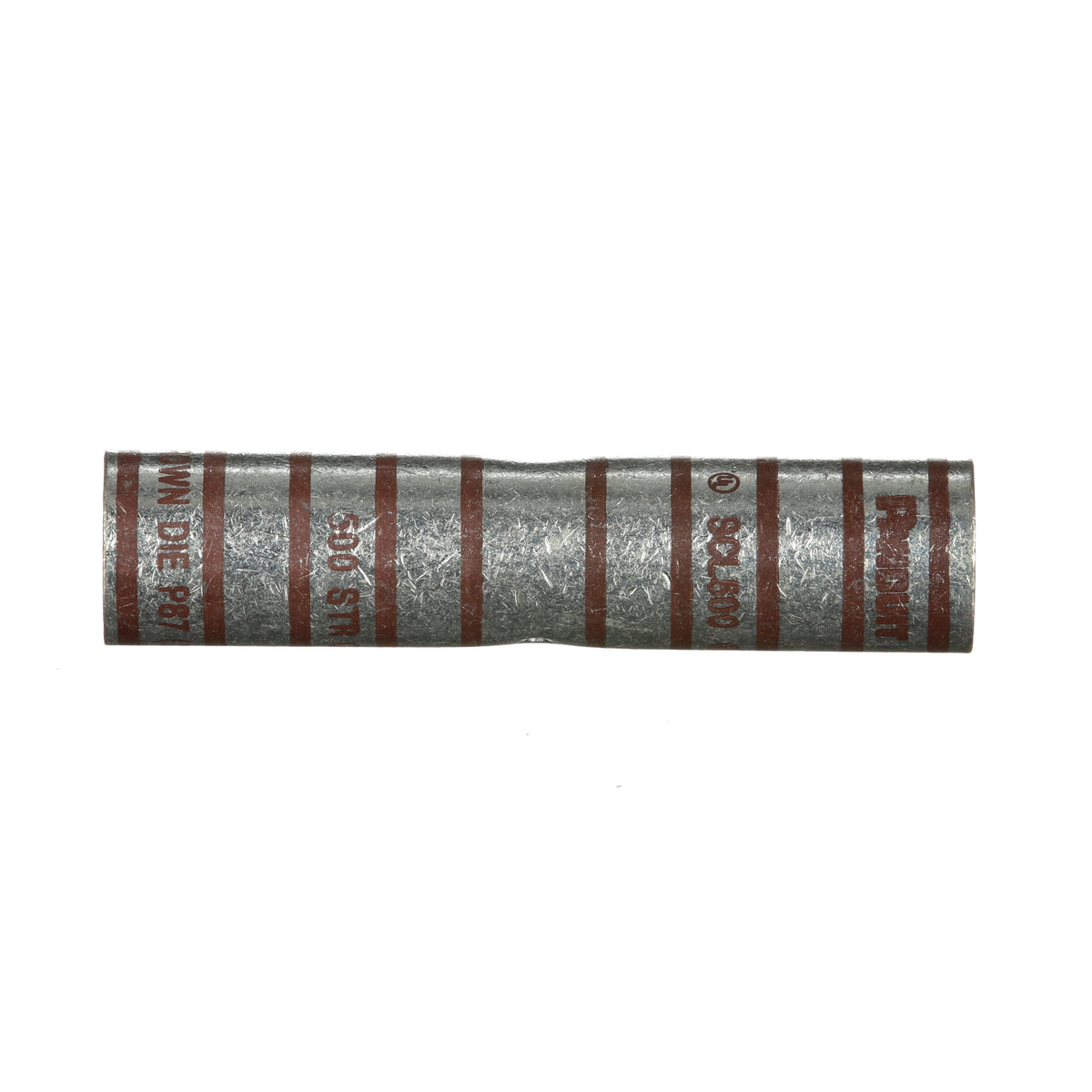

Panduit SCL500-6 | Pan-Lug Comp. Splice, 500, Long, Tin-Plated Copper, PK6
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SCL500-6 | Pan-Lug Comp. Splice, 500, Long, Tin-Plated Copp...
Description
Description
Our long barrel butt splice delivers superior pull-out strength and reliable connections for a broader range of wires, ideal for high-demand electrical applications.
Copper butt splice, long barrel, 500 kcmil cable.
Panduit Pan-Term Splices are designed and manufactured for fast assembly, and long reliable performance. As the demand for splices increases, it becomes essential to provide a complete system for termination products. We provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
Panduit Pan-Lug Pan-Term Butt Splice, Compression, Series: SCL, Stranded Copper Conductor, 500 kcmil Conductor, 4.62 in Length, Long Seamless Barrel, 0.84 in ID x 1.059 in OD Barrel, 35 kV, Specifications: 2-1/4 in L Wire Strip, 90 deg C, Copper, Brown, Electro Plated Tin
Panduit - SCL500-6 - Features
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Internal wire stops to prevent over insertion of conductor
- Tin plated to inhibit corrosion
- Long barrel maximizes the number of crimps and provides premium wire pull out strength and electrical performance
- Premium pull out strength
- Long barrel maximizes the number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Internal wire stops to prevent over-insertion of conductor
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
Specifications
Specifications
Panduit - SCL500-6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SCL500-6 |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Product Type | Compression Splice |
| Base Material | Copper |
| Barrel Type | Long |
| Finish/Coating | Tin-Plated |
| Copper Code Conductor Size (kcmil) | 500 |
| Insulation Material | Non-Insulated |
| Overall Length (In.) | 4.62 |
| Overall Length (mm) | 117.3 |
| Standards Met | UL Listed and CSA Certified to 35 kV and temperature rated to 90°C |
| UL Temperature Rating (°C) | 90 |
| CSA Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Brown |
| Burndy Die Index Number | 20 |
| Panduit Die Index Number | P87 |
| T & B Die Index Number | 87 |
| Wire Strip Length (In.) | 2-1/4 |
| Wire Strip Length (mm) | 54 |
| Sub Brand | Pan-Lug |
| Part Features | color coded barrel, internal wire stops,tin plated to inhibit corrosion, premium pull out strength,NEBS |
| UPC | 07498390465 |
