Brand: Panduit
|
SKU:
SCMS95-Q
Panduit SCMS95-Q | Pan-Lug SCMS95-Q Compression Connectors - Splices
Regular price
$176.73
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SCMS95-Q | Pan-Lug SCMS95-Q Compression Connectors - Splices
Regular price
$176.73
Unit price
Description
Description
Panduit SCMS95-Q | Pan-Lug SCMS95-Q Compression Connectors - Splices

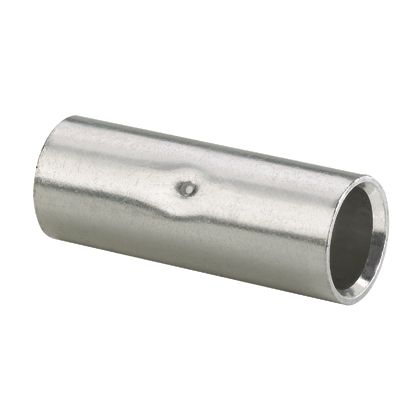

Copper metric butt splice, standard barrel, 95mm² wire.
Specifications
Specifications
Panduit - SCMS95-Q - Product Categories
- Wire Termination
- Splices
Panduit - SCMS95-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SCMS95-Q |
| Item Description | Pan-Lug SCMS95-Q Compression Connectors - Splices |
| Product Type | Compression Splice |
| Sub Brand | Pan-Lug |
| Metric Class 2r Copper Conductor Size (mm²) | 95 |
| Metric Class 5f-6f Copper Conductor Size (mm²) | 70 |
| Barrel Type | Standard |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Standards Met | UL Listed, CSA Certified, CE and tested per EN 61238-1:2003/IEC 61238-1:2003 Class B, with Class 2r wire 10mm² - 630mm²., UKCA compliant |
| Barrel Length (In.) | 2.12 |
| Barrel Length (mm) | 54 |
| Finish/Coating | Tin-Plated |
| Color Code | Purple |
| Panduit Die Index Number | P54 |
| Overall Length (In.) | 2.12 |
| Overall Length (mm) | 54 |
| Wire Strip Length (mm) | 28.5 |
| UL Temperature Rating (°C) | 90 |
| CSA Temperature Rating (°C) | 90 |
Brand Name - SCMS95-Q - Package Information
| UPC | 07498376990 |
|---|---|
| Standard Package Quantity | 25 |
| Standard Package Volume (cf) | 0.0461 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
