Panduit SCS1000-3 | Compression Connectors - Splices | UPC - 074983...
Description
Description
Panduit Pan-Term Splices are designed and manufactured for fast assembly, and long reliable performance. As the demand for splices increases, it becomes essential to provide a complete system for termination products. We provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.

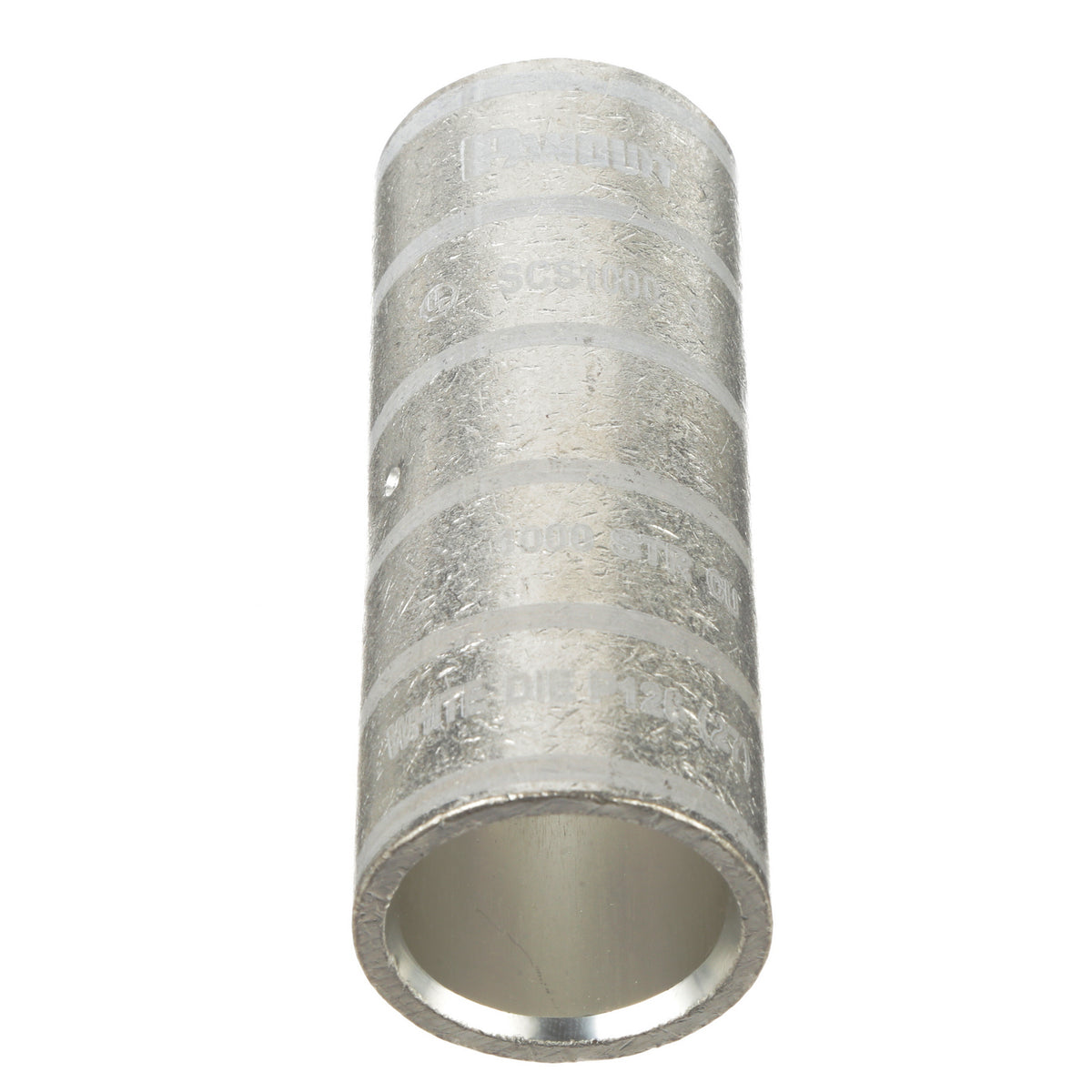

Panduit Pan-Lug Pan-Term Butt Splice, Compression, Series: SCS, Stranded Copper Conductor, 1000 kcmil Conductor, 3.87 in Length, 1.17 in ID x 1.5 in OD Barrel, 35 kV, Specifications: 1-7/8 in L Wire Strip, Standard Barrel Configuration, 90 deg C, Copper, White, Electro Plated Tin
Features + Benefits
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Internal wire stops to prevent over insertion of conductor
- Tin plated to inhibit corrosion
Panduit SCS1000-3 | Compression Connectors - Splices | UPC - 07498390390 Key Specs
| Product Type | Compression Connectors - Splices |
| Sub Brand | Pan-Lug |
| Copper Conductor Size (AWG) | 11/3 |
| Copper Conductor Size (kcmil) | 1000 |
| Color Code | White |
| Burndy Die Index Number | 27 |
| Panduit Die Index Number | P125 |
| Overall Length (In.) | 3.87 |
| Overall Length (mm) | 98.3 |
| Wire Strip Length (mm) | 47.6 |
Panduit SCS1000-3 | Compression Connectors - Splices | UPC - 07498390390 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - SCS6-L Product Page | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
| Part Drawings | SCS Standard Barrel 300 Kcmil - 1000 Kcmil Copper Splices | Download and View |
Panduit SCS1000-3 | Compression Connectors - Splices | UPC - 07498390390 Environmental Information
| Panduit's RoHS Statement | Download and View |
