Brand: Panduit
|
SKU:
330371-EA
Panduit SCS2/0-X | Pan-Lug SCS2/0-X Comp. Splice, 2/0, Tin-Plated Copper, PK10
Regular price
$10.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SCS2/0-X | Pan-Lug SCS2/0-X Comp. Splice, 2/0, Tin-Plated C...
Regular price
$10.81
Unit price
Description
Description

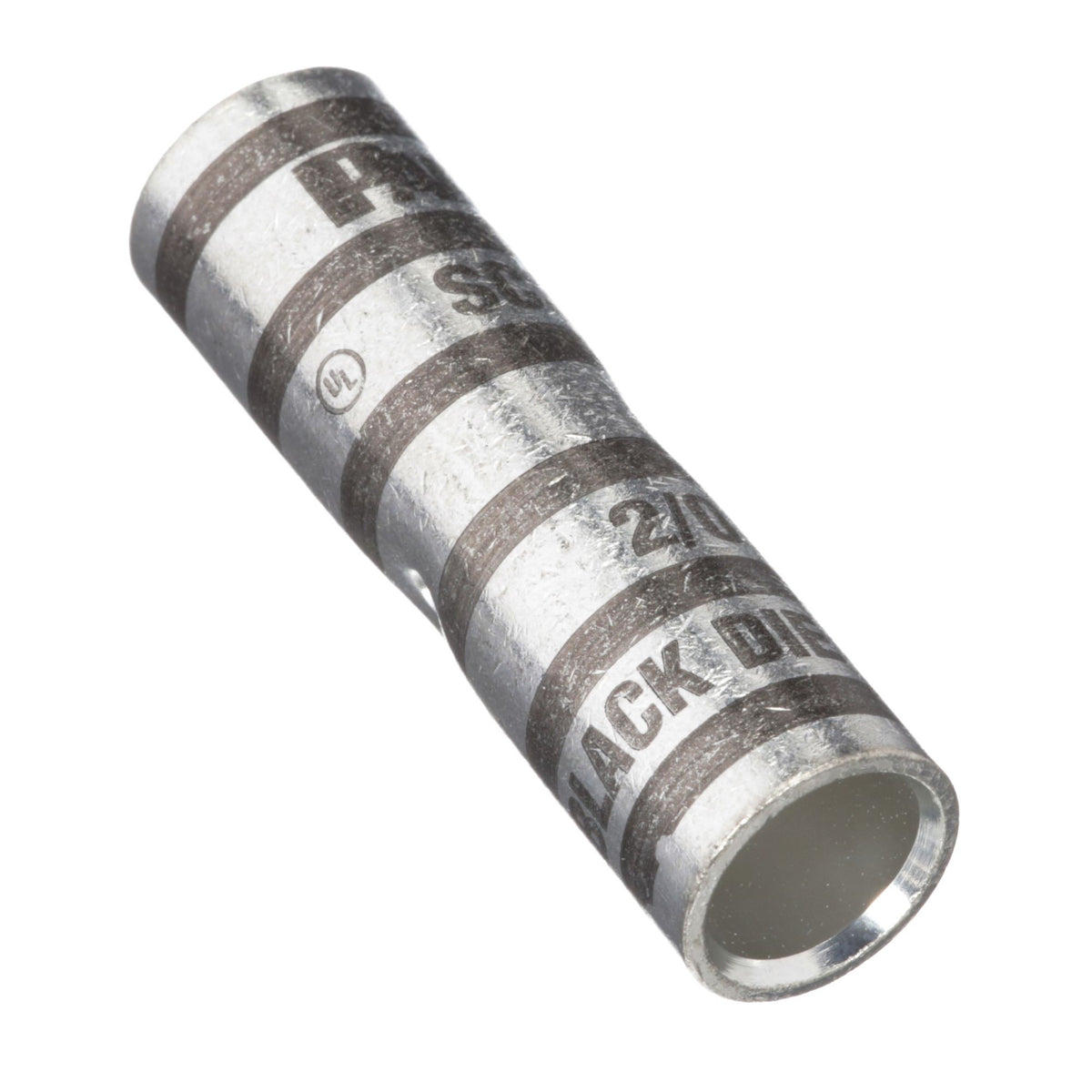

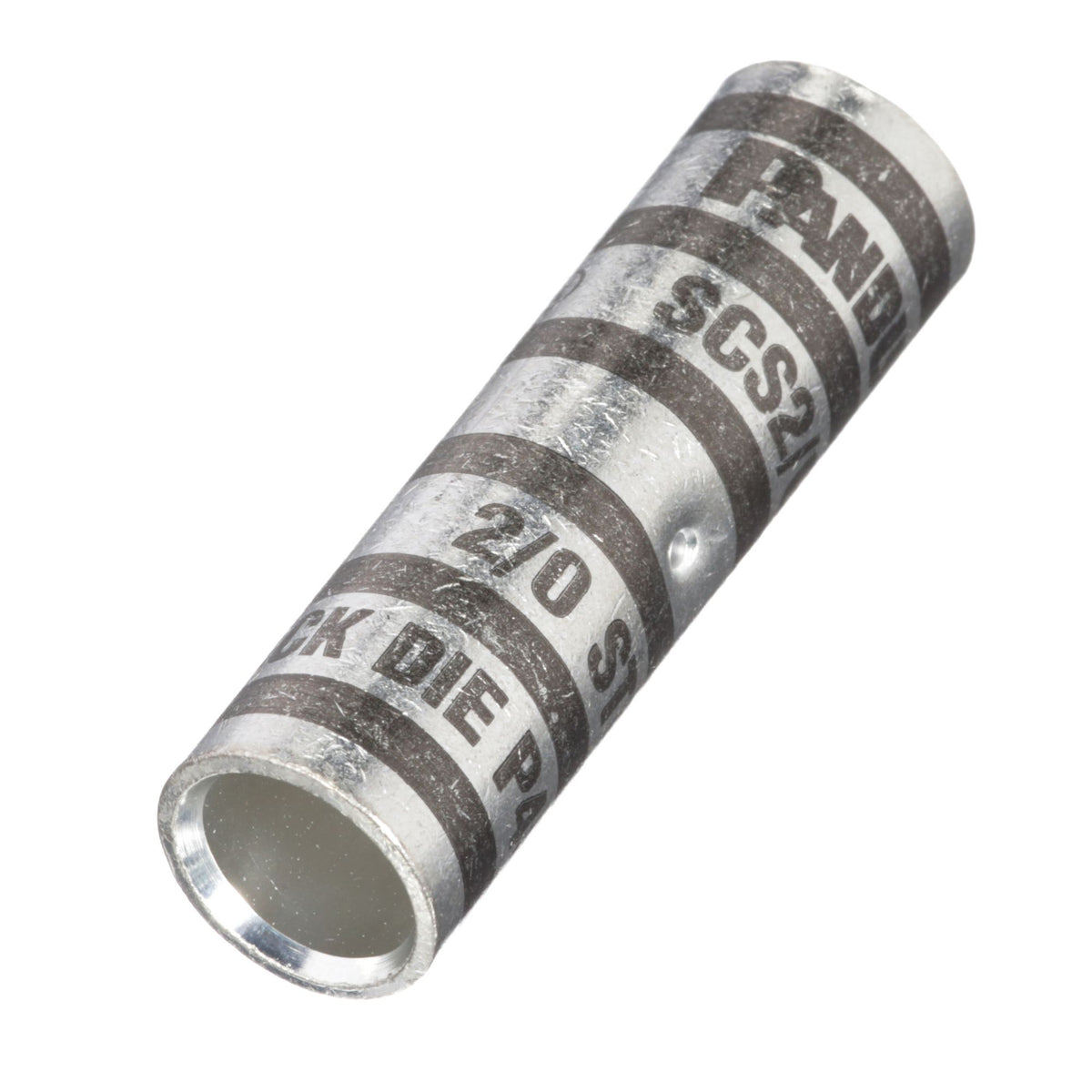

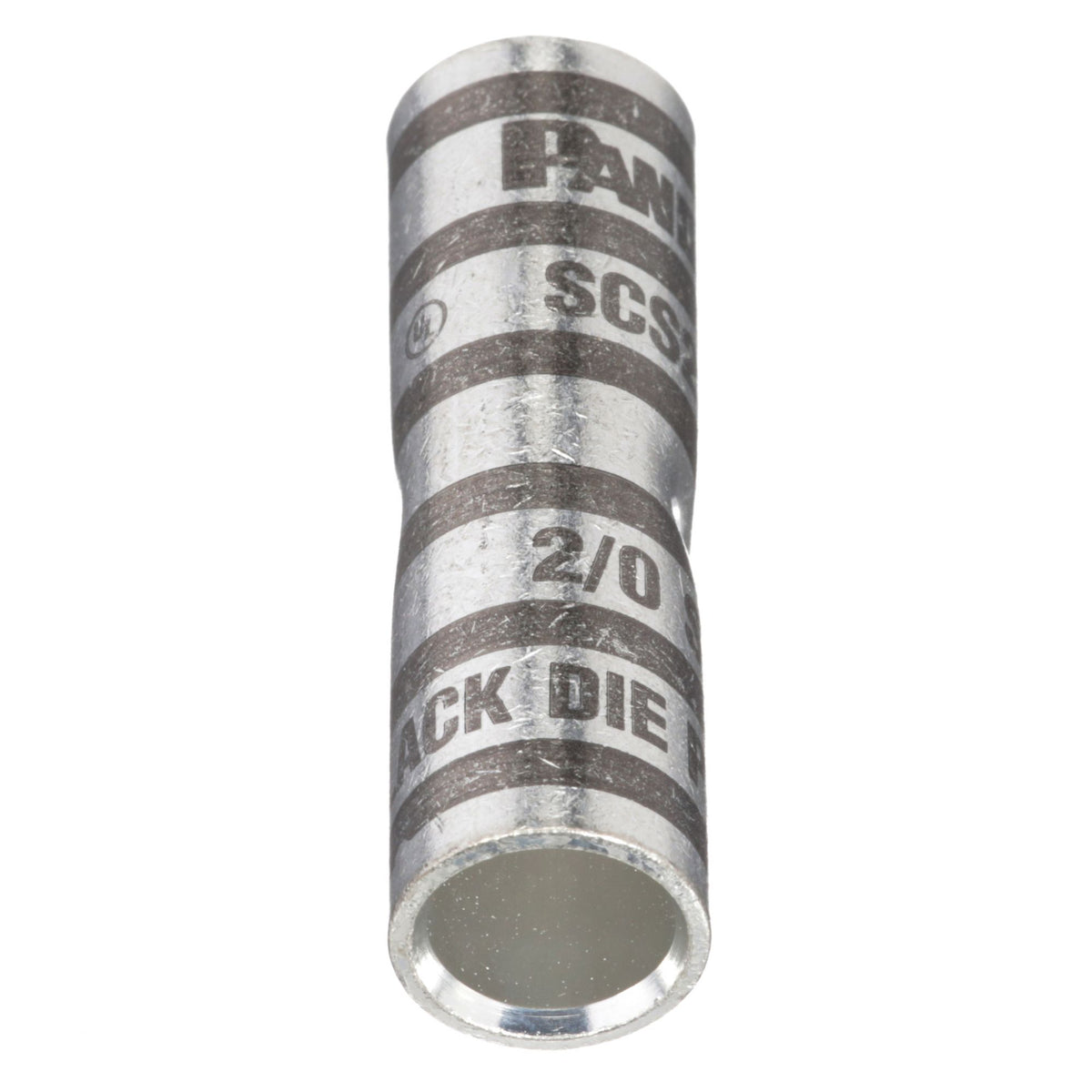

Panduit SCS2/0-X | Pan-Lug SCS2/0-X Comp. Splice, 2/0, Tin-Plated Copper, PK10
Copper butt splice, standard barrel, 2/0 AWG wire.
Panduit - Butt splice - SCS2/0-X.
Specifications
Specifications
Panduit - SCS2/0-X - Product Categories
- Wire Termination
- Splices
Panduit - SCS2/0-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SCS2/0-X |
| Item Description | Pan-Lug SCS2/0-X Comp. Splice, 2/0, Tin-Plated Copper, PK10 |
| Product Type | Compression Connectors - Splices |
| Sub Brand | Pan-Lug |
| Copper Conductor Size (AWG) | 167.81 |
| Copper Conductor Size (kcmil) | 167.81 |
| Barrel Type | Standard |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Standards Met | UL listed and CSA certified |
| Finish/Coating | Tin-Plated |
| Color Code | Black |
| Burndy Die Index Number | 13 |
| Panduit Die Index Number | P45 |
| T & B Die Index Number | 45 |
| Overall Length (In.) | 2 |
| Overall Length (mm) | 50.8 |
| Wire Strip Length (In.) | 15/16 |
| Wire Strip Length (mm) | 23.8 |
| UL Temperature Rating (°C) | 90 |
| Part Features | color coded barrel, internal wire stops,tin plated to inhibit corrosion,NEBS Level 3 |
Panduit - SCS2/0-X - Package Information
| UPC | 07498390330 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0184 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - SCS2/0-X - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
