Brand: Panduit
|
SKU:
330372

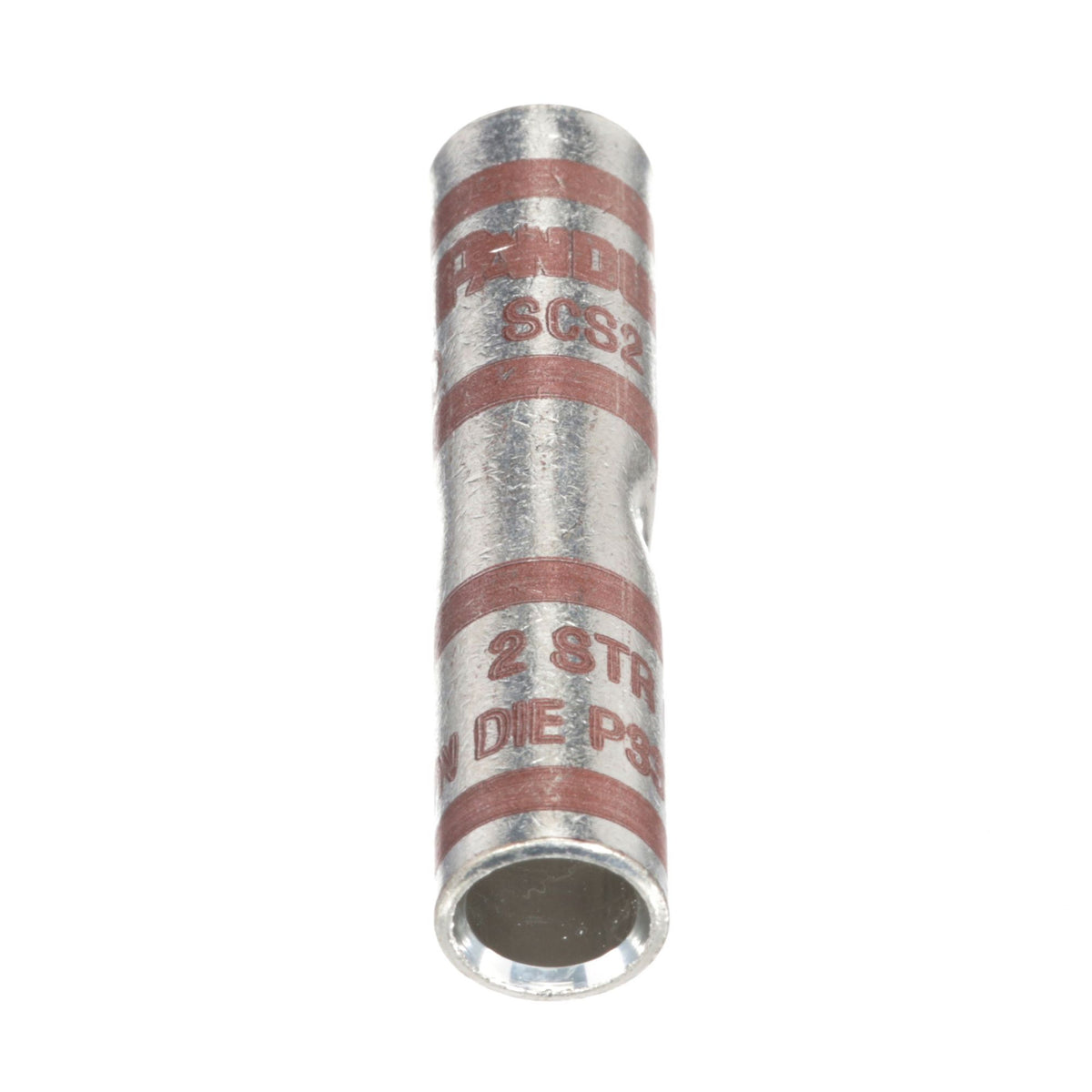

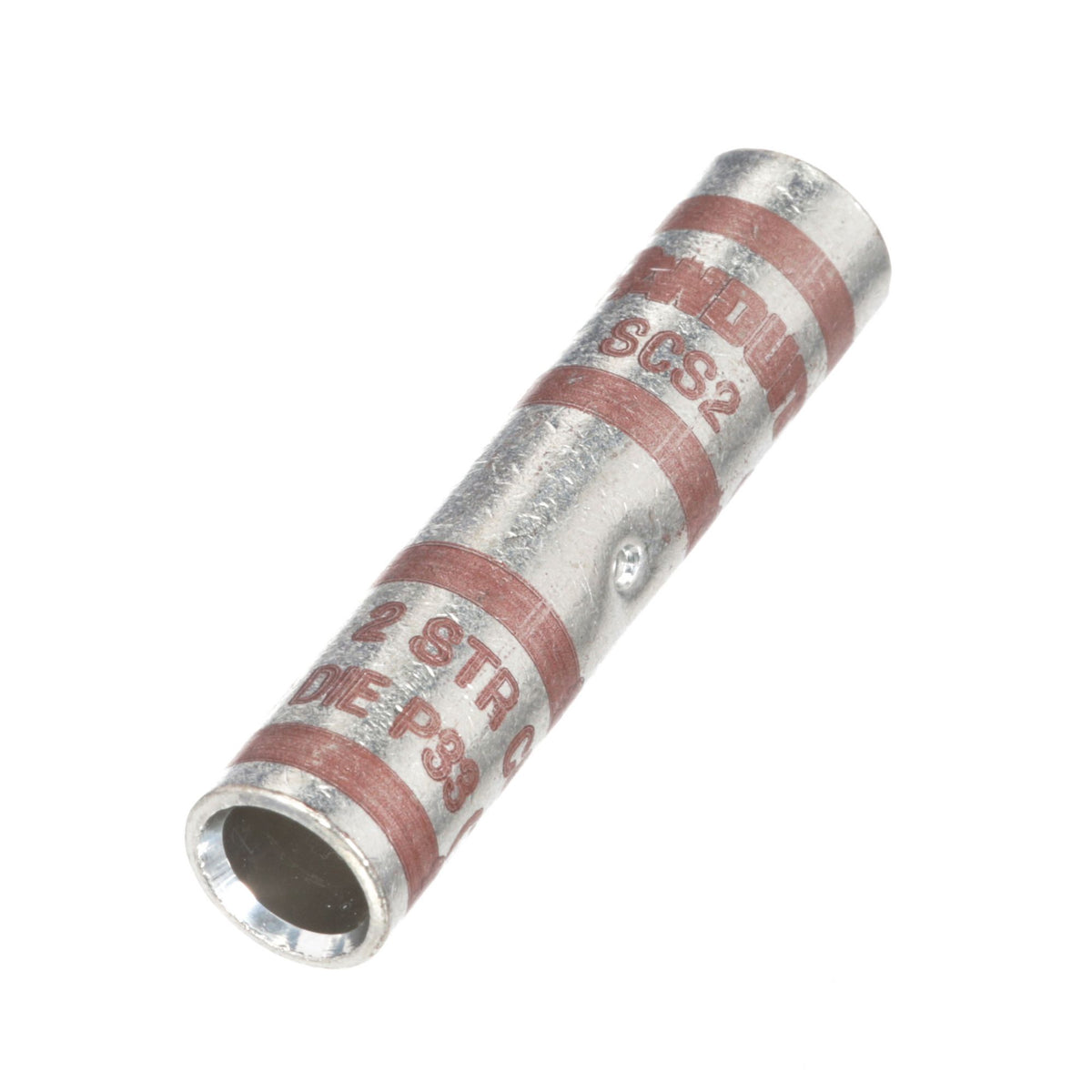

Panduit SCS2-Q | Pan-Lug SCS2-Q Comp. Splice, Tin Plt Copper, PK25
Regular price
$160.21
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SCS2-Q | Pan-Lug SCS2-Q Comp. Splice, Tin Plt Copper, PK25
Regular price
$160.21
Unit price
Description
Description
Panduit SCS2-Q | Pan-Lug SCS2-Q Comp. Splice, Tin Plt Copper, PK25
The SCS2-Q Copper Compression Lug Lug, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
Panduit - Butt splice - brown - SCS2-Q.
Specifications
Specifications
Panduit - SCS2-Q - Product Categories
- Wire Termination
- Splices
Panduit - SCS2-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SCS2-Q |
| Item Description | Pan-Lug SCS2-Q Comp. Splice, Tin Plt Copper, PK25 |
| Product Type | Compression Connectors - Splices |
| Sub Brand | Pan-Lug |
| Copper Code Conductor Size (AWG) | 2 |
| Barrel Type | Standard |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Standards Met | UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C |
| Finish/Coating | Tin-Plated |
| Color Code | Brown |
| Burndy Die Index Number | 10 |
| Panduit Die Index Number | P33 |
| Overall Length (In.) | 1.87 |
| Overall Length (mm) | 47.49 |
| Wire Strip Length (In.) | 7/8 |
| Wire Strip Length (mm) | 22.2 |
| UL Temperature Rating (°C) | 90 |
| Part Features | color coded barrel, internal wire stops,tin plated to inhibit corrosion,NEBS Level 3 |
Panduit - SCS2-Q - Package Information
| UPC | 07498390315 |
|---|---|
| Standard Package Quantity | 25 |
| Standard Package Volume (cf) | 0.0328 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - SCS2-Q - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
