Brand: Panduit
|
SKU:
PAN-SCS4/0
Panduit SCS4/0-X | Pan-Lug SCS4/0-X Comp. Splice, 4/0, Tin-Plated Copper, PK10
Regular price
$13.05
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SCS4/0-X | Pan-Lug SCS4/0-X Comp. Splice, 4/0, Tin-Plated C...
Regular price
$13.05
Unit price
Description
Description

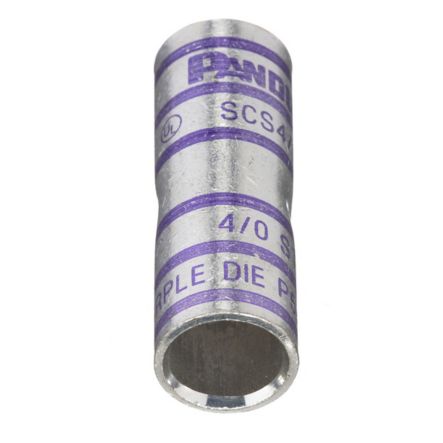

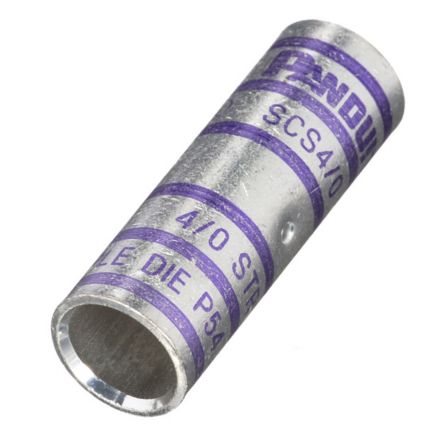

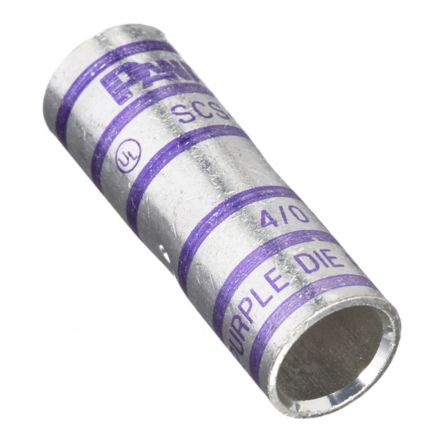

Panduit SCS4/0-X | Pan-Lug SCS4/0-X Comp. Splice, 4/0, Tin-Plated Copper, PK10
Copper butt splice, standard barrel, 4/0 AWG wire.
Panduit - SCS4/0-X - Features
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Internal wire stops to prevent over-insertion of conductor
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - SCS4/0-X - Product Categories
- Wire Termination
- Splices
Panduit - SCS4/0-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SCS4/0-X |
| Item Description | Pan-Lug SCS4/0-X Comp. Splice, 4/0, Tin-Plated Copper, PK10 |
| Product Type | Compression Connectors - Splices |
| Sub Brand | Pan-Lug |
| Copper Code Conductor Size (AWG) | 4/0 |
| Barrel Type | Standard |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Purple |
| Burndy Die Index Number | 15 |
| Panduit Die Index Number | P54 |
| T & B Die Index Number | 54 |
| Overall Length (In.) | 2.12 |
| Overall Length (mm) | 53.8 |
| Wire Strip Length (In.) | 1 |
| Wire Strip Length (mm) | 25.4 |
| UL Temperature Rating (°C) | 90 |
| Part Features | color coded barrel, internal wire stops,tin plated to inhibit corrosion,NEBS Level 3 |
Panduit - SCS4/0-X - Package Information
| UPC | 07498390340 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0184 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - SCS4/0-X - Videos
| Video 1 | Click to View |
|---|
