Brand: Panduit
|
SKU:
330283

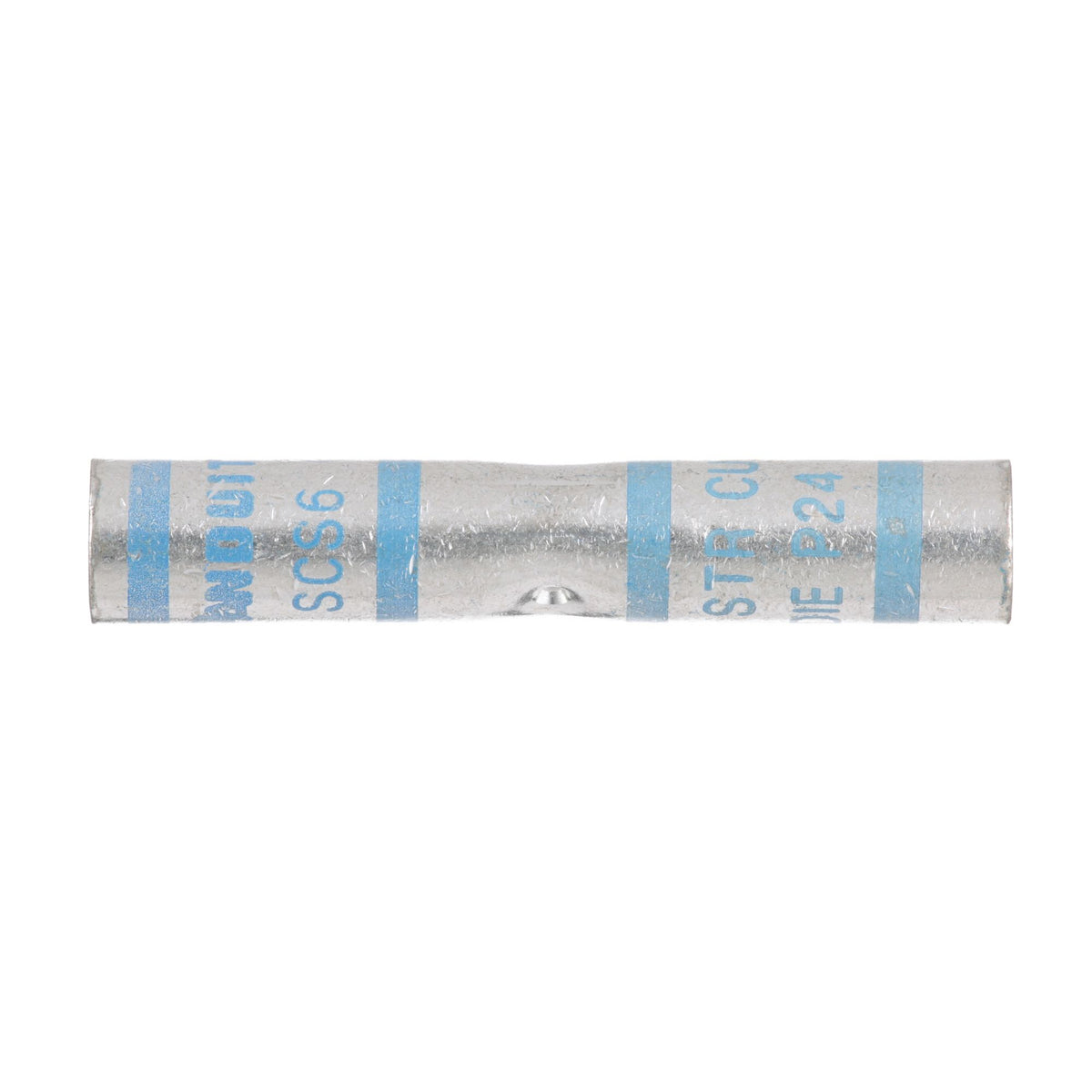

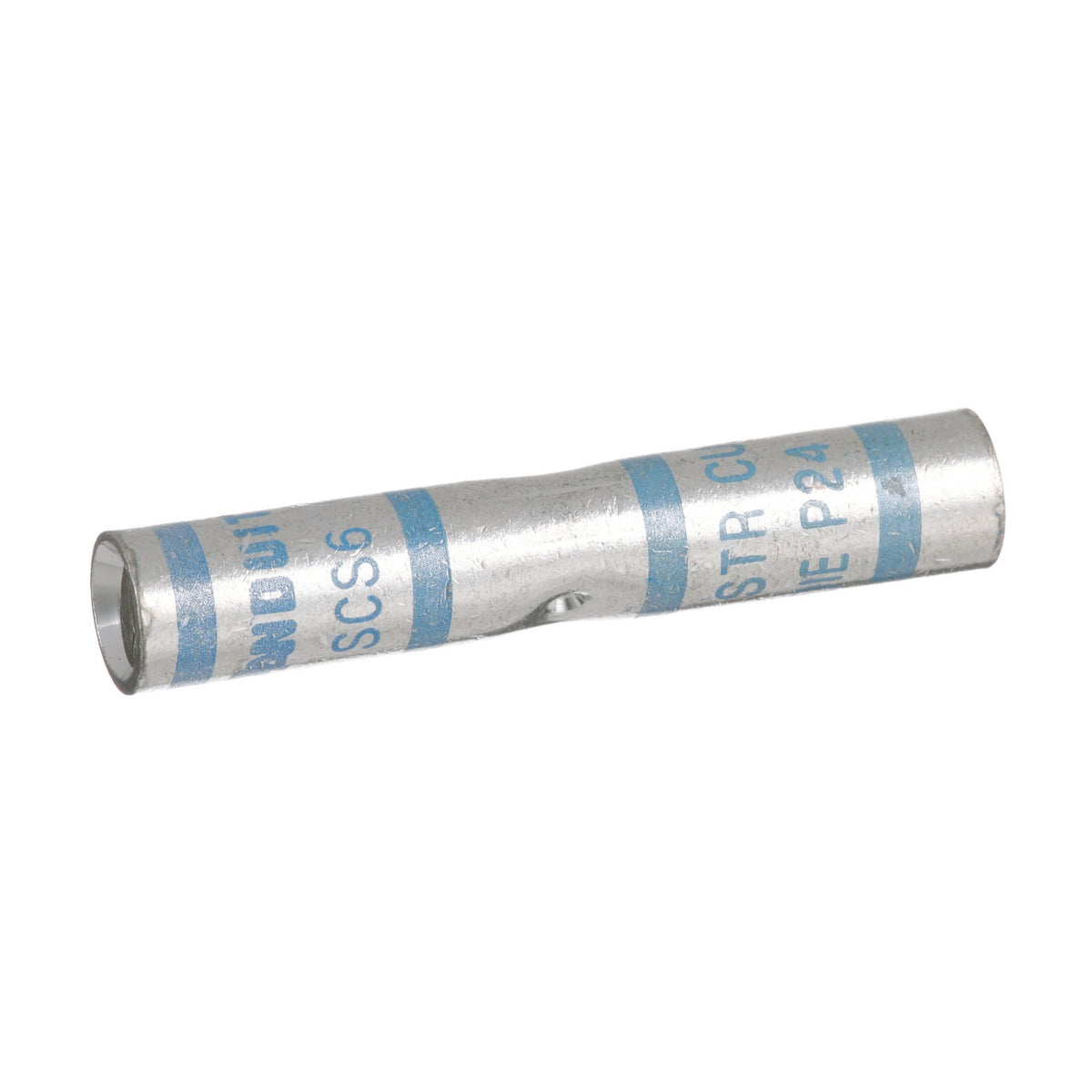

Panduit SCS6-L | Pan-Lug SCS6-L Comp. Splice, Standard, Tin Plt Copper, PK50
Regular price
$222.51
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SCS6-L | Pan-Lug SCS6-L Comp. Splice, Standard, Tin Plt Cop...
Regular price
$222.51
Unit price
Description
Description
Panduit SCS6-L | Pan-Lug SCS6-L Comp. Splice, Standard, Tin Plt Copper, PK50

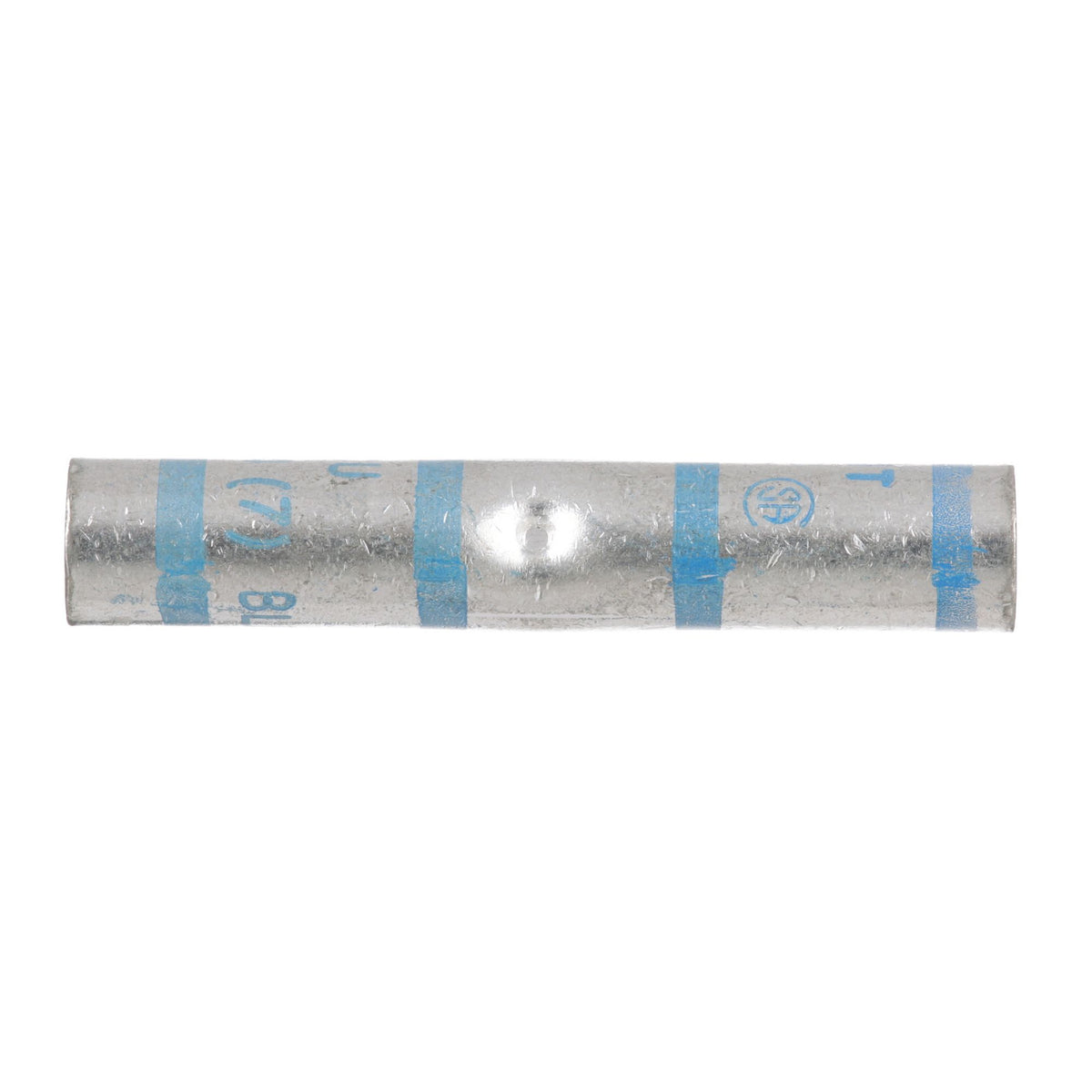

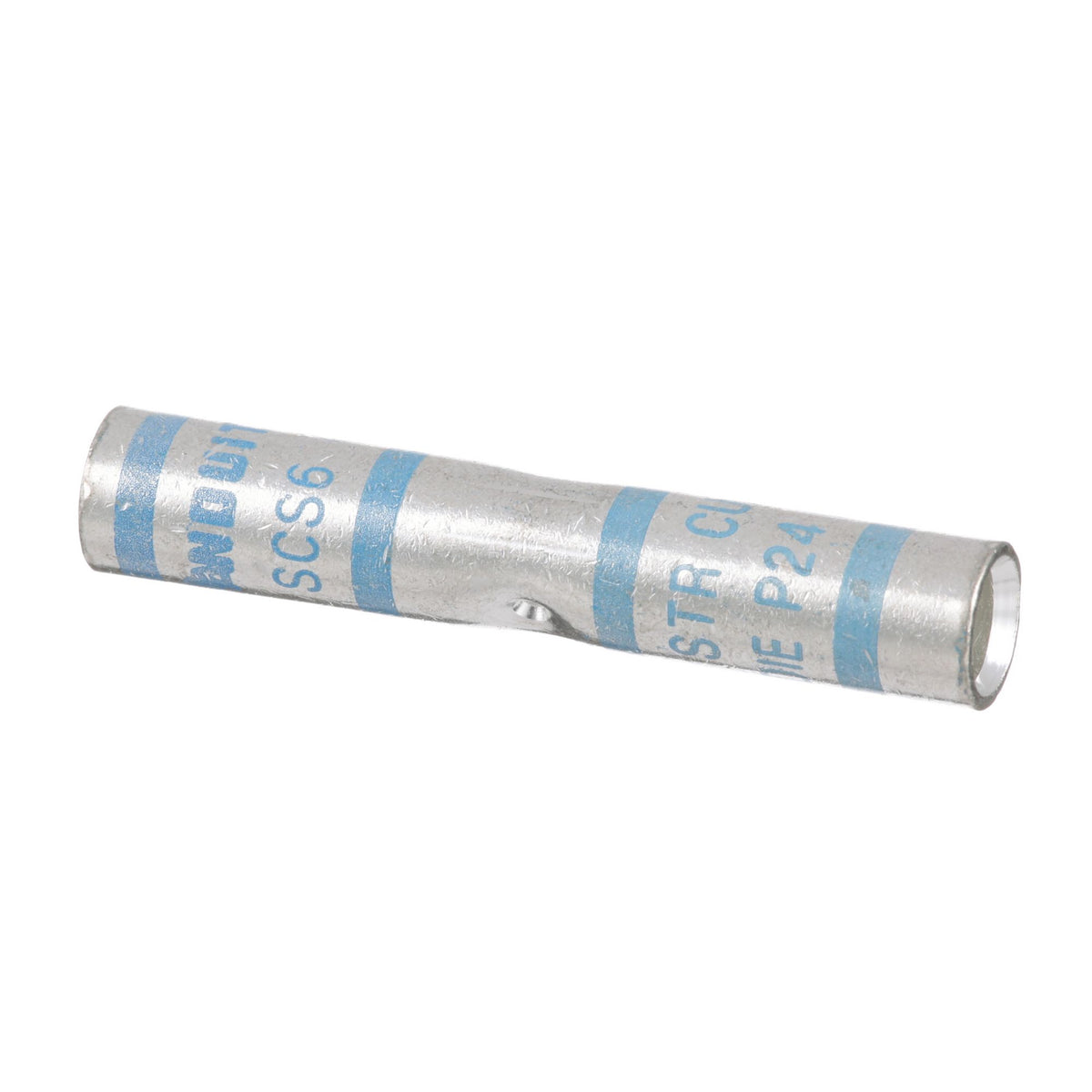

The SCS6-L Copper Compression Lug, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
Panduit - SCS6-L - Features
- Panduit - Butt splice - blue - SCS6-L.
- General Information
- Weight (lb)
- 1.23
Specifications
Specifications
Panduit - SCS6-L - Product Categories
- Wire Termination
- Splices
Panduit - SCS6-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SCS6-L |
| Item Description | Pan-Lug SCS6-L Comp. Splice, Standard, Tin Plt Copper, PK50 |
| Product Type | Compression Connectors - Splices |
| Sub Brand | Pan-Lug |
| Copper Code Conductor Size (AWG) | 6 |
| Barrel Type | Standard |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Standards Met | UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Burndy Die Index Number | 7 |
| Panduit Die Index Number | P24 |
| Overall Length (In.) | 1.75 |
| Overall Length (mm) | 44.45 |
| Wire Strip Length (In.) | 13/16 |
| Wire Strip Length (mm) | 20.6 |
| UL Temperature Rating (°C) | 90 |
| Part Features | color coded barrel, internal wire stops,tin plated to inhibit corrosion,NEBS Level 3 |
Panduit - SCS6-L - Package Information
| UPC | 07498390305 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0328 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
