Panduit SCSF2-E | Pan-Lug SCSF2-E Compression Connectors - Splices
Regular price
$14.50
Unit price
Brand: Panduit
|
SKU:
PAN-SCSF2-E
Regular price
$14.50
Unit price
Description
Description
Panduit SCSF2-E | Pan-Lug SCSF2-E Compression Connectors - Splices

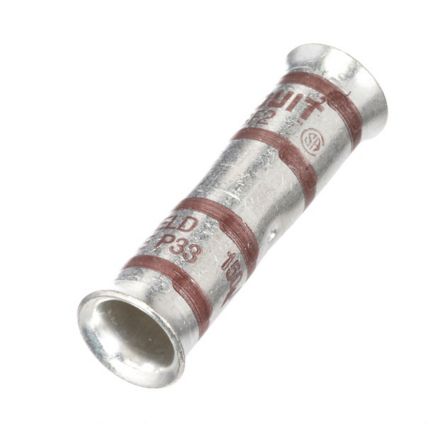

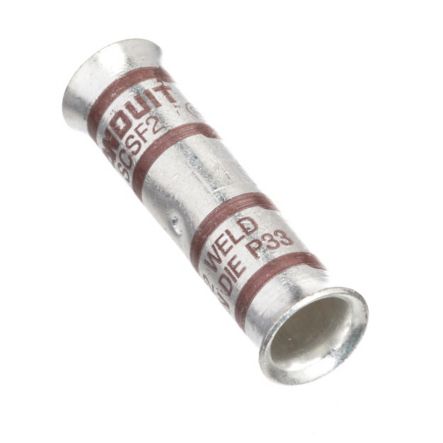

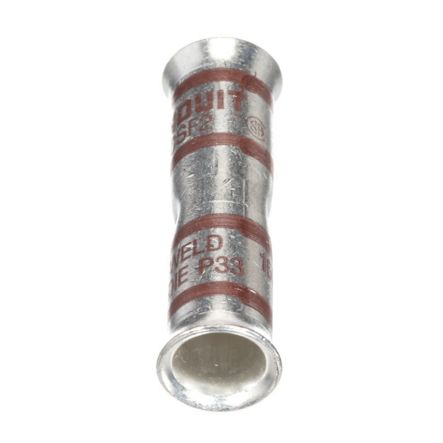

Copper butt splice, flared barrel, #2 AWG flex and locomotive cable.
Panduit - SCSF2-E - Features
- Can be used with flex conductor class: K, M, and Diesel Locomotive
- Flared entry prevents bent back strands when inserting fine strand conductor into barrel
- Color-coded barrels marked with PANDUIT die index numbers for proper crimp die selection
- Internal wire stops to prevent over-insertion of conductor
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT crimping tools and dies
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - SCSF2-E - Product Categories
- Wire Termination
- Splices
Panduit - SCSF2-E - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SCSF2-E |
| Item Description | Pan-Lug SCSF2-E Compression Connectors - Splices |
| Product Type | Compression Connectors - Splices |
| Sub Brand | Pan-Lug |
| Copper Conductor Size (AWG) | 66.37 |
| Copper Conductor Size (kcmil) | 66.37 |
| DLO Copper Flex Conductor Size (AWG) | 2 |
| Class K Copper Flex Conductor Size (AWG) | 2 |
| Class M Copper Flex Conductor Size (AWG) | 2 |
| Barrel Type | Standard |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Brown |
| Panduit Die Index Number | P33 |
| Overall Length (In.) | 1.87 |
| Overall Length (mm) | 47.5 |
| Wire Strip Length (mm) | 22.2 |
| UL Temperature Rating (°C) | 90 |
Panduit - SCSF2-E - Package Information
| UPC | 07498359980 |
|---|---|
| Standard Package Quantity | 20 |
| Standard Package Volume (cf) | 0.0312 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
