Panduit SD2EMI | PanelMax Shielded Duct, Black, Steel, 1.81"x7...
Description
Description
Innovative design enhances flexibility with our noise shield kit, reducing EMI/RFI noise. Easy installation and seamless integration with your wiring duct for excellent cable management.

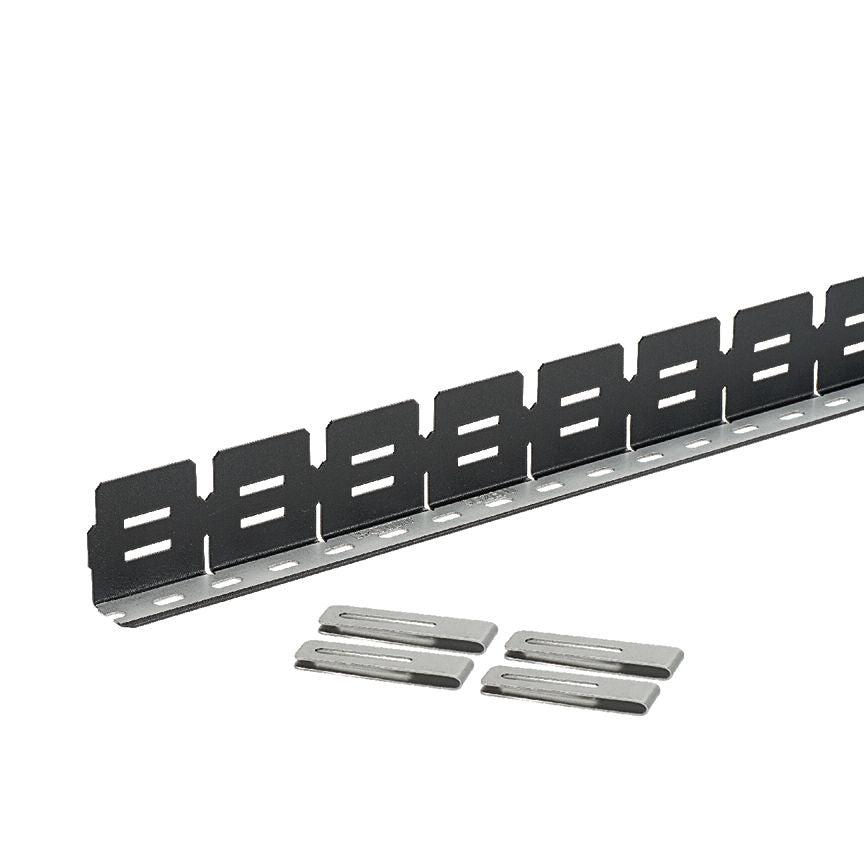

Panduct panelmax noise shield, EMI noise shield kit for 2" height panduit wiring duct, (2) 3 foot sections, bonding clips, and anti-oxidizing paste, steel, black.
Panduit Panduct Noise Shield, For Use With: 2 in H Wiring Duct, Specifications: 0.3 in Slot Pitch, Galvannealed Steel, Powder Coated with Zinc Plated Base, Black, 72 ft L x 0.96 in W x 1.81 in H
Panduit - SD2EMI - Features
- Reduces EMI/RFI noise between sensitive and noisy wiring for up to 20dB reduction in noise, or 90% NVR (equivalent to 6 in of air spacing)
- Innovative design installs easily within Panduit wiring duct or when mounted separately
- Delivering greater design flexibility to satisfy a wide range of applications
- Segmented design to be able to cut to shorter sections
- Horizontal Cable tie slots to allow wire bundling with the use of cable ties to optimize cable management
Specifications
Specifications
Panduit - SD2EMI - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SD2EMI |
| UNSPSC Code | 39120000 |
| Note | Reduces EMI/RFI noise between sensitive and noisy wiring fo rup to 20 dB reduction in noise. |
| Product Type | Noise Shield |
| Application | Wiring Duct Accessory - Slotted Divider Wall |
| Color | Black |
| Compatible Duct Height (In.) | 2 |
| Compatible Duct Height (mm) | 50.8 |
| Flammability Rating | UL94V-0 |
| Sub Brand | PanelMax |
| For Use With | Panduit Wiring Duct 2" in height |
| Standards Met | UL 508/508A |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 0.96 |
| Overall Width (mm) | 24.4 |
| Overall Height (In.) | 1.81 |
| Overall Height (mm) | 46.1 |
| Part Features | Reduces EMI/RFI noise between sensitive and noisy wiring for up to 20dB reduction in noise, or 90% NVR (equivalent to 6 inches of air spacing); innovative design installs easily within Panduit wiring duct or when mounted separately, delivering greater design flexibility to satisfy a wide range of applications. Segmented design to be able to cut to shorter sections. Horizontal Cable tie slots to allow wire bundling with the use of cable ties to optimize cable management. |
| UPC | 07498329116 |
Panduit - SD2EMI - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8538.90.8180 |
