Brand: Panduit
|
SKU:
PAN-SD2H6

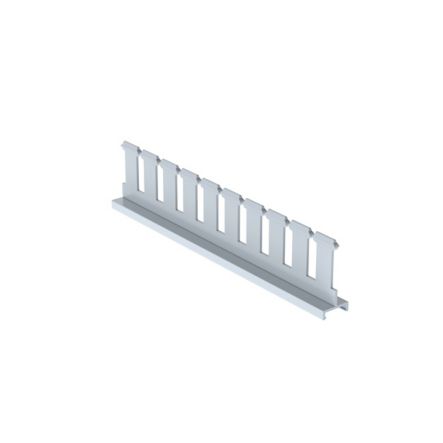

Panduit SD2H6 | Panduct SD2H6 Divider Wall, Lt Gray, PVC, 1.79"x0.75", 2" Duct H, PK6
Regular price
$25.06
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SD2H6 | Panduct SD2H6 Divider Wall, Lt Gray, PVC, 1.79"...
Regular price
$25.06
Unit price
Description
Description
Panduit SD2H6 | Panduct SD2H6 Divider Wall, Lt Gray, PVC, 1.79"x0.75", 2" Duct H, PK6
The SD2H6 Panduct Slotted PVC Divider Wall is constructed out of a general-purpose lead-free material for indoor applications. It has a UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Lead-free PVC. Compatible Duct Height 2" (50 mm). 1.79" x 0.75" x 6' length (45.4 mm x 19 mm x 1.8 m). Color Light Gray. 6 per package.
Panduit - SD2H6 - Features
- Slotted divider wall.
- Wiring duct divider wall can be mounted inside any type of Panduit(TM) PVC wiring duct to create multiple channels
- Simply install the divider wall base when mounting the duct and snap the divider wall onto the mounting base, DB-C
- All versions snap onto DB-C mounting base
- Divider wall heights 2"; and greater have a scoreline feature allowing sections to be removed leaving a smooth edge
- Meets UL508/508A insulation material requirement for barrier between conductors
- UL 94 flammability rating of V-0
Specifications
Specifications
Panduit - SD2H6 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct Accessories
Panduit - SD2H6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SD2H6 |
| Item Description | Panduct SD2H6 Divider Wall, Lt Gray, PVC, 1.79"x0.75", 2" Duct H, PK6 |
| Application | Wiring Duct Accessory - Slotted Divider Wall |
| Note | For installation of the divider, must use part number DB-C |
| Product Type | Slotted Divider Wall |
| Color | Light Gray |
| Compatible Duct Height (In.) | 2 |
| Compatible Duct Height (mm) | 50.8 |
| Flammability Rating | UL94 V-0 |
| Sub Brand | Panduct |
| For Use With | PVC Wiring Duct |
| Material | PVC |
| Standards Met | RoHS Compliant |
| Overall Height (In.) | 1.79 |
| Overall Height (mm) | 45.4 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 19 |
Panduit - SD2H6 - Package Information
| UPC | 07498374502 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.0330 |
| Standard. Ctn. Quantity | 120 |
| Standard. Ctn. Volume (cf) | 0.6606 |
Panduit - SD2H6 - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
