Panduit SDCLIP | Noise Shield Replacement | UPC - 07498352146
Description
Description
PanelMax shielded wiring duct and noise shield route, separate, and shield sensitive wiring from noise emission. This allows pathways to be placed in closer proximity, saving valuable space within industrial control panels. The shielding provides up to 20 dB reduction in noise (EMI/RFI), or 90% noise voltage reduction (NVR), which is equivalent to 6 inches of air spacing between sensitive and noise-emitting wiring.

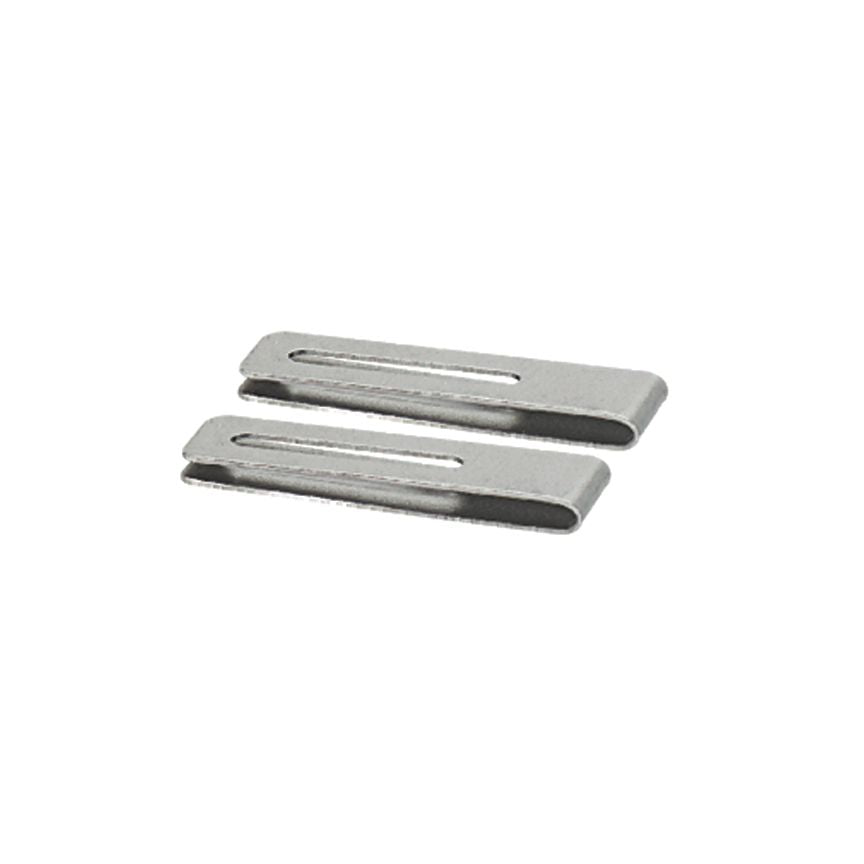

Panduit PanelMax Noise Shield Replacement Clip, Bonding Clip, For Use With: Noise Shield, Galvannealed Steel, Zinc Plated, Silver, 2.62 in L x 3/4 in W x 0.16 in H
Features + Benefits
- Metal noise barrier
- Bonding clip
- Segmented design
- Vertical wall slots
- Horizontal cable tie slots
Panduit SDCLIP Key Specs
| Application | Several Wire Routing and Segregation Configurations are Possible with the Innovative Shielded Wiring Duct and Noise Shield, Delivering Greater Design Flexibility to Satisfy a Wide Range of Applications |
| Product Type | Noise Shield Replacement |
| Color | Silver |
| Standards Met | CE Compliant, RoHS Compliant |
| Material | Galvannealed Steel |
| Measurement System | Metric |
| Wiring Duct Style | Noise Shield |
| Overall Height (In.) | 0.16 |
| Overall Height (mm) | 4.1 |
| Overall Length (ft.) | 0.21 |
| Overall Length (m) | 0.1 |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 19 |
| Slot Width (In.) | 1.5 |
| Slot Width (mm) | 38.1 |
| Sub Brand | Panduct |
| Part Features | When installing the noise shield inside a wiring duct, the bonding clip maintains electrical continuity between the panel and shield for optimal noise mitigation and aesthetics. Metal Noise Barrier |
Panduit SDCLIP Data Sheets
| Product Bulletins | Shielded Wiring Duct and Noise Shield - WDCB26--SA-ENG | Download and View |
| Part Drawings | BONDING CLIP MARKETING DRAWING | Download and View |
| Selection Guides | Wiring Duct Product Selection Guide | Download and View |
