Panduit SE100PS-CR0 | Pan-Wrap Braided Sleeving | UPC - 07498396073
Regular price
$551.81
Unit price
Description
Description

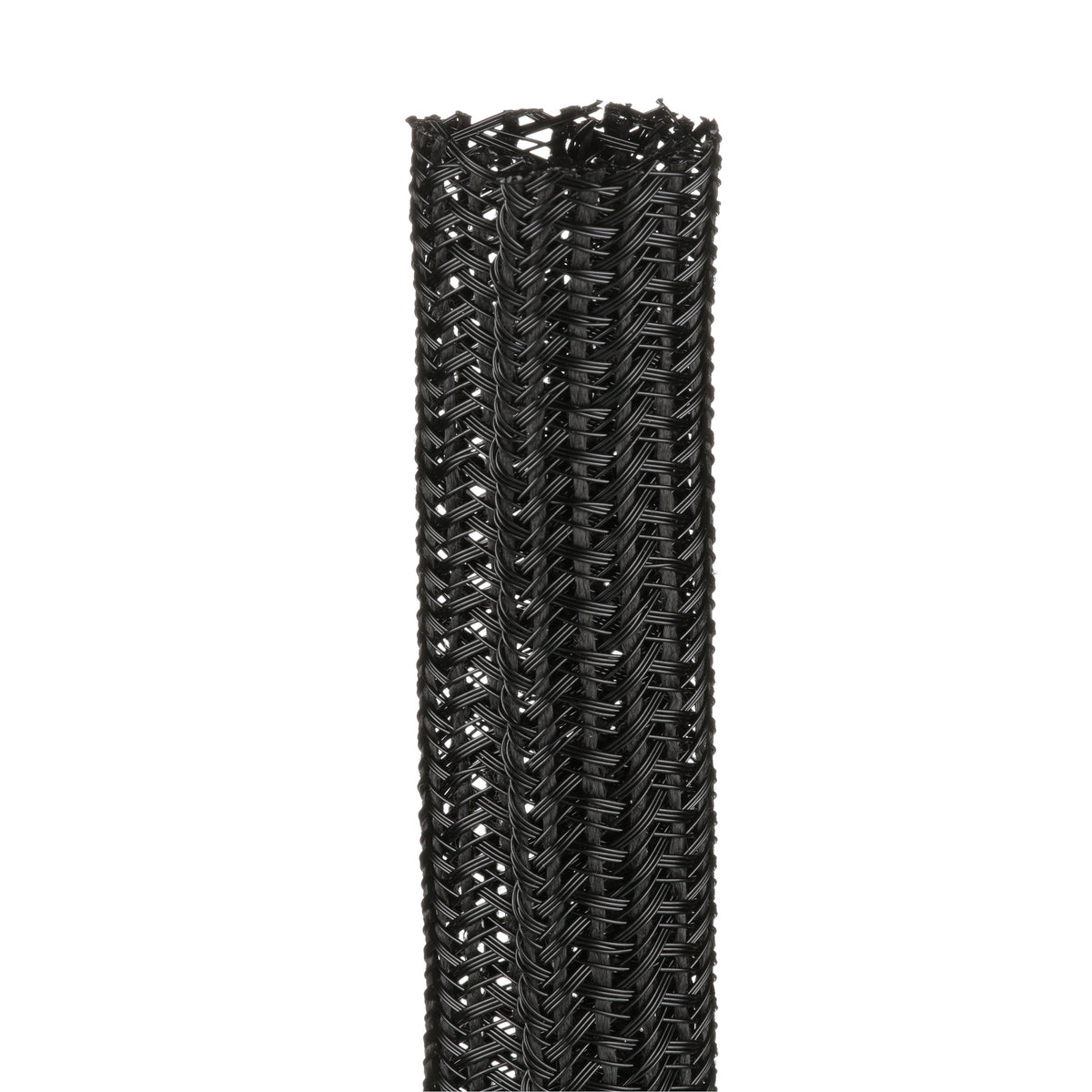

Panduit Pan-Wrap Braided Sleeve, Expandable, 1 in Sleeve Diameter, 100 ft Sleeve Length, 0.88 to 1 in Diameter Cable, -94 to 257 deg F, Flammability: UL 94-V0, Polyethylene Terephthalate, Black
Features + Benefits
- Highly flexible open weave will not trap heat or humidity
- Allows for irregular shapes
- Complaint with US and European passenger rail standards
- Increased braid density
- Innovative, fray resistant design
Panduit SE100PS-CR0 Key Specs
| Application | Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; Highly Flexible Open Weave will not Trap Heat or Humidity; Allows for Use with Irregular Shapes; Lengthwise slit allows product to be installed over cable with ends already terminated. |
| Note | Slit down length of product; Compatible with PWT100 Tool |
| Sub Brand | Pan-Wrap |
| Material | Polyethylene Terephthalate |
| Flammability Rating | VW-1 |
| Color | Black |
| Resistance Properties | Abrasion-Resistant |
| Standards Met | CSA Certified; UL Recognized E116868; RoHS Compliant |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -70 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°F) | -94 |
| Nominal Diameter (In.) | 1 |
| Nominal Diameter (mm) | 25.4 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Product Type | Pan-Wrap Braided Sleeving |
| Part Features | Allows for installation after wire or cable is routed and terminated, Ideal for applications where re-entry is required, Provides continuous abrasion resistance for wires cables, and tubing, Lightweight durable protection, Highly flexible open weave will not trap heat or humidity |
Panduit SE100PS-CR0 Data Sheets
| Specification Sheets | 45° Angled Wire Caps for TX6A, TX6 PLUS TX5e Mini-Com UTP Jack Modules: COSP406 | Download and View |
