Brand: Panduit
|
SKU:
427214
Panduit SE125PSC-LR0 | Pan-Wrap SE125PSC-LR0 Fray Resistant Sleeving, Black, PET, 1.25" Nom Dia., 50'
Regular price
$221.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SE125PSC-LR0 | Pan-Wrap SE125PSC-LR0 Fray Resistant Sleevin...
Regular price
$221.24
Unit price
Description
Description
Panduit SE125PSC-LR0 | Pan-Wrap SE125PSC-LR0 Fray Resistant Sleeving, Black, PET, 1.25" Nom Dia., 50'

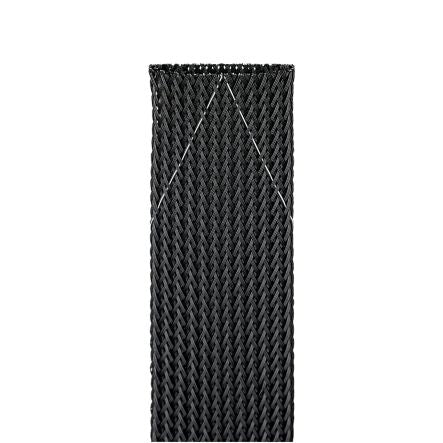

Fray resistant braided expandable sleeving, 1.25" (31.8mm) nominal I.D., polyethylene terephthalate, black.

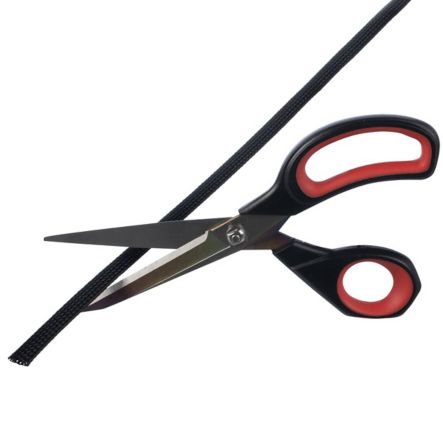

Fray Resistant Braided Expandable Sleeving resists fraying when cut with scissors and provides continuous abrasion resistance for wires, cables and tubing. The highly flexible open weave will not trap heat or humidity.
Specifications
Specifications
Panduit - SE125PSC-LR0 - Product Categories
- Wire Routing, Management & Protection
- Cable Sleeves, Tools & Wraps
Panduit - SE125PSC-LR0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SE125PSC-LR0 |
| Item Description | Pan-Wrap SE125PSC-LR0 Fray Resistant Sleeving, Black, PET, 1.25" Nom Dia., 50' |
| Application | (1) Fray-Resistant Design Resists Fraying when Cut with Scissors; (2) Provides Continuous Abrasion Protection Resistance for Wires, Cables, and Tubing; |
| Sub Brand | Pan-Wrap |
| Material | Polyethylene Terephthalate (PET) |
| Flammability Rating | UL94V-0 |
| Color | Black |
| Resistance Properties | Fray-Resistant |
| Standards Met | CSA Certified, Compliant with U.S. and European passenger rail standards, UL Recognized E116868; RoHS Compliant |
| Maximum Diameter (In.) | 1.5 |
| Maximum Diameter (mm) | 38.1 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -70 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°F) | -94 |
| Nominal Diameter (In.) | 1.25 |
| Nominal Diameter (mm) | 31.8 |
| Overall Length (ft.) | 50 |
| Overall Length (m) | 15.2 |
| Product Type | Fray Resistant Braided Expandable Sleeving |
| Part Features | Provides continuous abrasion protection for wires, cables, hoses and tubing. Highly flexible open weave will not trap heat or humidity, allows for irregular shapes. Lightweight and durable protection. Complaint with U.S. and European passenger rail standards. |
Panduit - SE125PSC-LR0 - Package Information
| UPC | 07498381693 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0876 |
| Standard. Ctn. Quantity | 4 |
| Standard. Ctn. Volume (cf) | 0.3505 |
Panduit - SE125PSC-LR0 - Videos
| Video 1 | Click to View |
|---|
