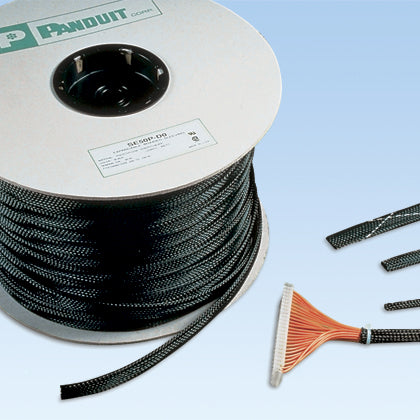

Panduit SE12P-MR0 | Braided Expandable Sleeving | UPC - 07498370650
Regular price
$657.74
Unit price
Brand: Panduit
|
SKU:
PAN-SE12P-MRO
Regular price
$657.74
Unit price
Description
Description
Panduit Braided Sleeve, Expandable, 0.12 in Sleeve Dia, 1000 ft Sleeve Length, 0.09 to 0.25 in Cable Dia, -94 to 257 deg F, Flammability: UL 94 HB, Polyethylene Terephthalate, Black
Features + Benefits
- Highly flexible open weave will not trap heat or humidity
- Allows for use with irregular shapes
- Made of flame retardant polyethylene terephthalate
- Installation tool reduces installation time by allowing easy loading
Panduit SE12P-MR0 | Braided Expandable Sleeving | UPC - 07498370650 Key Specs
| Application | (1) Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; (2) Highly Flexible Open Weave will not Trap Heat or Humidity; (3) Allows for Use with Irregular Shapes |
| Sub Brand | Pan-Wrap |
| Material | Polyethylene Terephthalate |
| Flammability Rating | UL94-HB |
| Color | Black |
| Resistance Properties | Abrasion-Resistant |
| Standards Met | CSA Certified, Compliant with U.S. and European passenger rail standards, UL Recognized E116868; RoHS Complaint |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -70 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°F) | -94 |
| Nominal Diameter (In.) | 0.12 |
| Nominal Diameter (mm) | 3 |
| Overall Length (ft.) | 1000 |
| Overall Length (m) | 304.8 |
| Product Type | Braided Expandable Sleeving |
| Part Features | Provides continuous abrasion protection for wires, cables, hoses and tubing. Highly flexible open weave will not trap heat or humidity, allows for irregular shapes. Lightweight and durable protection. Complaint with U.S. and European passenger rail standards. |
Panduit SE12P-MR0 | Braided Expandable Sleeving | UPC - 07498370650 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - SE12P-TR0 Product Page-1 | Download and View |
| Part Drawings | Standard Expandable Sleeve (SE) GB0239KD | Download and View |
| Compliances | Global Passenger Rail Standards Compliance: WAIS01--WW-ENG | Download and View |
Panduit SE12P-MR0 | Braided Expandable Sleeving | UPC - 07498370650 Environmental Information
| Panduit's RoHS Statement | Download and View |
