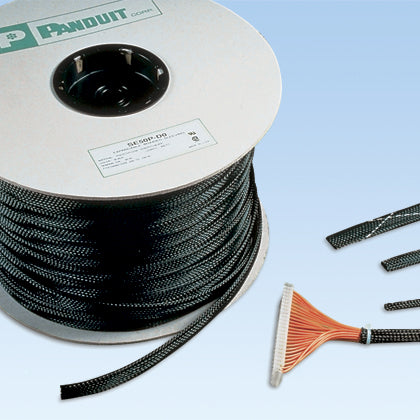

Panduit SE12P-TR8 | Braided Expandable Sleeving | UPC - 07498337009
Regular price
$151.52
Unit price
Brand: Panduit
|
SKU:
SE12P-TR8
Regular price
$151.52
Unit price
Description
Description
Panduit Braided Sleeve, Expandable, 0.12 in Sleeve Diameter, 200 ft Sleeve Length, 0.09 to 0.25 in Diameter Cable, -94 to 257 deg F, Flammability: UL94 HB, Polyethylene Terephthalate, Gray
Features + Benefits
- Highly flexible open weave will not trap heat or humidity
- Allows for use with irregular shapes
Panduit SE12P-TR8 | Braided Expandable Sleeving | UPC - 07498337009 Key Specs
| Application | (1) Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; (2) Highly Flexible Open Weave will not Trap Heat or Humidity; (3) Allows for Use with Irregular Shapes |
| Material | Polyethylene Terephthalate |
| Flammability Rating | UL94-HB |
| Color | Gray |
| Resistance Properties | Abrasion-Resistant |
| Standards Met | CSA Certified, Compliant with U.S. and European passenger rail standards, UL Recognized E116868; RoHS Complaint |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -70 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°F) | -94 |
| Nominal Diameter (In.) | 0.12 |
| Nominal Diameter (mm) | 3 |
| Overall Length (ft.) | 200 |
| Overall Length (m) | 61 |
| Product Type | Braided Expandable Sleeving |
| Part Features | Provides continuous abrasion protection for wires, cables, hoses and tubing. Highly flexible open weave will not trap heat or humidity, allows for irregular shapes. Lightweight and durable protection. Complaint with U.S. and European passenger rail standards. |
Panduit SE12P-TR8 | Braided Expandable Sleeving | UPC - 07498337009 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - SE12P-TR0 Product Page-1 | Download and View |
| Part Drawings | Standard Expandable Sleeve (SE) GB0239KD | Download and View |
| Compliances | Global Passenger Rail Standards Compliance: WAIS01--WW-ENG | Download and View |
Panduit SE12P-TR8 | Braided Expandable Sleeving | UPC - 07498337009 Environmental Information
| Panduit's RoHS Statement | Download and View |
