Panduit SE12PSC-TR0 | Fray Resistant Braided Expandable Sleeving
Regular price
$451.37
Unit price
Brand: Panduit
|
SKU:
644762
Regular price
$451.37
Unit price
Description
Description

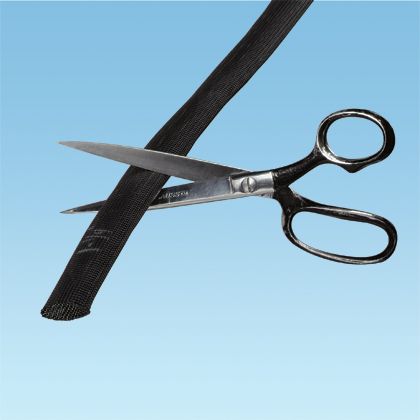

Panduit SE12PSC-TR0 | Fray Resistant Braided Expandable Sleeving
Our fray-resistant braided sleeving shield your wires, cables, and hoses from wear without restricting movement or trapping moisture, perfect for demanding applications like passenger rail.
Fray resistant braided expandable sleeving, .12" (3.2mm) nominal I.D., polyethylene terephthalate, black.
Panduit Pan-Wrap Braided Sleeve, Expandable Fray Resistant, 0.12 in Sleeve Dia, 200 ft Sleeve Length, 0.13 to 0.25 in Cable Dia, -94 to 257 deg F, Flammability: HB, Polyethylene Terephthalate, Black
Panduit - SE12PSC-TR0 - Features
- Highly flexible open weave will not trap heat or humidity
- Allows for irregular shapes
- Complaint with US and European passenger rail standards
- Increased braid density
- Innovative, fray resistant design
Specifications
Specifications
Panduit - SE12PSC-TR0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SE12PSC-TR0 |
| Decimal | .120 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Mil Spec | No |
| Military Color Code | Black |
| Sleeving | Yes |
| Spiral Wrap | No |
| Ul | Yes |
| Wall Type| Single Or Dual | Single Wall |
| Zipper | No |
| UNSPSC Code | 39131602 |
| Application | (1) Suited for the Challenging Applications Found in the Transportation and Marine Industries due to its Open Weave Design and Exceptional Flammability Performance. |
| Material | PET |
| Flammability Rating | UL94V-0 |
| Color | Black |
| Resistance Properties | Fray-Resistant |
| Standards Met | CSA Certified, Compliant with U.S. and European passenger rail standards, UL Recognized E116868; RoHS Compliant |
| Maximum Diameter (In.) | 0.25 |
| Maximum Diameter (mm) | 6.4 |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°C) | -70 |
| Minimum Operating Temperature (°F) | -94 |
| Nominal Diameter (In.) | 0.12 |
| Nominal Diameter (mm) | 3.2 |
| Overall Length (ft.) | 200 |
| Overall Length (m) | 61 |
| Product Type | Braided Expandable Sleeving |
| Maximum Bundle Diameter (In.) | 0.25 |
| Maximum Bundle Diameter (mm) | 6.4 |
| Minimum Bundle Diameter (In.) | 0.13 |
| Minimum Bundle Diameter (mm) | 3.2 |
| UPC | 07498381604 |
Panduit - SE12PSC-TR0 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 7413.00.5000 |
Panduit - SE12PSC-TR0 - Videos
| Panduit SE12PSC-TR0 Video 1 | Click to View |
|---|
