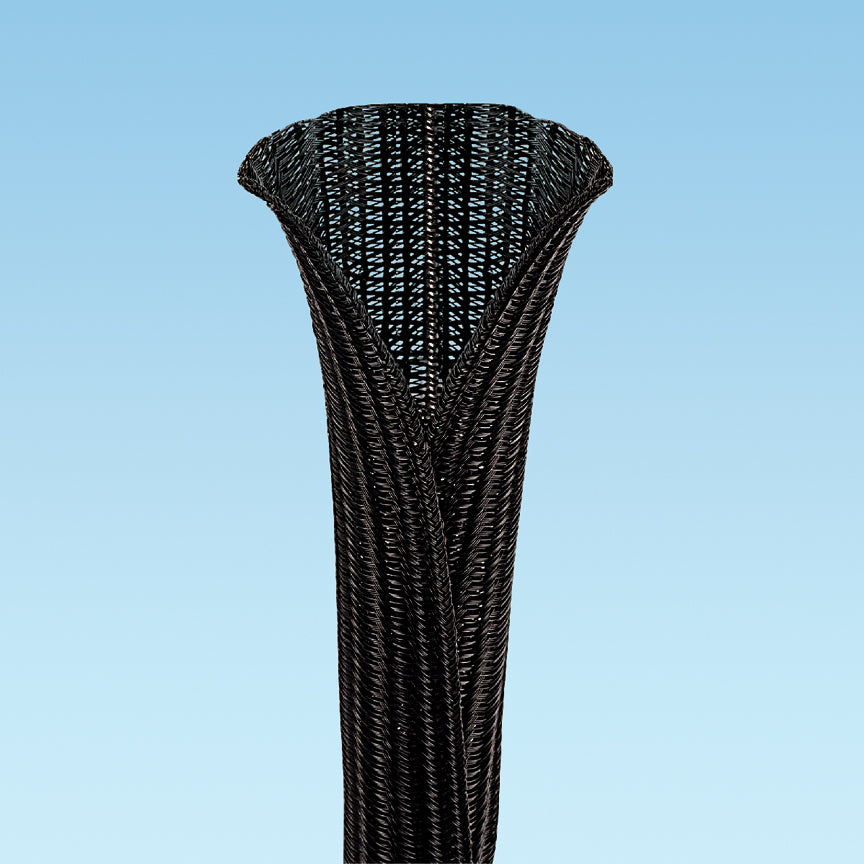

Panduit SE12PSFR-4CR0 | Pan-Wrap Braided Sleeving | UPC - 07498396075
Description
Description
Braided sleeving shall be designed of thermoplastic polyester halogen-free material for applications that require protection and bundling of wires, cables, hoses or tubing, especially after cable is routed and terminated and possible re-entry is required (maintenance and repair). Braided sleeving shall be rated for use up to 257 deg F and provides exceptional flammability performance.
Panduit Pan-Wrap Braided Sleeve, Expandable, 0.09 to 0.13 in Sleeve Dia, 400 ft Reel Sleeve Length, 0.12 in Cable Dia, -94 to 257 deg F, Flammability: UL 1441 VW-1, Polyethylene Terephthalate, Black
Features + Benefits
- Highly flexible open weave will not trap heat or humidity
- Allows for irregular shapes
- Complaint with US and European passenger rail standards
Panduit Panduit SE12PSFR-4CR0 | Pan-Wrap Braided Sleeving | UPC - 07498396075 Key Specs
| Application | (1) Suited for the Challenging Applications Found in the Transportation and Marine Industries due to its Open Weave Design, Lack of Halogens, and Exceptional Flammability Performance. (2) Installation Tool Reduces Installation Time by Allowing Easy Loadin |
| Sub Brand | Pan-Wrap |
| Material | Polyethylene Terephthalate |
| Flammability Rating | VW-1 |
| Color | Black |
| Resistance Properties | Flame-Retardant |
| Standards Met | CSA Certified, Flammability: Halogen Free RoHS, UL Recognized E116868 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -70 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°F) | -94 |
| Nominal Diameter (In.) | 0.12 |
| Nominal Diameter (mm) | 3 |
| Overall Length (ft.) | 400 |
| Overall Length (m) | 121.9 |
| Product Type | Pan-Wrap Braided Sleeving |
| Part Features | Allows for installation after wire or cable is routed and terminated, Ideal for applications where re-entry is required, Provides continuous abrasion resistance for wires cables, and tubing, Lightweight durable protection, Highly flexible open weave will not trap heat or humidity |
Panduit Panduit SE12PSFR-4CR0 | Pan-Wrap Braided Sleeving | UPC - 07498396075 Data Sheets
| Specification Sheets | Pan-Wrap Braided Sleeving Specification Sheet | Download and View |
| Part Drawings | PAN-WRAP Braided Sleeving | Download and View |
| Line Cards | Wire Abrasion Protection Line Card HSLC1-WW-ENG | Download and View |
Panduit Panduit SE12PSFR-4CR0 | Pan-Wrap Braided Sleeving | UPC - 07498396075 Environmental Information
| Panduit's RoHS Statement | Download and View |
