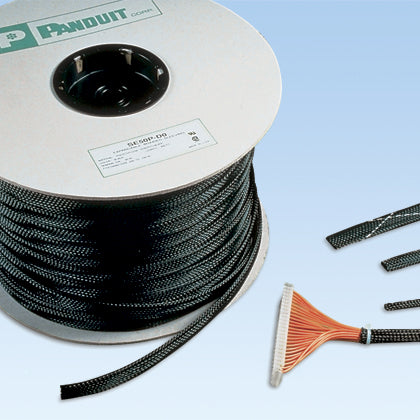

Panduit SE150P-LR8 | Braided Expandable Sleeving | UPC - 07498337015
Regular price
$219.97
Unit price
Brand: Panduit
|
SKU:
10045337
Regular price
$219.97
Unit price
Description
Description
Panduit Braided Sleeve, Expandable, 1-1/2 in Sleeve Diameter, 50 ft Sleeve Length, 1 to 2.13 in Diameter Cable, -94 to 257 deg F, Flammability: HB, Polyethylene Terephthalate, Gray
Features + Benefits
- Provides continuous abrasion protection for wires, cables, hoses and tubing
- Highly flexible open weave will not trap heat or humidity
- Allows for use with irregular shapes
- Lightweight durable protection
Panduit Panduit SE150P-LR8 | Braided Expandable Sleeving | UPC - 07498337015 Key Specs
| Application | (1) Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; (2) Highly Flexible Open Weave will not Trap Heat or Humidity; (3) Allows for Use with Irregular Shapes |
| Material | Polyethylene Terephthalate |
| Flammability Rating | UL94-HB |
| Color | Gray |
| Resistance Properties | Abrasion-Resistant |
| Standards Met | CSA Certified, Compliant with U.S. and European passenger rail standards, UL Recognized E116868; RoHS Complaint |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -70 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°F) | -94 |
| Nominal Diameter (In.) | 1.5 |
| Nominal Diameter (mm) | 38.1 |
| Overall Length (ft.) | 50 |
| Overall Length (m) | 15.2 |
| Product Type | Braided Expandable Sleeving |
| Part Features | Provides continuous abrasion protection for wires, cables, hoses and tubing. Highly flexible open weave will not trap heat or humidity, allows for irregular shapes. Lightweight and durable protection. Complaint with U.S. and European passenger rail standards. |
Panduit Panduit SE150P-LR8 | Braided Expandable Sleeving | UPC - 07498337015 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - SE12P-TR0 Product Page-1 | Download and View |
| Part Drawings | Standard Expandable Sleeve (SE) GB0239KD | Download and View |
| Compliances | Global Passenger Rail Standards Compliance: WAIS01--WW-ENG | Download and View |
Panduit Panduit SE150P-LR8 | Braided Expandable Sleeving | UPC - 07498337015 Environmental Information
| Panduit's RoHS Statement | Download and View |
