Panduit SE150PFR-LR0 | Braided Expandable Sleeving
Description
Description

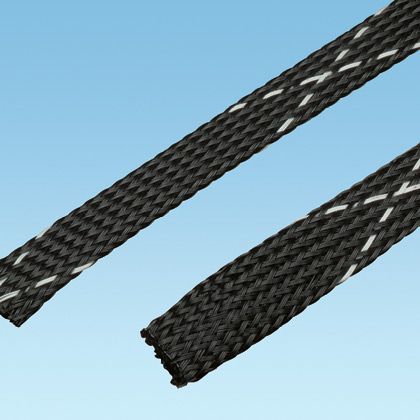

Preventing heat buildup with our flame-retardant braided sleeving. It protects wires, cables, and tubing from damage and heat, ideal for demanding environments
Flame Retardant Braided Expandable Sleeving provides continuous abrasion resistance for wires, cables and tubing. The highly flexible open weave will not trap heat or humidity.
Panduit Pan-Wrap Braided Sleeve, Expandable, 1-1/2 in Sleeve Diameter, 50 ft Sleeve Length, 1 to 2.13 in Diameter Cable, -94 to 257 deg F, Flammability: UL 1441 VW-1, Polyethylene Terephthalate, Black
Panduit - SE150PFR-LR0 - Features
- Provides continuous abrasion protection for wires, cables, hoses and tubing
- Highly flexible open weave will not trap heat or humidity
- Allows for use with irregular shapes
- Lightweight durable protection
- Provides continuous abrasion resistance for wires cables and tubing
- Lightweight durable protection
- Highly flexible open weave will not trap heat or humidity
- Rated for use up to 257F (125C)
- Allows for use with irregular shapes
- Self extinguishing meets UL VW-1
- Stock colors: Black or gray with white tracer or in white with black tracer to identify flame retardant materials.
Specifications
Specifications
Panduit - SE150PFR-LR0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SE150PFR-LR0 |
| UNSPSC Code | 31000000 |
| Application | (1) Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; (2) Highly Flexible Open Weave will not Trap Heat or Humidity; (3) Allows for Use with Irregular Shapes |
| Material | PET |
| Flammability Rating | UL 1441 VW-1 |
| Color | Black |
| Resistance Properties | Flame-Retardant |
| Standards Met | CSA Certified, UL 1441 VW-1 Flammability, E45545-2 Rated, UL Recognized E116868; RoHS Compliant |
| Maximum Diameter (In.) | 2.13 |
| Maximum Diameter (mm) | 54 |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°C) | -70 |
| Minimum Operating Temperature (°F) | -94 |
| Nominal Diameter (In.) | 1.5 |
| Nominal Diameter (mm) | 38.1 |
| Overall Length (ft.) | 50 |
| Overall Length (m) | 15.2 |
| Product Type | Braided Expandable Sleeving |
| Maximum Bundle Diameter (In.) | 2.13 |
| Maximum Bundle Diameter (mm) | 54 |
| Minimum Bundle Diameter (In.) | 1 |
| Minimum Bundle Diameter (mm) | 25.4 |
| UPC | 07498320268 |
Panduit - SE150PFR-LR0 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 7413.00.5000 |
