Brand: Panduit
|
SKU:
10083410
Panduit SE200PS-LR0 | Pan-Wrap SE200PS-LR0 Split Sleeving, Black, PET, 2" Nom Dia., 50', PK1
Regular price
$551.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SE200PS-LR0 | Pan-Wrap SE200PS-LR0 Split Sleeving, Black, P...
Regular price
$551.81
Unit price
Description
Description
Panduit SE200PS-LR0 | Pan-Wrap SE200PS-LR0 Split Sleeving, Black, PET, 2" Nom Dia., 50', PK1

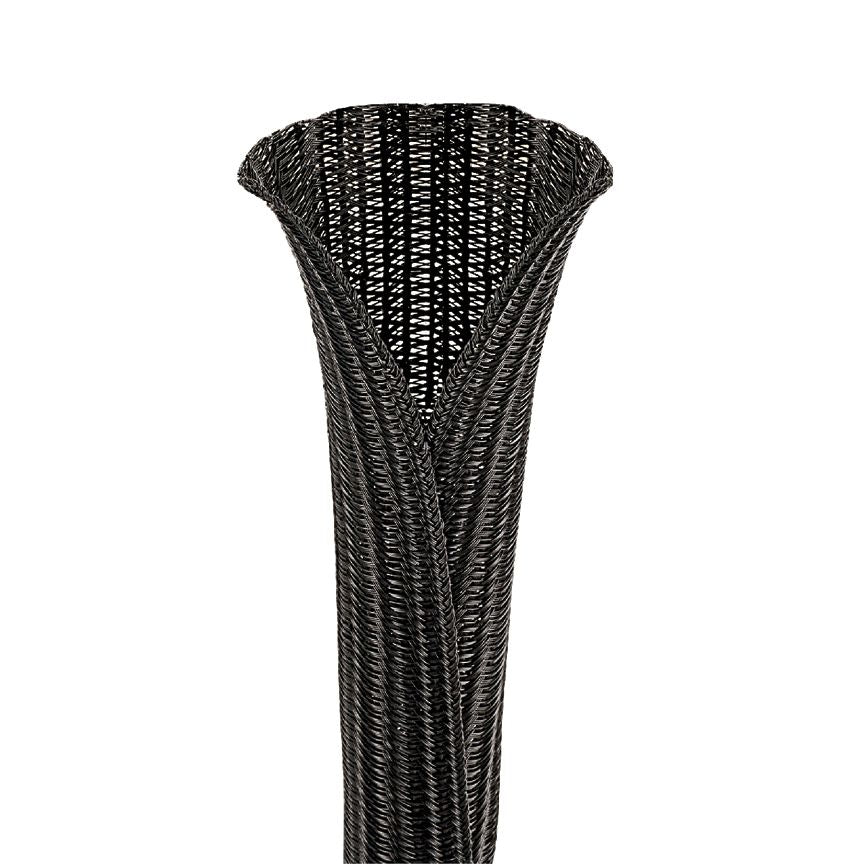

Braided Expandable Sleeving, 2.00" Diameter (50.8mm), provides Continuous Abrasion Resistance for Wires, Cables and Tubing. The highly flexible open weave will not trap heat or humidity, Black, Polyethylene Terephthalate, 50 ft. per Reel.
Panduit SE200PS-LR0 | SLEEVING | PAN-WRAP BRAIDED SLEEVING,
Specifications
Specifications
Panduit - SE200PS-LR0 - Product Categories
- Wire Routing, Management & Protection
- Cable Sleeves, Tools & Wraps
Panduit - SE200PS-LR0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SE200PS-LR0 |
| Item Description | Pan-Wrap SE200PS-LR0 Split Sleeving, Black, PET, 2" Nom Dia., 50', PK1 |

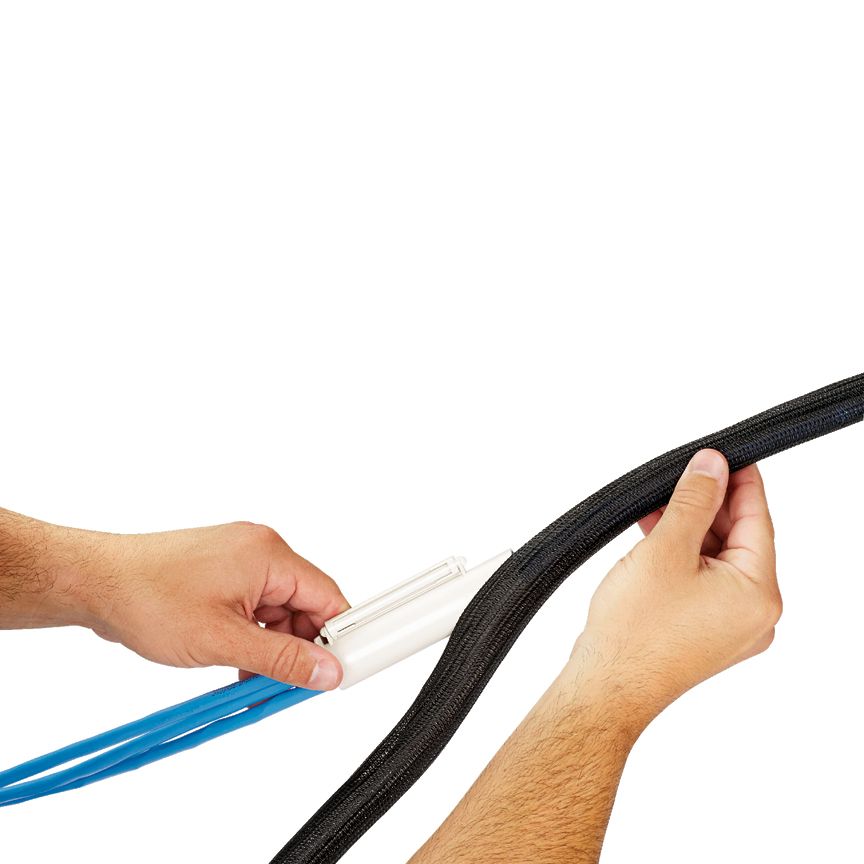

| Application | (1) Suited for the Challenging Applications Found in the Transportation and Marine Industries due to its Open Weave Design, Lack of Halogens, and Exceptional Flammability Performance. (2) Installation Tool Reduces Installation Time by Allowing Easy Loading |
| Note | Slit down length of product |
| Sub Brand | Pan-Wrap |
| Material | Polyethylene Terephthalate (PET) |
| Flammability Rating | UL94V-0 |
| Color | Black |
| Standards Met | CSA Certified,Flammability, Halogen Free, RoHS, UL Recognized E116868 |
| Maximum Diameter (In.) | 2 |
| Maximum Diameter (mm) | 50.8 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -70 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°F) | -94 |
| Nominal Diameter (In.) | 2 |
| Nominal Diameter (mm) | 50.8 |
| Overall Length (ft.) | 50 |
| Overall Length (m) | 15.2 |
| Product Type | Pan-Wrap Braided Sleeving |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 50.8 |
| Minimum Bundle Diameter (In.) | 1.75 |
| Minimum Bundle Diameter (mm) | 44.5 |
Panduit - SE200PS-LR0 - Package Information
| UPC | 61305666971 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 1.3672 |
| Standard Ctn. Quantity | 2 |
| Standard Ctn. Volume (cf) | 2.7344 |
Panduit - SE200PS-LR0 - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
