Brand: Panduit
|
SKU:
10045341

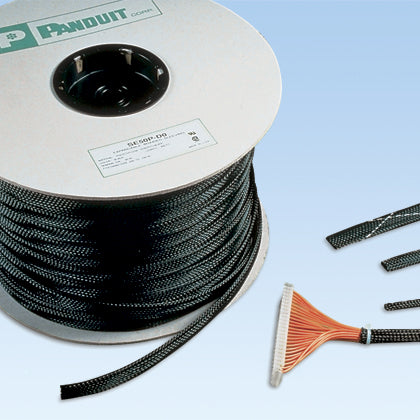

Panduit SE25P-MR8 | Braided Expandable Sleeving | UPC - 07498321991
Regular price
$859.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SE25P-MR8 | Braided Expandable Sleeving | UPC - 07498321991
Regular price
$859.07
Unit price
Description
Description
Panduit Braided Expandable Sleeve, 0.12 to 0.37 in Sleeve Dia, 1000 ft Reel Sleeve Length, 1/4 in Cable Dia, -94 to 257 deg F, Flammability: UL 94 HB, Polyethylene Terephthalate, Gray
Features + Benefits
- Highly flexible open weave will not trap heat or humidity
- Allows for use with irregular shapes
Panduit Panduit SE25P-MR8 | Braided Expandable Sleeving | UPC - 07498321991 Key Specs
| Application | Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; Highly Flexible Open Weave will not Trap Heat or Humidity; Allows for Use with Irregular Shapes |
| Material | Polyethylene Terephthalate |
| Flammability Rating | UL94V-0 |
| Resistance Properties | Abrasion-Resistant |
| Standards Met | CSA Certified, Compliant with U.S. and European passenger rail standards EN-45545, UL Recognized E116868; RoHS Complaint |
| Maximum Diameter (In.) | 0.375 |
| Maximum Diameter (mm) | 9.5 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -70 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°F) | -94 |
| Nominal Diameter (In.) | 0.25 |
| Nominal Diameter (mm) | 6.4 |
| Overall Length (ft.) | 1000 |
| Overall Length (m) | 304.8 |
| Product Type | Braided Expandable Sleeving |
| Part Features | Provides continuous abrasion protection for wires, cables, hoses and tubing. Highly flexible open weave will not trap heat or humidity, allows for irregular shapes. Lightweight and durable protection. Complaint with U.S. and European passenger rail standards. |
Panduit Panduit SE25P-MR8 | Braided Expandable Sleeving | UPC - 07498321991 Data Sheets
| Part Drawings | Standard Expandable Sleeve (SE) GB0239KD | Download and View |
| Compliances | Global Passenger Rail Standards Compliance: WAIS01--WW-ENG | Download and View |
| Line Cards | Wire Abrasion Protection Line Card HSLC1-WW-ENG | Download and View |
Panduit Panduit SE25P-MR8 | Braided Expandable Sleeving | UPC - 07498321991 Environmental Information
| Panduit's RoHS Statement | Download and View |
