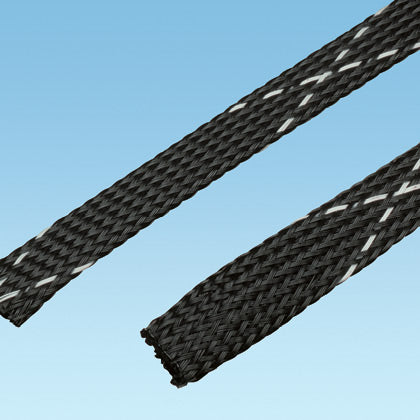

Panduit SE25PFR-MR0 | Braided Expandable Sleeving | UPC - 07498370657
Regular price
$1,129.16
Unit price
Brand: Panduit
|
SKU:
10045318
Regular price
$1,129.16
Unit price
Description
Description
Panduit Pan-Wrap Braided Sleeve, Expandable, 1/4 in Sleeve Diameter, 1000 ft Sleeve Length, 0.12 to 0.37 in Diameter Cable, -94 to 257 deg F, Flammability: UL 1441 VW-1, Polyethylene Terephthalate, Black
Features + Benefits
- Provides continuous abrasion protection for wires, cables, hoses and tubing
- Highly flexible open weave will not trap heat or humidity
- Allows for use with irregular shapes
- Lightweight durable protection
Panduit Panduit SE25PFR-MR0 | Braided Expandable Sleeving | UPC - 07498370657 Key Specs
| Application | Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; Highly Flexible Open Weave will not Trap Heat or Humidity; Allows for Use with Irregular Shapes |
| Material | Polyethylene Terephthalate |
| Flammability Rating | VW-1 |
| Color | Black |
| Resistance Properties | Flame-Retardant |
| Standards Met | CSA Certified, Compliant with U.S. and European passenger rail standards EN-45545, UL Recognized E116868; RoHS Complaint |
| Maximum Diameter (In.) | 0.375 |
| Maximum Diameter (mm) | 9.5 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -70 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°F) | -94 |
| Nominal Diameter (In.) | 0.25 |
| Nominal Diameter (mm) | 6.4 |
| Overall Length (ft.) | 1000 |
| Overall Length (m) | 304.8 |
| Product Type | Braided Expandable Sleeving |
| Part Features | Provides continuous abrasion protection for wires, cables, hoses and tubing. Highly flexible open weave will not trap heat or humidity, allows for irregular shapes. Lightweight and durable protection. Complaint with U.S. and European passenger rail standards. |
Panduit Panduit SE25PFR-MR0 | Braided Expandable Sleeving | UPC - 07498370657 Data Sheets
| Part Drawings | Standard Expandable Sleeve (SE) GB0239KD | Download and View |
| Compliances | Global Passenger Rail Standards Compliance: WAIS01--WW-ENG | Download and View |
| Line Cards | Wire Abrasion Protection Line Card HSLC1-WW-ENG | Download and View |
Panduit Panduit SE25PFR-MR0 | Braided Expandable Sleeving | UPC - 07498370657 Environmental Information
| Panduit's RoHS Statement | Download and View |
