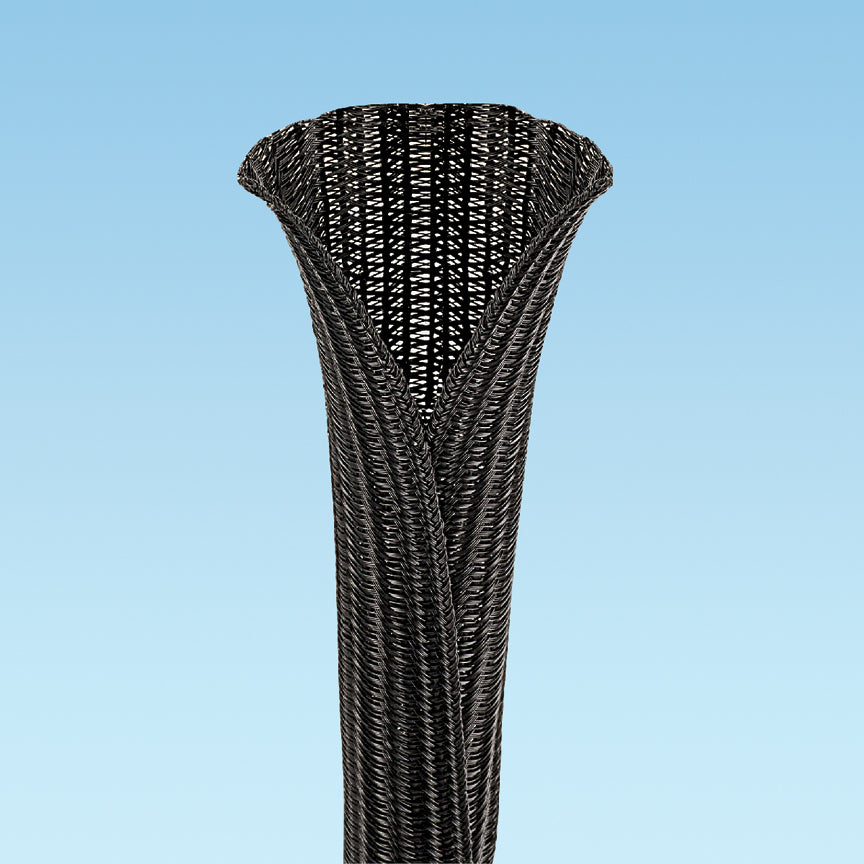

Panduit SE25PS-TR0 | Pan-Wrap Braided Sleeving | UPC - 07498396071
Regular price
$399.24
Unit price
Description
Description
Panduit Pan-Wrap Braided Sleeve, Expandable, 1/4 in Sleeve Dia, 200 ft Sleeve Length, 0.19 to 0.25 in Cable Dia, -94 to 257 deg F, Flammability: HB, Polyethylene Terephthalate, Black
Features + Benefits
- Allows for installation after cable routing is complete, breakouts of single and multiple cables and addition or removal of cables post-installation
- Highly flexible, does not trap heat or humidity, quiet in high vibration applications
- Allows easy loading of maximum bundle diameters to speed installation
- Installation tool reduces installation time by allowing easy loading
Panduit SE25PS-TR0 Key Specs
| Application | (1) Suited for the Challenging Applications Found in the Transportation and Marine Industries due to its Open Weave Design, Lack of Halogens, and Exceptional Flammability Performance. (2) Installation Tool Reduces Installation Time by Allowing Easy Loadin |
| Sub Brand | Pan-Wrap |
| Material | Polyethylene Terephthalate |
| Flammability Rating | UL94-V0 |
| Color | Black |
| Resistance Properties | Weather-Resistant |
| Standards Met | CSA Certified, Flammability: Halogen Free RoHS, UL Recognized E116868 |
| Maximum Diameter (In.) | 0.25 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -70 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°F) | -94 |
| Nominal Diameter (In.) | 0.25 |
| Nominal Diameter (mm) | 6.4 |
| Overall Length (ft.) | 200 |
| Overall Length (m) | 61 |
| Product Type | Pan-Wrap Braided Sleeving |
| Part Features | Allows for installation after wire or cable is routed and terminated, Ideal for applications where re-entry is required, Provides continuous abrasion resistance for wires cables, and tubing, Lightweight durable protection, Highly flexible open weave will not trap heat or humidity |
Panduit SE25PS-TR0 Data Sheets
| Installation Documents | LD Raceway-Fittings-Installation doc | Download and View |
| Catalog Cut Sheets | LD3-One-piece-Latching-Surface-Raceway | Download and View |
| Specification Sheets | Pan-Way LD Surface Raceway System SRSP21--WW-ENG | Download and View |
