Brand: Panduit
|
SKU:
10332163
Panduit SE50TC-L | Pan-Wrap SE50TC-L Braided Expandable Sleeving
Regular price
$436.12
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SE50TC-L | Pan-Wrap SE50TC-L Braided Expandable Sleeving
Regular price
$436.12
Unit price
Description
Description

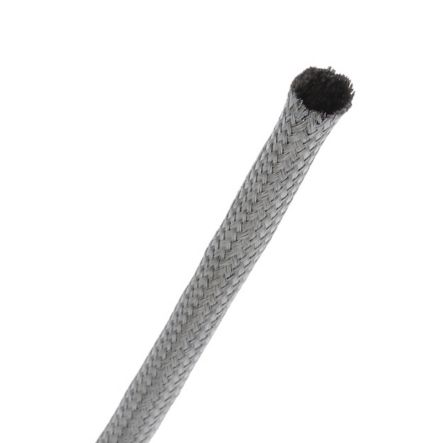

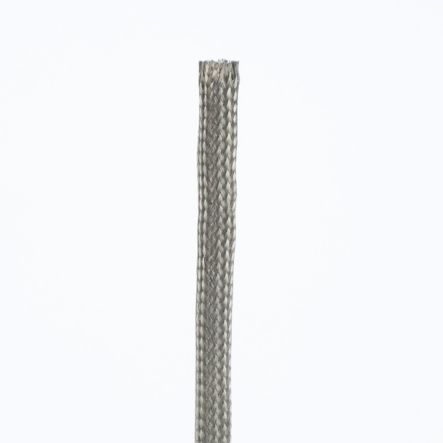

Panduit SE50TC-L | Pan-Wrap SE50TC-L Braided Expandable Sleeving
Tinned Copper Braided Sleeving, 0.5 Inches (12.7 mm) Nominal Inside Diameter, Current Capacity is 25 AMPS, Conforms to MIL-SPEC-AA-59569, 100 Feet (30.5 Meters) Reel. Sleeving is made from Electro-plated Tin Copper and provides EMI, RFI, and ESD Protection for cables. The sleeving provides continuous abrasion resistance for wires, cables and tubing.
Panduit SE50TC-L | Tinned Copper Braided Sleeving,1/2" Dia,Silver
Panduit - SE50TC-L - Features
- Tinned Copper Braided Sleeving, 0.5 Inches (12.7 mm) Nominal Inside Diameter, Current Capacity is 25 AMPS, Conforms to MIL-SPEC-AA-59569, 100 Feet (30.5 Meters) Reel. Sleeving is made from Electro-plated Tin Copper and provides EMI, RFI, and ESD Protec tion for cables. The sleeving provides continuous abrasion resistance for wires, cables and tubing.
- Technical Information: CID A-A-59569 (formerly MIL SPEC QQB-575)
Specifications
Specifications
Panduit - SE50TC-L - Product Categories
- Wire Routing, Management & Protection
- Cable Sleeves, Tools & Wraps
Panduit - SE50TC-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SE50TC-L |
| Item Description | Pan-Wrap SE50TC-L Braided Expandable Sleeving |
| Application | Protect Cables from Abrasion |
| Note | Provides EMI, RFI, and ESD Protection |
| Sub Brand | Pan-Wrap |
| Material | Tinned Copper |
| Color | Silver |
| Resistance Properties | Abrasion-Resistant |
| Standards Met | CID A-A-59569 (formerly MIL SPEC QQB-575) |
| Maximum Operating Temperature (°C) | 232 |
| Maximum Operating Temperature (°F) | 450 |
| Nominal Diameter (In.) | 0.5 |
| Nominal Diameter (mm) | 12.7 |
| Overall Length (ft.) | 50 |
| Overall Length (m) | 15.2 |
| Product Type | Tinned Copper Braided Sleeving |
Panduit - SE50TC-L - Package Information
| UPC | 61305682474 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0779 |
| Standard Ctn. Quantity | 4 |
| Standard Ctn. Volume (cf) | 0.3115 |
Panduit - SE50TC-L - Videos
| Video 1 | Click to View |
|---|
