Brand: Panduit
|
SKU:
322216
Panduit SE75P-DR0 | Braided Sleeving, Black, PET, 0.75" Nom Dia., 500', PK1
Regular price
$969.11
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SE75P-DR0 | Braided Sleeving, Black, PET, 0.75" Nom Di...
Regular price
$969.11
Unit price
Description
Description

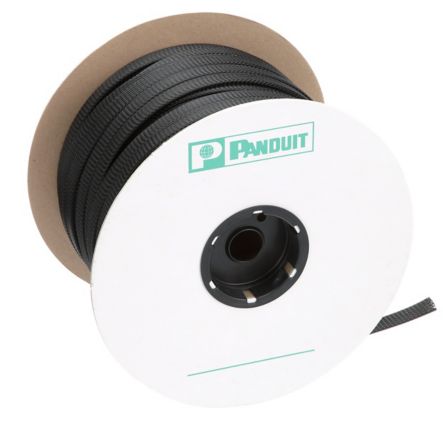

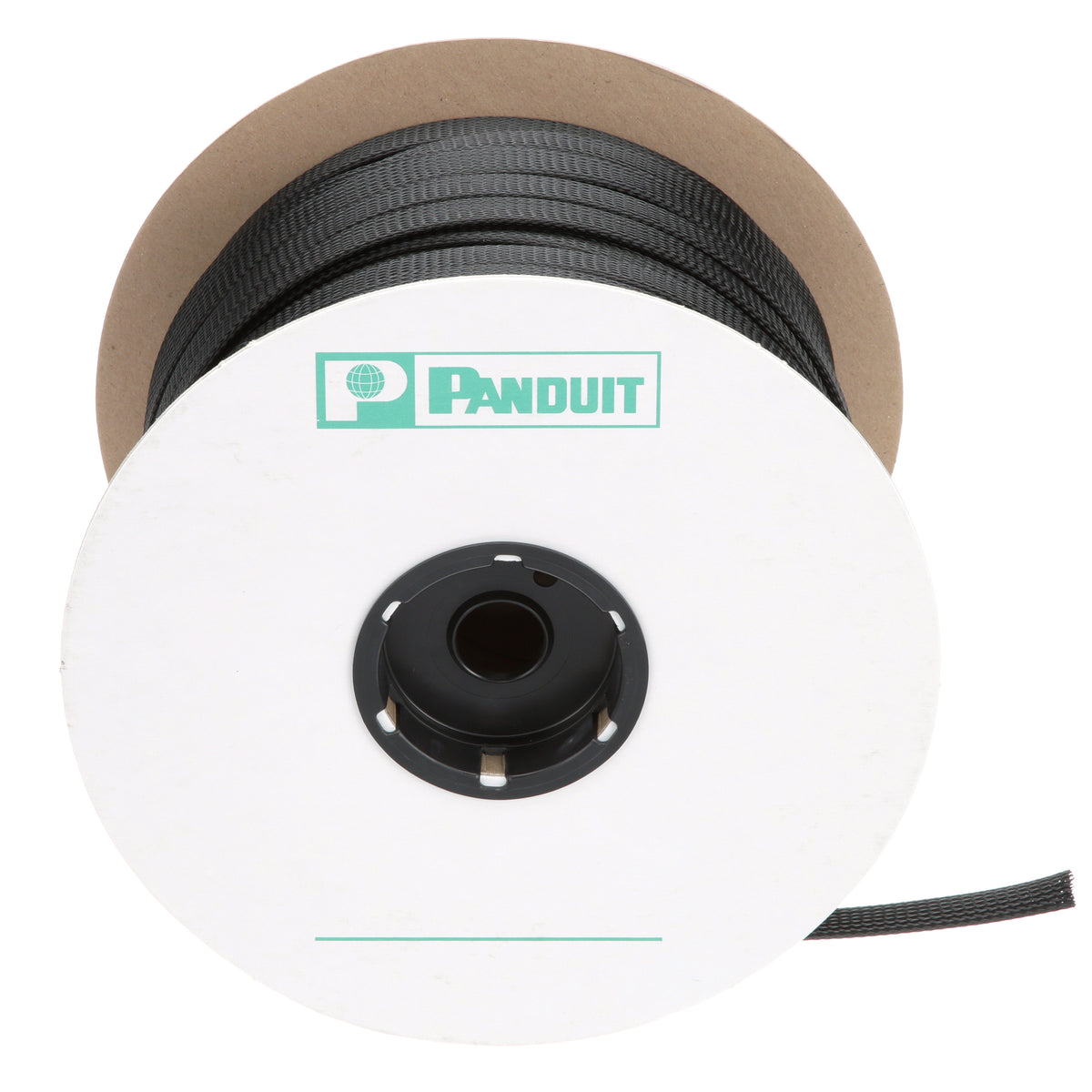

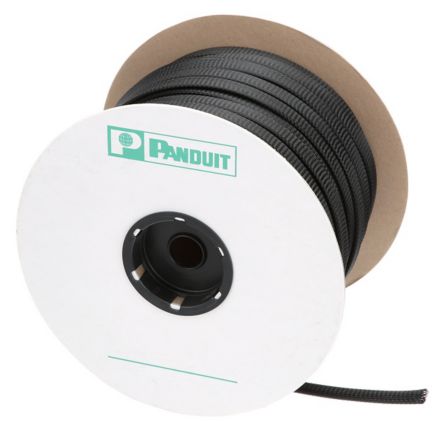

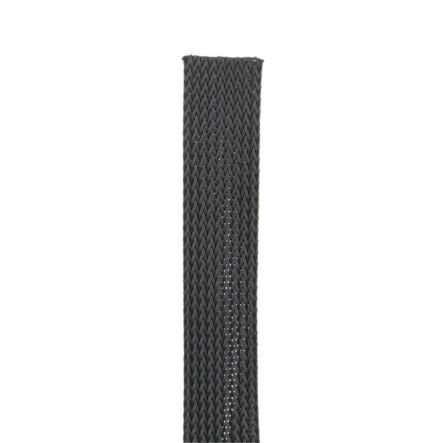

Panduit SE75P-DR0 | Braided Sleeving, Black, PET, 0.75" Nom Dia., 500', PK1
Enhance cable protection and organization with our braided sleeving. Its expandable design and flame-retardant properties, provides heat and humidity resistance in demanding environments.
Panduit Pan-Wrap Braided Sleeve, Expandable, 3/4 in Sleeve Diameter, 500 ft Sleeve Length, 1/2 to 1-1/4 in Diameter Cable, -94 to 257 deg F, Polyethylene Terephthalate, Black
Panduit - SE75P-DR0 - Features
- Provides continuous abrasion protection for wires, cables, hoses and tubing
- Highly flexible open weave will not trap heat or humidity
- Allows for use with irregular shapes
- Lightweight durable protection
Specifications
Specifications
Panduit - SE75P-DR0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SE75P-DR0 |
| Application | Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; Highly Flexible Open Weave will not Trap Heat or Humidity; Allows for Use with Irregular Shapes |
| Material | PET |
| Flammability Rating | UL94V-0 |
| Color | Black |
| Resistance Properties | Abrasion-Resistant, UV-Resistant (20-Year) |
| Standards Met | CSA Certified, UL 94 V-0 Rated, UL Recognized E116868, RoHS Compliant |
| Maximum Diameter (In.) | 1.25 |
| Maximum Diameter (mm) | 31.8 |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°C) | -70 |
| Minimum Operating Temperature (°F) | -94 |
| Nominal Diameter (In.) | 0.75 |
| Nominal Diameter (mm) | 19.1 |
| Overall Length (ft.) | 500 |
| Overall Length (m) | 152.4 |
| Product Type | Braided Expandable Sleeving |
| Maximum Bundle Diameter (In.) | 1.25 |
| Maximum Bundle Diameter (mm) | 31.8 |
| Minimum Bundle Diameter (In.) | 0.5 |
| Minimum Bundle Diameter (mm) | 12.7 |
| UPC | 07498370660 |
