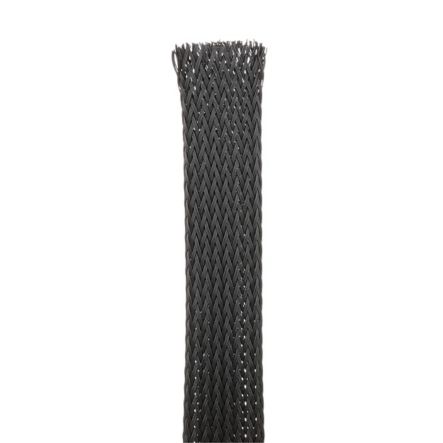

Panduit SE75PSC-CR0 | Pan-Wrap SE75PSC-CR0 Fray Resistant Sleeving, Black, PET, 0.75" Nom Dia., 100'
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SE75PSC-CR0 | Pan-Wrap SE75PSC-CR0 Fray Resistant Sleeving,...
Description
Description

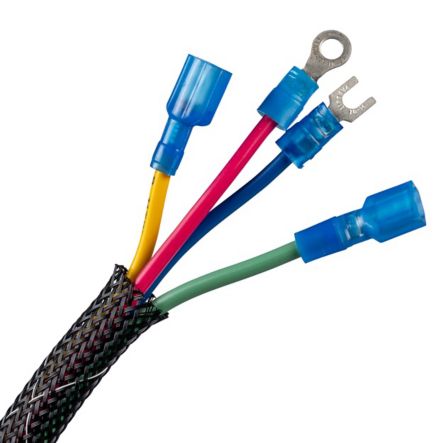

The SE75PSC-CR0 Fray Resistant Braided Sleeving can be cut with a pair of scissors and provides continuous abrasion resistance for wires, cables, and tubing. The lightweight, durable protection is flexible and the open weave will not trap heat or humidity. Polyethylene Terephthalate. Nominal Diameter: 0.75" (19.1 mm), 100' (30.5 m) long. Color Black. 1 per package.
Fray Resistant Braided Expandable Sleeving resists fraying when cut with scissors and provides continuous abrasion resistance for wires, cables and tubing. The highly flexible open weave will not trap heat or humidity.
Specifications
Specifications
Panduit - SE75PSC-CR0 - Product Categories
- Wire Routing, Management & Protection
- Cable Sleeves, Tools & Wraps
Panduit - SE75PSC-CR0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SE75PSC-CR0 |
| Item Description | Pan-Wrap SE75PSC-CR0 Fray Resistant Sleeving, Black, PET, 0.75" Nom Dia., 100' |
| Application | Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; Highly Flexible Open Weave will not Trap Heat or Humidity; Allows for Use with Irregular Shapes |
| Note | Resists fraying when cut with scissors |
| Sub Brand | Pan-Wrap |
| Material | Polyethylene Terephthalate (PET) |
| Flammability Rating | UL94V-0 |
| Color | Black |
| Resistance Properties | Fray-Resistant |
| Standards Met | CSA Certified, UL Recognized E116868; RoHS Compliant |
| Maximum Diameter (In.) | 1.25 |
| Maximum Diameter (mm) | 31.8 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -70 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°F) | -94 |
| Nominal Diameter (In.) | 0.75 |
| Nominal Diameter (mm) | 19.1 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Product Type | Fray Resistant Braided Expandable Sleeving |
| Maximum Bundle Diameter (In.) | 1 |
| Maximum Bundle Diameter (mm) | 25.4 |
| Minimum Bundle Diameter (In.) | 0.63 |
| Minimum Bundle Diameter (mm) | 15.9 |
| Part Features | Provides continuous abrasion protection for wires, cables, hoses and tubing. Highly flexible open weave will not trap heat or humidity, allows for irregular shapes. Lightweight and durable protection. Complaint with U.S. and European passenger rail standards. |
Panduit - SE75PSC-CR0 - Package Information
| UPC | 07498381649 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0876 |
| Standard. Ctn. Quantity | 4 |
| Standard. Ctn. Volume (cf) | 0.3505 |
