Brand: Panduit
|
SKU:
393538

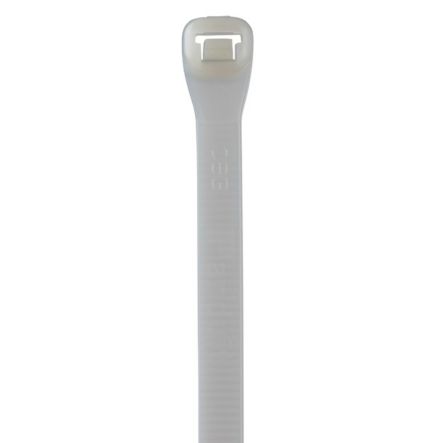

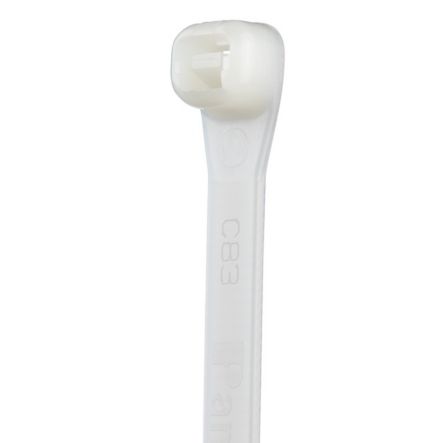

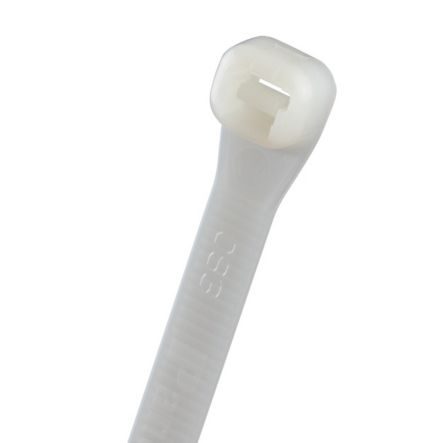

Panduit SG100M-C | Cable Tie, SG Series, 4.2";L (106mm), Miniature, Nylon, Natural, Pack of 100
Regular price
$21.09
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SG100M-C | Cable Tie, SG Series, 4.2";L (106mm), Minia...
Regular price
$21.09
Unit price
Description
Description
Panduit SG100M-C | Super-Grip SG100M-C Cable Tie
Super-Grip Cable Ties are designed with high strength and flexibility to tightly grip bundles and resist lateral movement despite the rough conditions of MRO and construction environments. Plus, with Nylon 6.6 material, it's ideal for general indoor environments. Miniature cross section, 4.2in, Tensile Strength: 80, black, 100pc.
Panduit - SG100M-C - Features
- Cable Tie, 4.2";, Miniature cross section
- For indoor use
- Designed to grip the bundle tightly to resist lateral movement of the tie once installed
- High strength allows the tie to withstand rough installation practices that occur in MRO and construction environments such as securing cables to vertical and horizontal ladder cable tray systems
- Thin, wide strap body provides flexibility enabling it to conform to bundle while maintaining tensile strength
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - SG100M-C - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - SG100M-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SG100M-C |
| Item Description | Super-Grip SG100M-C Cable Tie |
| Product Type | Cable Tie |
| Sub Brand | Super-Grip |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 4.2 |
| Overall Length (mm) | 105.9 |
| Body Width (In.) | 0.118 |
| Body Width (mm) | 3 |
| Body Thickness (In.) | 0.038 |
| Body Thickness (mm) | 0.97 |
| Maximum Bundle Diameter (In.) | 0.9 |
| Maximum Bundle Diameter (mm) | 22.9 |
| Minimum Bundle Diameter (In.) | 0.03 |
| Minimum Bundle Diameter (mm) | 0.8 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | 70 |
| Minimum Installation Temperature (°F) | -40 |
| Standards Met | CSA Certified, UL Listed (File #E56854), RoHS Compliant |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Application | General |
| Part Features | High grip strength, Thin, wide strap body, Distinctive flared neck, Strong wedge and hinge, Tapered tip, Agressive tip grips |
Panduit - SG100M-C - Package Information
| UPC | 07498378423 |
|---|---|
| Standard Pkg. Qty. | 100 |
| Standard Package Volume (cf) | 0.0237 |
| Standard Ctn. Qty. | 1000 |
| Standard Ctn. Volume (cf) | 0.2370 |
Panduit - SG100M-C - Videos
| Video 1 | Click to View |
|---|
