Brand: Panduit
|
SKU:
882018

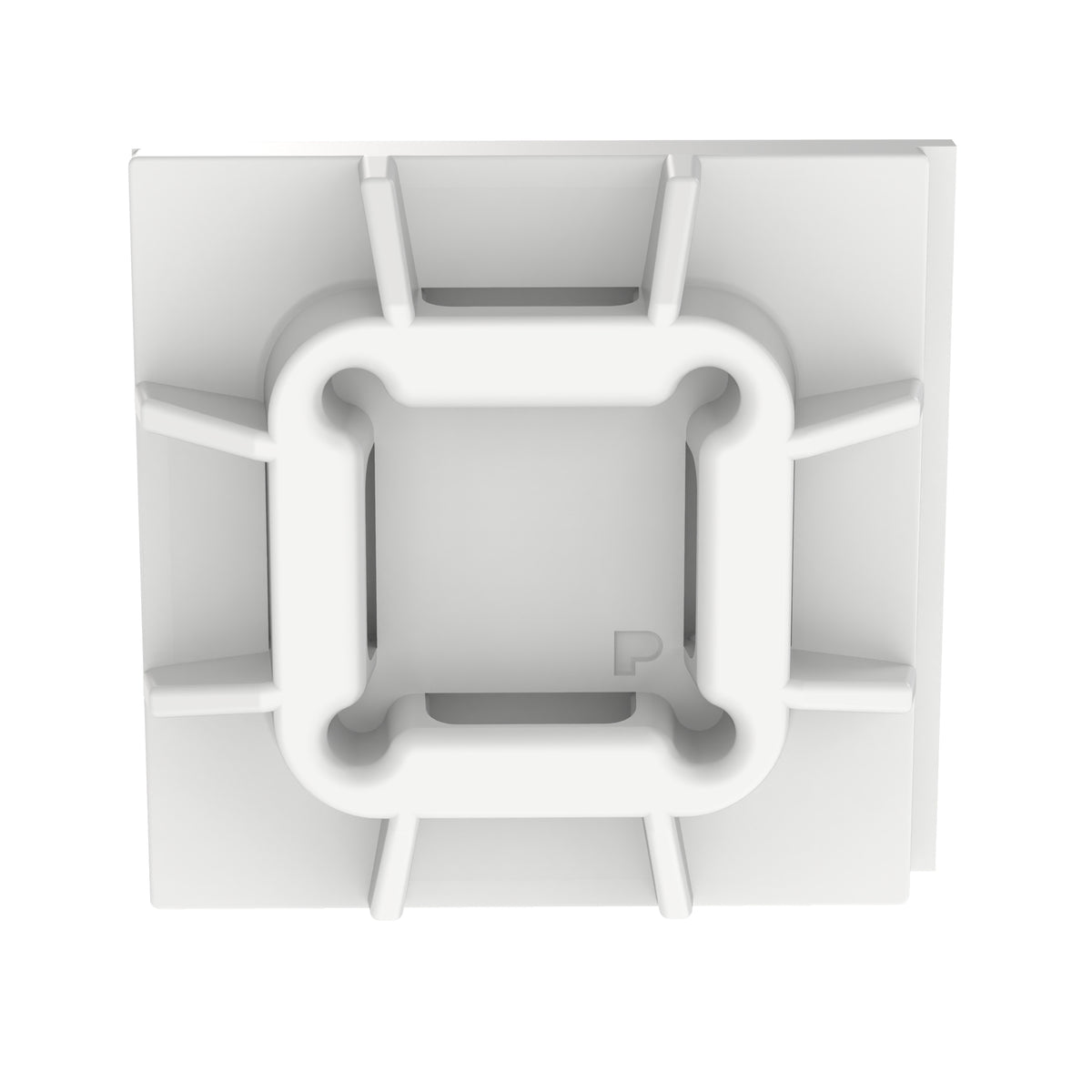

Panduit SGABM20-A-C | Cable Tie Mount | UPC - 07498371356
Regular price
$105.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SGABM20-A-C | Cable Tie Mount | UPC - 07498371356
Regular price
$105.74
Unit price
Description
Description
Panduit Cable Tie Mount, 4-Way Tie Entry, Rubber Adhesive Tape Mount, 0.48 in Maximum Tie Width, 3/4 in Base Length, 3/4 in Base Width, Nylon, White
Features + Benefits
- Low profile design keeps bundle close to mounting surface
- Small overall size allows for use where space is limited
- Provides maximum adhesion, especially in harsh, high temperature, outdoor environments, extending service life
- Protect the cable bundle and the installer, improving productivity, job site safety and reliability
- Easily handled, improving productivity
- Polyamide (PA) insulation
- For use with Super-Grip Miniature and Super-Grip Intermediate cable ties
Panduit SGABM20-A-C Key Specs
| Application | Right Angle Mounts Holds Cable Bundles Away from the Sharp Edges of Bulkheads or Cabinet Holes. Can Also be used to Mount Cable Bundles Adjacent to Any Surface |
| Product Type | Cable Tie Mount |
| Color | White |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | 40 |
| Minimum Operating Temperature (°F) | 104 |
| Mount Method | Rubber Adhesive Tape |
| Overall Height (In.) | 0.2 |
| Overall Height (mm) | 5.1 |
| Overall Length (In.) | 0.75 |
| Overall Length (mm) | 19 |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 19 |
| Standards Met | CE Compliant,RoHS Compliant |
| Static Load Capacity (kg) | 0.127 |
| Static Load Capacity (lb) | 0.28 |
| Sub Brand | Super-Grip |
Panduit SGABM20-A-C Data Sheets
| Part Drawings | PAN-TY Locking Cable Tie: SS-5540 Sheet 3 | Download and View |
| Selection Guides | Cable Ties Product Selection Guide. | Download and View |
