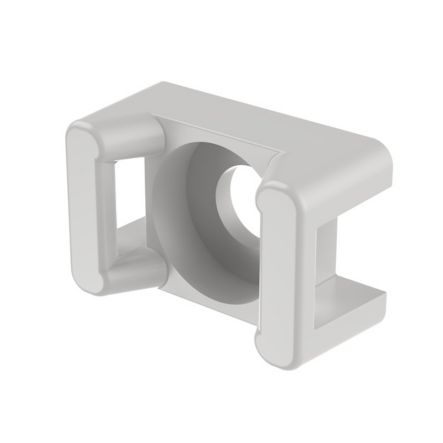

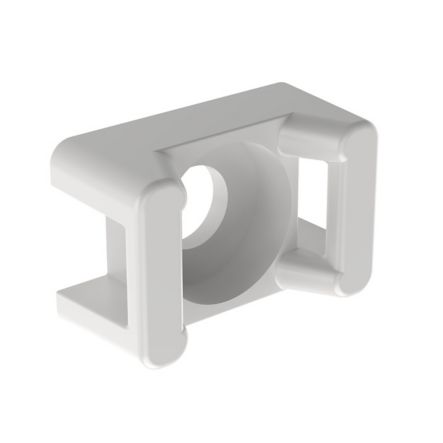

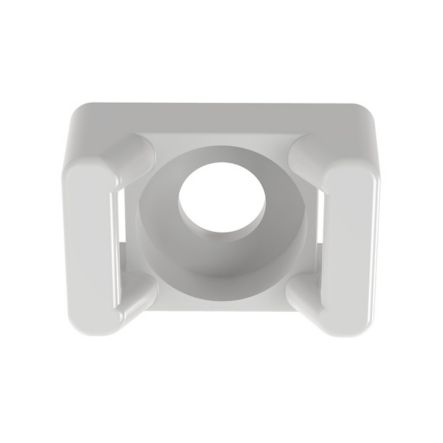

Panduit SGTM2S8-C | Super-Grip SGTM2S8-C Cable Tie Mount
Regular price
$51.66
Unit price
Brand: Panduit
|
SKU:
10153383
Regular price
$51.66
Unit price
Description
Description
Panduit SGTM2S8-C | Super-Grip SGTM2S8-C Cable Tie Mount
The cable tie mount is natural color and is applied with a #8 (M4) screw. It is 0.66" (16.7mm) long and made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with cable ties Super-Grip miniature, Super-Grip intermediate, and Super-Grip standard adhesive backed cable tie mounts. It comes in packages of 100.
Panduit - Cable tie mount - indoor - natural - SGTM2S8-C.
Specifications
Specifications
Panduit - SGTM2S8-C - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - SGTM2S8-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SGTM2S8-C |
| Item Description | Super-Grip SGTM2S8-C Cable Tie Mount |
| Application | Super-Grip Cable Ties and Mounts are Designed to Withstand Rough Installation Practices that Occur in MRO and Construction Project |
| Note | For use with Super-Grip cable ties |
| Product Type | Cable Tie Mount |
| Color | Natural |
| Flammability Rating | UL94V-2 |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Loop Tensile Strength (N) | 334 |
| Minimum Loop Tensile Strength (lb) | 75 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw |
| Mounting Hole Thread Size | #8 |
| Overall Height (In.) | 0.34 |
| Overall Height (mm) | 8.6 |
| Overall Length (In.) | 0.66 |
| Overall Length (mm) | 16.7 |
| Overall Width (In.) | 0.48 |
| Overall Width (mm) | 12.2 |
| Standards Met | cULus 62275 Type 2,21 (E136577), CE Compliant, RoHS Compliant |
| Sub Brand | Super-Grip |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Panduit - SGTM2S8-C - Package Information
| UPC | 07498352873 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0287 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.1434 |
Panduit - SGTM2S8-C - Videos
| Video 1 | Click to View |
|---|
