Brand: Panduit
|
SKU:
501702
Panduit SGTM3S10-C | Super-Grip SGTM3S10-C Cable Tie Mount
Regular price
$81.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SGTM3S10-C | Super-Grip SGTM3S10-C Cable Tie Mount
Regular price
$81.74
Unit price
Description
Description

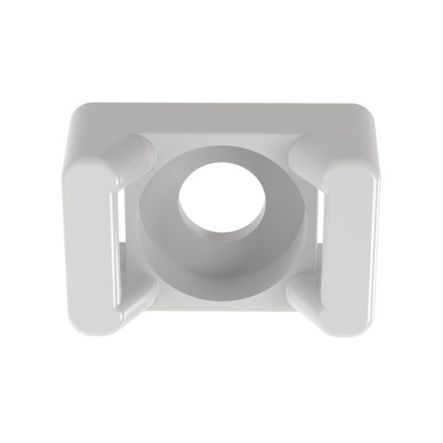

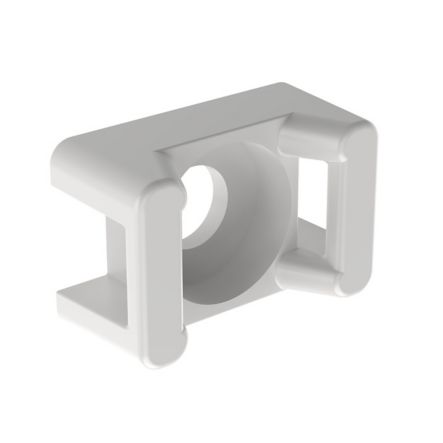

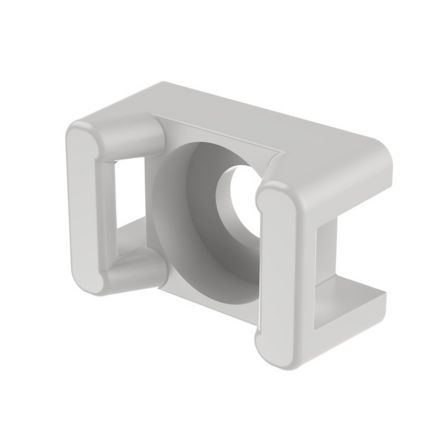

Panduit SGTM3S10-C | Super-Grip SGTM3S10-C Cable Tie Mount
The cable tie mount is natural color and is applied with a #10 (M5) screw. It is 0.91" (23.1 mm) long and made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with cable ties Super-Grip miniature, Super-Grip intermediate, Super-Grip standard, and Super-Grip light-heavy adhesive backed cable tie mounts. It comes in packages of 100.
Super-Grip(TM) Cable Tie Mount - Screw Applied
Panduit - SGTM3S10-C - Features
- Low profile design keeps bundle close to mounting surface
- Small overall size allows use where space is limited
Specifications
Specifications
Panduit - SGTM3S10-C - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - SGTM3S10-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SGTM3S10-C |
| Item Description | Super-Grip SGTM3S10-C Cable Tie Mount |
| Application | Super-Grip Cable Ties and Mounts are Designed to Withstand Rough Installation Practices that Occur in MRO and Construction Project |
| Note | For Super-Grip Cable Ties |
| Product Type | Cable Tie Mount |
| Color | Natural |
| Flammability Rating | UL94V-2 |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Loop Tensile Strength (N) | 534 |
| Minimum Loop Tensile Strength (lb) | 120 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw |
| Mounting Hole Thread Size | #10 |
| Overall Height (In.) | 0.43 |
| Overall Height (mm) | 11 |
| Overall Length (In.) | 0.91 |
| Overall Length (mm) | 23.1 |
| Overall Width (In.) | 0.61 |
| Overall Width (mm) | 15.4 |
| Standards Met | cULus 62275 Type 2,21 (E136577), CE Compliant, RoHS Compliant |
| Sub Brand | Super-Grip |
| For Use With | Miniature, Intermediate, Standard, Light Heavy Cross-Section Ties |
Panduit - SGTM3S10-C - Package Information
| UPC | 07498371419 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0370 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.1850 |
Panduit - SGTM3S10-C - Videos
| Video 1 | Click to View |
|---|
