Panduit SMS-A-D15 | Sms-A-D15 Cable Tie Mount, Ivory, Abs, Rubber A...
Description
Description

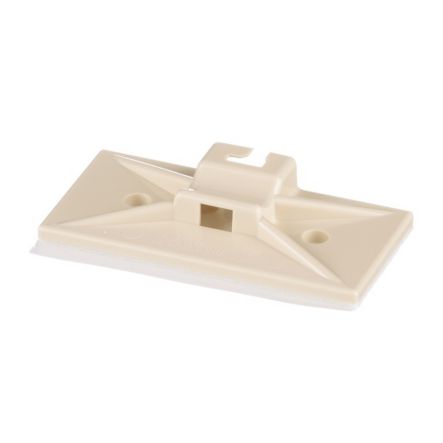

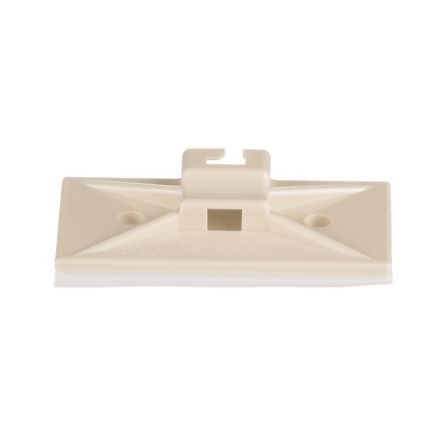

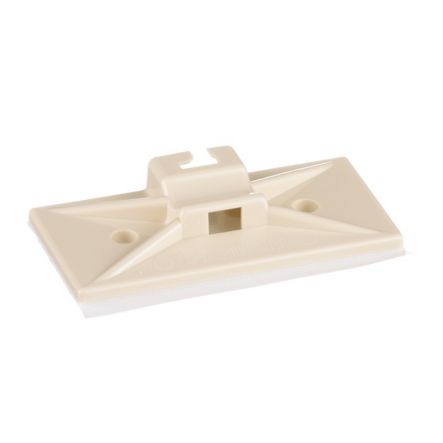

Panduit SMS-A-D15 Snap-In Cable Mounts eliminate protruding tie heads and facilitate one hand tie threading. The integral retaining notch allows cable tie heads to be held in place below bundle. Applied with rubber adhesive tape and are designed for use in indoor environments where mounting holes cannot be drilled. They are 0.31" x 2.06" (7.9 x 52.3mm) in size and can be used with standard cross section cable ties. Made of ABS, are white ivory in color and come in packages of 500.
Panduit - SMS-A-D15 - Features
- For use with standard cross section cable ties: PLT1S, PLT1.5S, PLT2S, PRT1.5S, and PRT2S
- Integral retaining notch holds cable tie head in place below bundle
- Eliminates protruding tie head and facilitates one hand tie threading
- Quickly route wire and cable where mounting holes cannot be drilled
- Rubber-based adhesive provides a strong and reliable bond
- For indoor use only
- Material: ABS
Specifications
Specifications
Panduit - SMS-A-D15 - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - SMS-A-D15 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SMS-A-D15 |
| Item Description | Sms-A-D15 Cable Tie Mount, Ivory, Abs, Rubber Adh., 2.06X1.04", Pk500 |
| Application | Snap-In Cable Tie Mounts – Mechanically Applied, Used with Panduit Standard Cross Section Cable Ties Including Plt1S, Plt1.5S, Plt2S, Prt1.5S And Prt2S. Used to Quickly Route Wire and Cable Where Mounting Holes Cannot be Drilled |
| Product Type | Cable Tie Mount |
| Color | Ivory |
| Environment | Indoor |
| Material | ABS |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Rubber Adhesive Tape |
| Mounting Hole Thread Size | #6 |
| Overall Height (In.) | 0.31 |
| Overall Height (mm) | 7.9 |
| Overall Length (In.) | 2.06 |
| Overall Length (mm) | 52.3 |
| Overall Width (In.) | 1.04 |
| Overall Width (mm) | 50.3 |
| Standards Met | CE Compliant, UL Recognized E136577, RoHS Compliant |
| Static Load Capacity (kg) | 0.454 |
| Static Load Capacity (lb) | 1 |
| For Use With | Standard Cross-Section Ties |
Panduit - SMS-A-D15 - Package Information
| UPC | 07498358009 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.3967 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 3.9670 |
Panduit - SMS-A-D15 - Videos
| Video 1 | Click to View |
|---|
