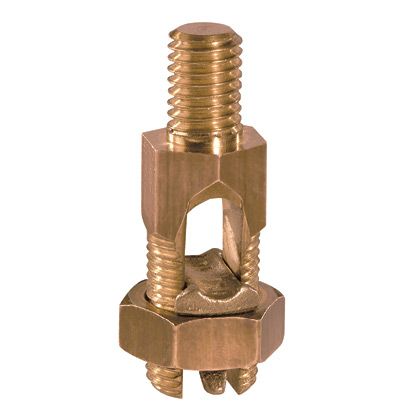

Panduit SP1-7-C | Grounding Connectors - Service Post, Male Stud, single Conductor | UPC - 07498371635

The ability to provide a grounding system that is both reliable and economical is dependent upon finding the right connectors for the application. Panduit offers grounding connectors for a wide variety of conductor combinations and mounting configurations in high strength electrolytic copper, aluminum and bronze alloy materials. Globally distributed StructuredGround Mechanical Connectors provide fast and easy terminating of ground conductors to water pipe, ground rods, conduit, iron pipe and structural steel for highest reliability and lowest installed cost. With the addition of new ground clamps to the existing line of StructuredGround Mechanical Connectors, Panduit delivers the breadth of line to supply the right connector for each unique job, providing maximum reliability and safety for all critical electrical connections throughout your physical infrastructure.

Panduit StructuredGround Service Post Connector, Mechanical, Series: SP1, 1 Conductors, 8 to 7 AWG Conductor, 1/4-20 x 1/2 in L Stud, Male Connection, Specifications: 0.69 in Nut Hex, 1/2 in Body Hex, Copper, Bronze, 0.88 in L Dimensions

Features + Benefits

• Made from high copper content, hard drawn copper rod provides high strength
• Offered with standard and long stud lengths to accommodate a variety of mounting applications
• Wide wire range taking capability minimizes inventory requirements
• True hex design for body and nut hex provides correct fit with socket, box, or open end wrenches resulting in proper torquing of electrical connection
• Pressure bar provides secure connection on a full range of conductor combinations used with each connector assuring premium wire pull out strength
• UL listed for grounding and bonding and suitable for direct burial in earth or concrete
• Satisfies grounding specification requirements for safety and reliability
• Creates optimum conductivity resulting in reliable, high quality connections
• Allows consolidation to one supplier, lowering procurement costs
• Provides worldwide product availability and expertise for consistent, rapid deployment
• Minimizes inventory requirements, saves cost
• Saves cost on special tooling

Panduit SP1-7-C | Grounding Connectors - Service Post, Male Stud, single Conductor | UPC - 07498371635 Key Specs

---

Panduit SP1-7-C | Grounding Connectors - Service Post, Male Stud, single Conductor | UPC - 07498371635 Data Sheets

Part Drawings | Part Drawing - PDF - C41213_02 - SP1 Family	Download and View
Catalog Cut Sheets | Catalog Cut Sheet - SP1-8-C Product Page	Download and View
Product Bulletins | StructuredGround Mechanical Connectors: GRCB02--SA-ENG	Download and View

---
