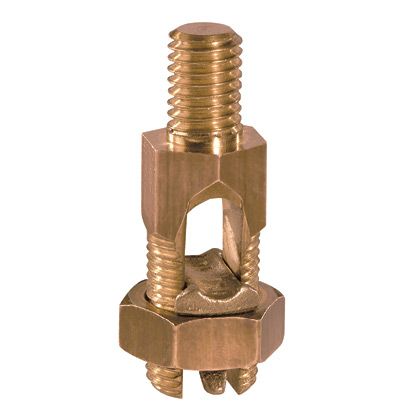

Panduit SP2-3-C | Grounding Connectors - Service Post, Male Stud, two- Conductors | UPC - 07498371663
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SP2-3-C | Grounding Connectors - Service Post, Male Stud, t...
Description
Description
The ability to provide a grounding system that is both reliable and economical is dependent upon finding the right connectors for the application. Panduit offers grounding connectors for a wide variety of conductor combinations and mounting configurations in high strength electrolytic copper, aluminum and bronze alloy materials. Globally distributed StructuredGround mechanical connectors provide fast and easy terminating of ground conductors to water pipe, ground rods, conduit, iron pipe and structural steel for highest reliability and lowest installed cost. With the addition of new ground clamps to the existing line-of StructuredGround mechanical connectors, Panduit delivers the breadth of line to supply the right connector for each unique job, providing maximum reliability and safety for all critical electrical connections throughout your physical infrastructure.
Panduit StructuredGround Service Post Connector, Premium Grade, Series: SP2, 2 Conductors, 10 to 3 AWG Conductor, 3/8-16 Stud, Male, 0.81 in Hex Nut, 0.63 in Hex Body, 0.63 in L Stud, 0.63 in Conductor Size Run, 275 lb Tightening Torque, Copper, Bronze, 1.09 in L
Features + Benefits
- Made from high copper content, hard drawn copper rod provides high strength
- Offered with standard and long stud lengths to accommodate a variety of mounting applications
- Wide wire range taking capability minimizes inventory requirements
- True hex design for body and nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection
- Pressure bar provides secure connection on a full range of conductor combinations used with each connector providing premium wire pullout strength
- Suitable for direct burial in earth or concrete
- Used for grounding one copper code conductor to steel structures, busbars or transformers or for tapping busbar with a hex nut and washer
Panduit SP2-3-C | Grounding Connectors - Service Post, Male Stud, two- Conductors | UPC - 07498371663 Key Specs
| Sub Brand | StructuredGround |
| Material | High Copper Content Hard Drawn Rod |
| Overall Length (In.) | 1.09 |
| Overall Length (mm) | 27.7 |
| Stud Length (In.) | 0.63 |
| Stud Length (mm) | 16 |
| Standards Met | cULus Listed - 467, DB Rated |
| Product Type | Grounding Connectors - Service Post, Male Stud, two- Conductors |
| Part Features | Offered with standard and long stud lengths to accommodate a variety of mounting applications. Wide range-taking capabilities minimizes inventory requirements. True hex design for body and nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection. Pressure bar provides a secure connection on a full range of conductor combinations used with each connector providing premium wire pull-out strength. |
Panduit SP2-3-C | Grounding Connectors - Service Post, Male Stud, two- Conductors | UPC - 07498371663 Data Sheets
| Part Drawings | Part Drawing - PDF - C41214_03 - SP2 Family | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - SP2-8C Product Page | Download and View |
| Product Bulletins | StructuredGround Mechanical Connectors: GRCB02--SA-ENG | Download and View |
Panduit SP2-3-C | Grounding Connectors - Service Post, Male Stud, two- Conductors | UPC - 07498371663 Environmental Information
| Panduit's RoHS Statement | Download and View |
