Brand: Panduit
|
SKU:
PAN-SP2-4/0L-Q

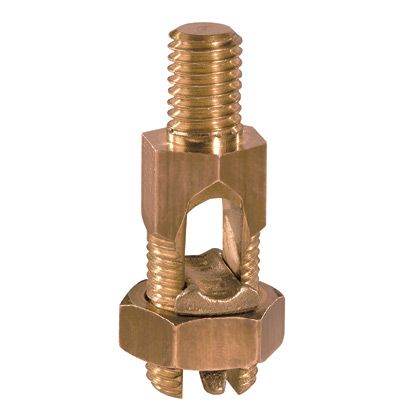

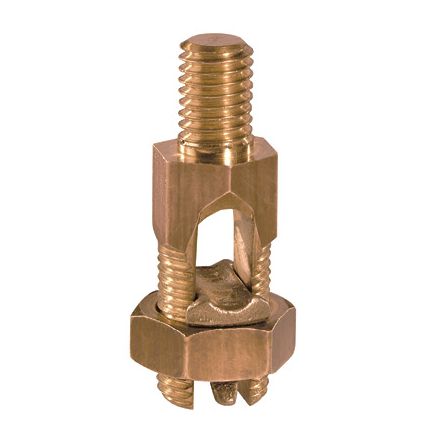

Panduit SP2-4/0L-Q | Service Post,1 SOL-4/0 STR,long,25pk
Regular price
$134.02
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SP2-4/0L-Q | Service Post,1 SOL-4/0 STR,long,25pk
Regular price
$134.02
Unit price
Brand: Panduit
|
SKU:
PAN-SP2-4/0L-Q
Regular price
$134.02
Unit price
Shipping calculated at checkout.
Description
Description
Panduit SP2-4/0L-Q | Service Post,1 SOL-4/0 STR,long,25pk
Bronze, service post connector, 1 SOL-4/0 STR, stud length 1.50", male, two cable, type SP2.
Panduit SP2-4/0L-Q Bronze Service Post Connector1 Sol-4/0 Str, Male, 2 Cables
Specifications
Specifications
Panduit - SP2-4/0L-Q - Product Categories
- Grounding & Bonding
- Service Post Connectors
Panduit - SP2-4/0L-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SP2-4/0L-Q |
| Item Description | Service Post,1 SOL-4/0 STR,long,25pk |
| Sub Brand | StructuredGround |
| Material | Copper |
| Overall Length (In.) | 2.25 |
| Overall Length (mm) | 57.2 |
| Stud Length (In.) | 1.5 |
| Stud Length (mm) | 38.1 |
| Application | Utility/Ground Grid |
| Standards Met | cULus Listed - 467, DB Rated |
| Product Type | Grounding Connectors - Service Post, Male Stud, two- Conductors |
| Part Features | Offered with standard and long stud lengths to accommodate a variety of mounting applications. Wide range-taking capabilities minimizes inventory requirements. True hex design for body and nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection. Pressure bar provides a secure connection on a full range of conductor combinations used with each connector providing premium wire pull-out strength. |
Panduit - SP2-4/0L-Q - Package Information
| UPC | 07498371673 |
|---|---|
| Standard Package Quantity | 25 |
| Standard Package Volume (cf) | 0.1815 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
