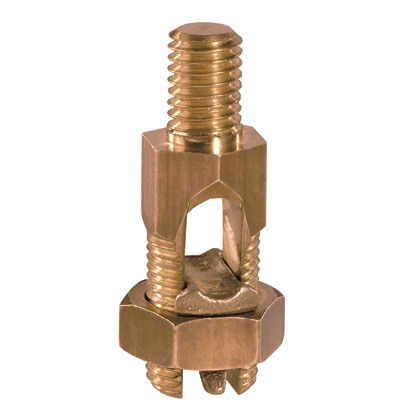

Panduit SP2-4L-C | StructuredGround™ Two Conductor Service Post Con...
Description
Description
The ability to provide a grounding system that is both reliable and economical is dependent upon finding the right connectors for the application. Panduit offers grounding connectors for a wide variety of conductor combinations and mounting configurations in high strength electrolytic copper, aluminum and bronze alloy materials. Globally distributed StructuredGround mechanical connectors provide fast and easy terminating of ground conductors to water pipe, ground rods, conduit, iron pipe and structural steel for highest reliability and lowest installed cost. With the addition of new ground clamps to the existing line-of StructuredGround mechanical connectors, Panduit delivers the breadth of line to supply the right connector for each unique job, providing maximum reliability and safety for all critical electrical connections throughout your physical infrastructure.
Panduit StructuredGround Service Post Connector, Premium Grade, Series: SP2, 2 Conductors, 10 to 4 AWG Conductor, 5/16-18 Stud, Male, 3/4 in Hex Nut, 0.56 in Hex Body, 1 in L Stud, 0.56 in Conductor Size Run, 240 lb Tightening Torque, Copper, Bronze, 1.16 in L
Provide and reliable ground connections for two conductor cables, with our service post connector, simplify your grounding for electrical service entrances, offering secure and reliable connections.
Panduit - SP2-4L-C - Features
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
- Performance/construction - standard IL/standard fan out (singlemode)
- 24 in connector variant
- 12 fibers
- Made from high copper content, hard drawn copper rod provides high strength
- Offered with standard and long stud lengths to accommodate a variety of mounting applications
- Wide wire range taking capability minimizes inventory requirements
- True hex design for body and nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection
- Pressure bar provides secure connection on a full range of conductor combinations used with each connector providing premium wire pullout strength
- Suitable for direct burial in earth or concrete
- Used for grounding one copper code conductor to steel structures, busbars or transformers or for tapping busbar with a hex nut and washer
Specifications
Specifications
Panduit - SP2-4L-C - Specifications
| UNSPSC Code | 39121400 |
|---|---|
| Sub Brand | StructuredGround™ |
| Material | Copper |
| Overall Length (In.) | 1.16 |
| Overall Length (mm) | 29.5 |
| Stud Length (In.) | 1 |
| Stud Length (mm) | 25.4 |
| Application | Utility/Ground Grid |
| Standards Met | cULus Listed - 467, DB Rated |
| Product Type | Grounding Connector |
| Part Features | Offered with standard and long stud lengths to accommodate a variety of mounting applications. Wide range-taking capabilities minimizes inventory requirements. True hex design for body and nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection. Pressure bar provides a secure connection on a full range of conductor combinations used with each connector providing premium wire pull-out strength. |
| UPC | 07498371662 |
Panduit - SP2-4L-C - Package Information
| UPC | 07498371662 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.1481 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
