Panduit SP6X88-C | Pan-Plug Modular Plug, Category 6A, 23-24 AWG, 1...
Description
Description

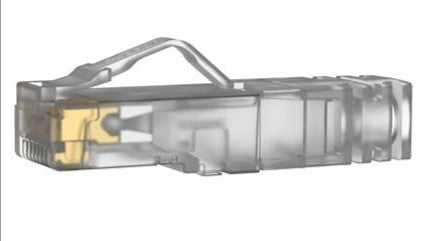

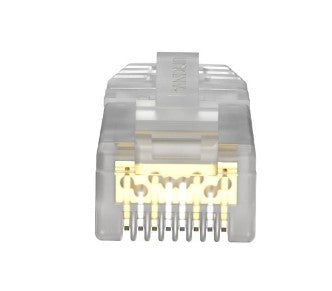

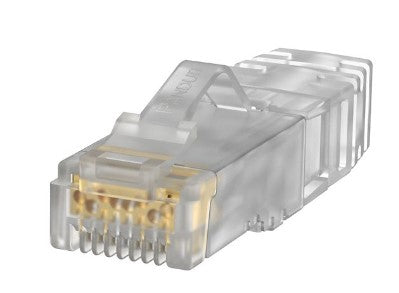

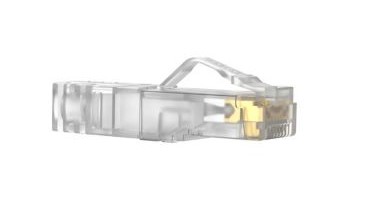

The Cat 6A UTP modular plug terminates 4-pair, 23-24 AWG, 100 ohm, solid unshielded twisted pair patch cable with maximum conductor insulation diameter of 0.048 inches (1.22mm) and maximum jacket diameter of 0.315 inches (8.00mm). The modular plug has a robust construction that is rated to 2500 mating cycles. The patented tangle-free latch prevents snags and provides easy release, saving time and providing reliability on moves, adds, and changes. This includes 100 per package.
Specifications
Specifications
Panduit - SP6X88-C - Specifications
| Product Type | Modular Plug |
|---|---|
| Performance Level | Category 6A |
| Connector Type | Modular Plug |
| Body Material | Polycarbonate |
| Contact Material | Gold Plated Phosphor Bronze |
| Number of Plugs | 100 |
| Shield Type | Unshielded (UTP) |
| Overall Width (In.) | 0.46 |
| Overall Width (mm) | 11.8 |
| Overall Height (In.) | 0.52 |
| Overall Height (mm) | 13.1 |
| Overall Depth (In.) | 1.6 |
| Overall Depth (mm) | 40.6 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| IP Rating | IP20 |
| Flammability Rating | UL94V-0 |
| UNSPSC Code | 43223300 |
| Type | MOD PLUG |
