Brand: Panduit
|
SKU:
614393-EA

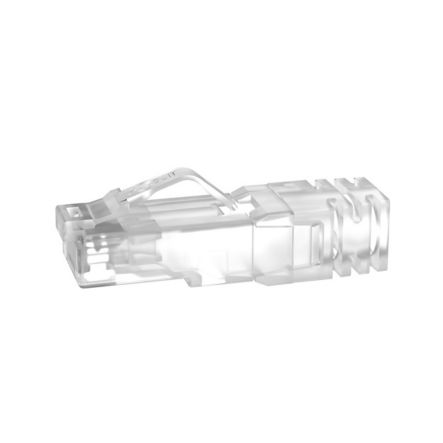

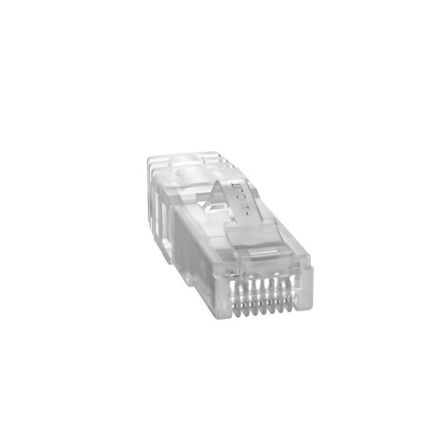

Panduit SP6X88P-C | Pan-Plug Modular Plug, Category 6A, 24 AWG, 100 Pack
Regular price
$7.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SP6X88P-C | Pan-Plug Modular Plug, Category 6A, 24 AWG, 100...
Regular price
$7.44
Unit price
Description
Description
Panduit SP6X88P-C | Pan-Plug Modular Plug, Category 6A, 24 AWG, 100 Pack
Modular plug, use with Category 6A, 24 AWG, 100 pk.
Panduit SP6X88P-C Modular Plug 24 awg, utp, cat6a, 8p8w100/pack
Specifications
Specifications
Panduit - SP6X88P-C - Product Categories
- Copper Systems
- Modular Plugs
Panduit - SP6X88P-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SP6X88P-C |
| Item Description | Pan-Plug Modular Plug, Category 6A, 24 AWG, 100 Pack |
| Product Type | UTP Modular Plug |
| Performance Level | Category 6A |
| Connector Type | Modular Plug |
| Body Material | Polycarbonate |
| Contact Material | Gold Plated Phosphor Bronze |
| Number of Plugs | 100 |
| Shield Type | Unshielded (UTP) |
| Overall Width (In.) | 0.46 |
| Overall Width (mm) | 11.8 |
| Overall Height (In.) | 0.52 |
| Overall Height (mm) | 13.1 |
| Overall Depth (In.) | 1.6 |
| Overall Depth (mm) | 40.6 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Compatible Wire Gauge (AWG) | 24 |
| Color | Clear |
| Standards Met | Exceeds ANSI/TIA Category 6A and ISO Class EA performance requirements when properly terminated to Panduit Category 6A UTP copper cable, Meets ANSI/TIA-1096-A (formerly FCC Part 68), IEC-60603-7, Supports PoE, PoE+, and proposed Type 3 and 4 PoE++ applications for up to 100 W, RoHS compliant |
| IP Rating | IP20 |
| Flammability Rating | UL94V-0 |
| Sub Brand | Pan-Plug |
| Type | RJ45 |
| UNSPSC Code | 43223300 |
Panduit - SP6X88P-C - Package Information
| UPC | 07498398040 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.1169 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 1.1688 |
Panduit - SP6X88P-C - Videos
| Video 1 | Click to View |
|---|
