Panduit SPF2-4-C | Grounding Connectors - Service Post, Female Thre...
Description
Description
The ability to provide a grounding system that is both reliable and economical is dependent upon finding the right connectors for the application. Panduit offers grounding connectors for a wide variety of conductor combinations and mounting configurations in high strength electrolytic copper, aluminum and bronze alloy materials. Globally distributed StructuredGround mechanical connectors provide fast and easy terminating of ground conductors to water pipe, ground rods, conduit, iron pipe and structural steel for highest reliability and lowest installed cost. With the addition of new ground clamps to the existing line-of StructuredGround mechanical connectors, Panduit delivers the breadth of line to supply the right connector for each unique job, providing maximum reliability and safety for all critical electrical connections throughout your physical infrastructure.

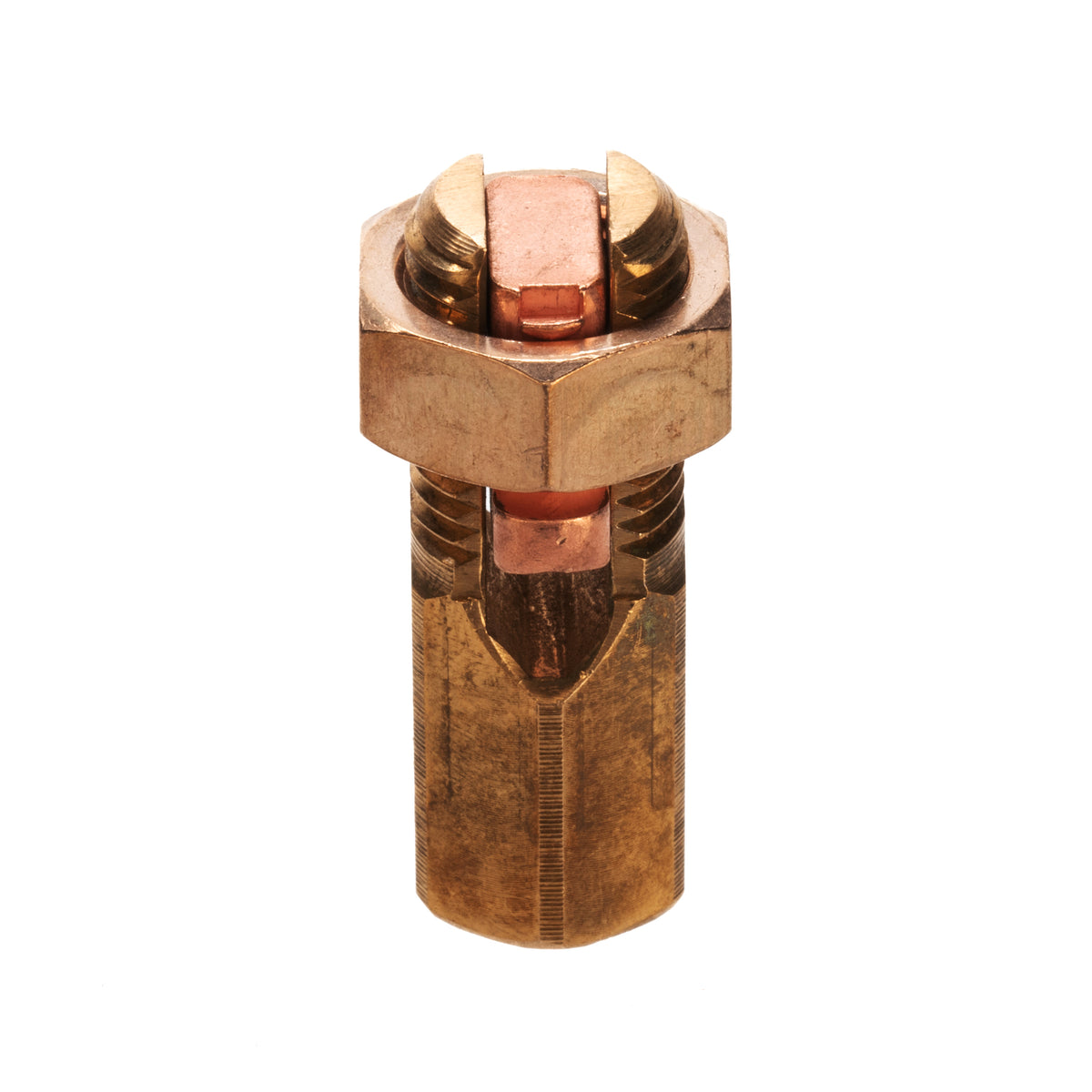

Panduit StructuredGround Service Post Connector, Double Female Mechanical, Series: SPF2, Solid/Stranded Conductor, 10 to 4 AWG Conductor, 0.31 in L Stud, 3/4 in Hex Nut, 0.56 in Hex Body, 240 in-lb Tightening Torque, Copper, Bronze, 1.56 in L
Features + Benefits
- Made from high copper content, hard drawn copper rod provides high strength
- True hex design for body and nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection
- Pressure bar provides secure connection on a full range of conductor combinations used with each connector providing premium wire pullout strength
- Wire range taking capability minimizes inventory requirements, saves cost
- UL listed for grounding and bonding and suitable for direct burial in earth or concrete
- Connecting conductors of various sizes to external threaded studs
- Satisfies grounding specification requirements for safety and reliability
- Creates optimum conductivity resulting in reliable, high quality connections
- Allows consolidation to one supplier, lowering procurement costs
- Provides worldwide product availability and expertise for consistent, rapid deployment
- Minimizes inventory requirements, saves cost
- Saves cost on special tooling
Panduit Panduit SPF2-4-C | Grounding Connectors - Service Post, Female Thread, two- Conductors | UPC - 07498371696 Key Specs
| Sub Brand | StructuredGround |
| Material | Bronze |
| Maximum Copper Conductor Size (AWG SOL) | 10 |
| Minimum Copper Conductor Size (AWG STR) | 4 |
| Overall Length (In.) | 1.56 |
| Overall Length (mm) | 39.6 |
| Hex Size (In.) | 0.75 |
| Hex Size (mm) | 19 |
| Application | Utility/Ground Grid |
| Standards Met | cULus Listed - 467, DB Rated |
| Product Type | Grounding Connectors - Service Post, Female Thread, two- Conductors |
| Part Features | Wide range-taking capabilities minimizes inventory requirements. True hex design for body and nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection. Pressure bar provides a secure connection on a full range of conductor combinations used with each connector providing premium wire pull-out strength. |
Panduit Panduit SPF2-4-C | Grounding Connectors - Service Post, Female Thread, two- Conductors | UPC - 07498371696 Data Sheets
| Part Drawings | Part Drawing - PDF - C41216_02 - SPF2 Family | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - SPF2-8-C Product Page | Download and View |
| Product Bulletins | StructuredGround Mechanical Connectors: GRCB02--SA-ENG | Download and View |
Panduit Panduit SPF2-4-C | Grounding Connectors - Service Post, Female Thread, two- Conductors | UPC - 07498371696 Environmental Information
| Panduit's RoHS Statement | Download and View |
