Brand: Panduit
|
SKU:
10044945

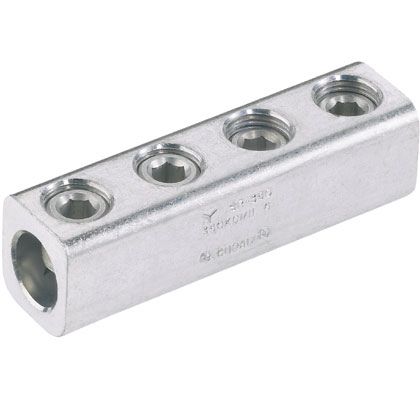

Panduit SR-250-XY | Mechanical Connectors - Splicer/Reducer | UPC - 07498360770
Regular price
$211.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SR-250-XY | Mechanical Connectors - Splicer/Reducer | UPC -...
Regular price
$211.07
Unit price
Description
Description
Panduit Splicer/Reducer, Series: SR Series, Copper/Stranded Aluminum Conductor, 14 to 2 AWG/14 to 10 AWG Conductor, 600 VAC, 5/16 in Hex Key, 90 deg C, Tin Plated Aluminum, 3.94 in L x 1 in W x 1.13 in H
Features + Benefits
- Made from high strength extruded aluminum alloy to provide premium electrical and mechanical performance
- Tin-plated to inhibit corrosion
- Rounded bottoms to facilitate taping
- Solid center barrier prevents contact of dissimilar metal conductors
- Wide wire range-taking capability minimizes inventory requirements
- Tin-Plating meets ASTM B545-97, class C 320 u-in
- The use of Panduit oxide inhibiting joint compound (CMP-100) is recommended
Panduit Panduit SR-250-XY | Mechanical Connectors - Splicer/Reducer | UPC - 07498360770 Key Specs
| Note | SR-250-XY replaces SR-250-X |
| Product Type | Mechanical Connectors - Splicer/Reducer |
| Sub Brand | Pan-Lug |
| Standards Met | LISTED PER UL486B |
| Hex Size (mm) | 7.9 |
| Overall Length (In.) | 3.94 |
| Overall Length (mm) | 100.1 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Overall Height (In.) | 1.1 |
| Overall Height (mm) | 28.7 |
| Part Features | The use of Panduit oxide inhibiting joint compound (CMP-100) is recommended. |
Panduit Panduit SR-250-XY | Mechanical Connectors - Splicer/Reducer | UPC - 07498360770 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - SR-2-XY Product Page | Download and View |
| Part Drawings | ALUMINUM SPLICE/REDUCER: C41540 | Download and View |
| Installation Documents | Aluminum Mechanical Splicer-Reducer Connector Installation Instructions | Download and View |
Panduit Panduit SR-250-XY | Mechanical Connectors - Splicer/Reducer | UPC - 07498360770 Environmental Information
| Panduit's RoHS Statement | Download and View |
