Panduit SR-4/0-XY | Mechanical Connectors - Splicer/Reducer | UPC -...
Description
Description
Panduit Pan-Term splices are designed and manufactured for fast assembly, and long reliable performance. As the demand for splices increases, it becomes essential to provide a complete system for termination products. We provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.

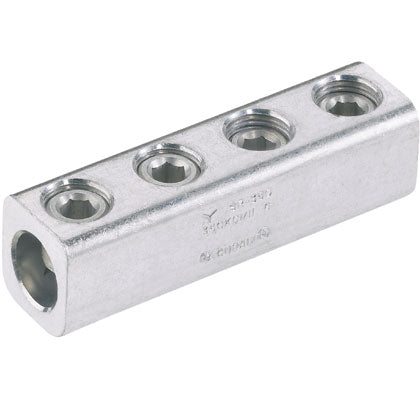

Panduit Pan-Term Splicer/Reducer, Dual Rated, Series: SR Series, Stranded Copper/Aluminum Conductor, 6 to 4/0 AWG Conductor, 600 VAC, 1.08 in L Wire Strip, 90 deg C, Aluminum Alloy, Tin Plated, 2.31 in L x 1 in W x 1.13 in H
Features + Benefits
- Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Tin plated to inhibit corrosion
- Rounded bottoms to facilitate taping
- Solid center barrier prevents contact of dissimilar metal conductors
- Wide wire range taking capability minimizes inventory requirements
Panduit Mechanical Connectors - Splicer/Reducer Key Specs
| Note | SR-4/0-XY replaces SR-4/0-X |
| Product Type | Mechanical Connectors - Splicer/Reducer |
| Sub Brand | Pan-Lug |
| Standards Met | LISTED PER UL486B |
| Hex Size (mm) | 7.9 |
| Overall Length (In.) | 2.31 |
| Overall Length (mm) | 58.7 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Overall Height (In.) | 1.1 |
| Overall Height (mm) | 28.7 |
| Part Features | The use of Panduit oxide inhibiting joint compound (CMP-100) is recommended. |
Panduit Mechanical Connectors - Splicer/Reducer Data Sheets
| Part Drawings | ALUMINUM SPLICE/REDUCER: C41540 | Download and View |
| Installation Documents | Aluminum Mechanical Splicer-Reducer Connector Installation Instructions | Download and View |
Panduit Mechanical Connectors - Splicer/Reducer Environmental Information
| Panduit's RoHS Statement | Download and View |
