Brand: Panduit
|
SKU:
10044963

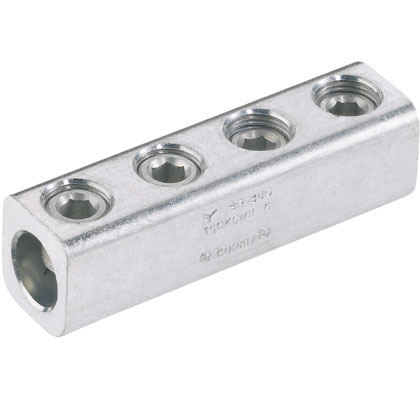

Panduit SR-500-3Y | Mechanical Connectors - Splicer/Reducer | UPC - 07498360774
Regular price
$2,561.30
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SR-500-3Y | Mechanical Connectors - Splicer/Reducer | UPC -...
Regular price
$2,561.30
Unit price
Description
Description
Panduit Splicer/Reducer, Series: SR Series, Copper/Stranded Aluminum Conductor, 3/0 AWG to 500 kcmil Conductor, 600 VAC, 3/8 in Hex Key, 90 deg C, Tin Plated Aluminum, 5 in L x 1.37 in W x 1.4 in H
Features + Benefits
- Made from high strength extruded aluminum alloy to provide premium electrical and mechanical performance
- Tin-plated to inhibit corrosion
- Rounded bottoms to facilitate taping
- Solid center barrier prevents contact of dissimilar metal conductors
- Wide wire range-taking capability minimizes inventory requirements
- Tin-Plating meets ASTM B545-97, class C 320 u-in
- The use of Panduit oxide inhibiting joint compound (CMP-100) is recommended
Panduit Panduit SR-500-3Y | Mechanical Connectors - Splicer/Reducer | UPC - 07498360774 Key Specs
| Note | SR-500-3Y replaces SR-500-3 |
| Product Type | Mechanical Connectors - Splicer/Reducer |
| Sub Brand | Pan-Lug |
| Standards Met | LISTED PER UL486B |
| Hex Size (mm) | 9.5 |
| Overall Length (In.) | 5 |
| Overall Length (mm) | 127 |
| Overall Width (In.) | 1.37 |
| Overall Width (mm) | 34.8 |
| Overall Height (In.) | 1.4 |
| Overall Height (mm) | 35.6 |
| Part Features | The use of Panduit oxide inhibiting joint compound (CMP-100) is recommended. |
Panduit Panduit SR-500-3Y | Mechanical Connectors - Splicer/Reducer | UPC - 07498360774 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - SR-2-XY Product Page | Download and View |
| Part Drawings | ALUMINUM SPLICE/REDUCER: C41540 | Download and View |
| Installation Documents | Aluminum Mechanical Splicer-Reducer Connector Installation Instructions | Download and View |
Panduit Panduit SR-500-3Y | Mechanical Connectors - Splicer/Reducer | UPC - 07498360774 Environmental Information
| Panduit's RoHS Statement | Download and View |
