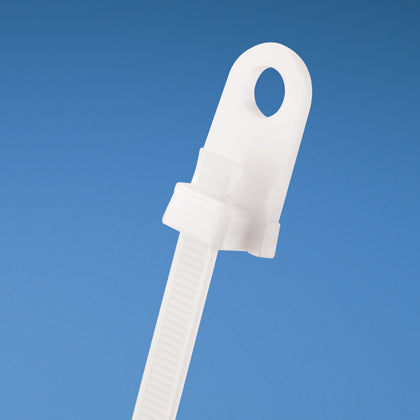

Panduit SSC2S-S10-C | Pan-Ty Sta-Strap Clamp Cable Tie, PA6.6, M5, 7.35"L, 50lb, PK100
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SSC2S-S10-C | Pan-Ty Sta-Strap Clamp Cable Tie, PA6.6, M5, ...
Description
Description
Bundling cables is easy with our clamp tie. Attach it to any surface, like racks, panels, or ceiling, with screws. Durable nylon for indoor use.
Sta-Strap clamp tie, standard cross section, #10 (M5) screw, 7.4 (187mm) length, nylon 6.6, natural, standard package.
Panduit Sta-Strap Clamp Tie, Standard, Series: SSC, 7.4 in Length, 0.18 in Width, 0.05 in Thickness, 1-3/4 in Bundle Dia, Releasable, 50 lb Tensile, -76 to 185 deg F, Nylon 6.6, Natural
Panduit - SSC2S-S10-C - Features
- Design allows for bundling before or after screwing clamp in place
- Exclusive 2-piece design offers the lowest threading force in the industry
- Has greater resistance to damage caused by UV light
- Only clamp tie that is releasable prior to final tensioning
- Secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling
- For indoor use
- Design allows for bundling before or after screwing clamp in place
- Exclusive two-piece design offers the lowest threading force in the industry
- Used to secure a cable bundle to another surface such as a control panel, communication rac, wall or ceiling
- Only clamp tie that is releasable prior to final tensioning
Specifications
Specifications
Panduit - SSC2S-S10-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SSC2S-S10-C |
| Cable Tie Diameter | 1.75" |
| Type | Cables Ties And Accessories |
| Size | 7" |
| UNSPSC Code | 39121703 |
| Product Type | Cable Tie |
| Sub Brand | Sta-Strap |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 7.35 |
| Overall Length (mm) | 187 |
| Body Width (In.) | 0.18 |
| Body Width (mm) | 4.6 |
| Maximum Bundle Diameter (In.) | 1.75 |
| Maximum Bundle Diameter (mm) | 45 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Screw Size | #10 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| UPC | 07498352009 |
Panduit - SSC2S-S10-C - Videos
| Panduit SSC2S-S10-C Video 1 | Click to View |
|---|
