Panduit SSC2S-S10-M0 | Cable Tie | UPC - 07498357082
Regular price
$1.46
Unit price
Brand: Panduit
|
SKU:
9783496
Regular price
$1.46
Unit price
Description
Description

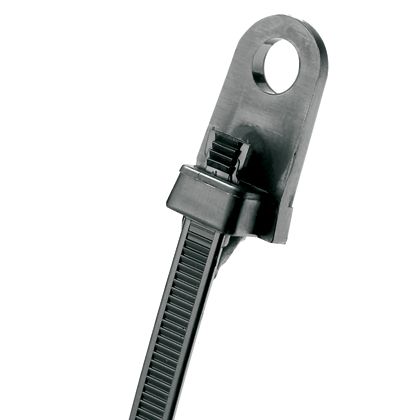

Panduit Sta-Strap Clamp Tie, Standard, Series: SSC, 7.4 in Length, 0.18 in Width, 0.05 in Thickness, 1-3/4 in Bundle Dia, Releasable, 50 lb Tensile, -76 to 185 deg F, Nylon 6.6, Black
Features + Benefits
- Design allows for bundling before or after screwing clamp in place
- Exclusive 2-piece design offers the lowest threading force in the industry
- Has greater resistance to damage caused by UV light
- Only clamp tie that is releasable prior to final tensioning
- Secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling
Panduit SSC2S-S10-M0 Key Specs
| Product Type | Cable Tie |
| Color | Black |
| Environment | Outdoor |
| Material | Weather Resistant Nylon 6.6 |
| Standards Met | CE, RoHS Compliant, UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854) |
| Resistance Properties | UV Resistant |
| For Use With | Cables |
| Maximum Bundle Diameter (In.) | 1.75 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Maximum Bundle Diameter (mm) | 45 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Maximum Installation Temperature (°C) | 0 |
| Minimum Installation Temperature (°C) | -20 |
| Sub Brand | Pan-Ty |
| Maximum Installation Temperature (°F) | 32 |
| Minimum Installation Temperature (°F) | -4 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -60 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Overall Length (In.) | 7.35 |
| Overall Length (mm) | 187 |
| Body Width (In.) | 0.18 |
| Body Width (mm) | 4.6 |
| Part Features | Two-piece design, extremely low thread force, may be released prior to final tensioning. |
Panduit SSC2S-S10-M0 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - SSC2S-S6-C Product Page | Download and View |
| Part Drawings | Part Drawings - PDF - SS_600SSCclmptie | Download and View |
| Videos | Premium Cable Ties | Download and View |
| Selection Guides | Cable Ties Product Selection Guide. | Download and View |
