Brand: Panduit
|
SKU:
249849
Panduit SST8H-D | Sta-Strap Sst8H-D Sta-Strap Cable Tie, Pa6.6, 27.5"L, 120Lb, Pk500
Regular price
$980.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SST8H-D | Sta-Strap Sst8H-D Sta-Strap Cable Tie, Pa6.6, 27....
Regular price
$980.36
Unit price
Description
Description
Panduit SST8H-D | Sta-Strap Sst8H-D Sta-Strap Cable Tie, Pa6.6, 27.5"L, 120Lb, Pk500

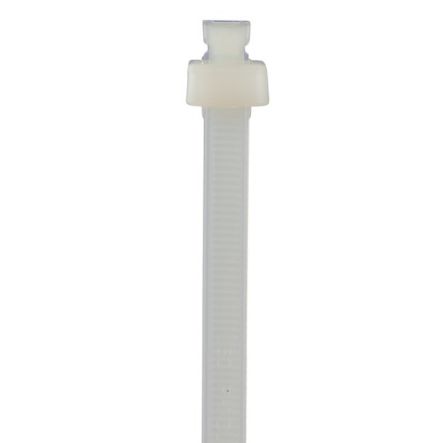

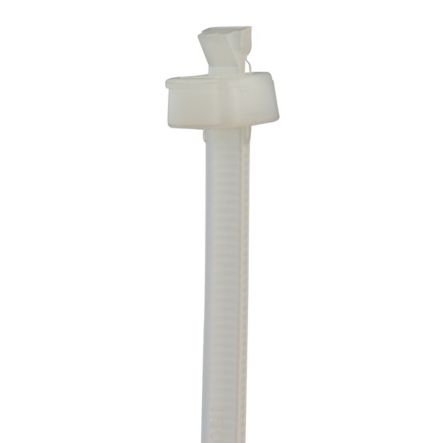

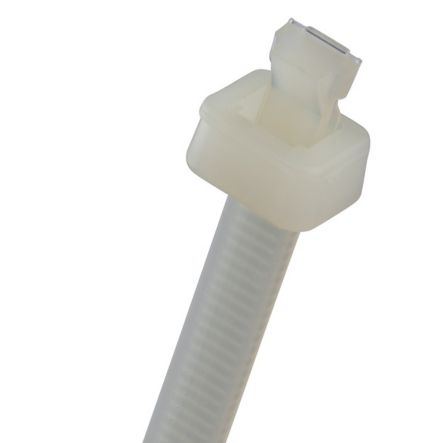

Sta-Strap cable tie, releasable, light-heavy cross section, 27.5 (699mm) length, nylon 6.6, natural, bulk package.
Panduit - SST8H-D - Features
- For indoor use
- Used for normal bundling and through-panel applications
- Small head height allows more efficient use of space in compact areas
- Exclusive two-piece design offers the lowest threading force in the industry
- Average 14% lighter than one-pie cable ties
- Releasable prior to final tensioning for bundle modifications
- Straight Tip design
Specifications
Specifications
Panduit - SST8H-D - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - SST8H-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SST8H-D |
| Item Description | Sta-Strap Sst8H-D Sta-Strap Cable Tie, Pa6.6, 27.5"L, 120Lb, Pk500 |
| Product Type | Cable Tie |
| Sub Brand | Sta-Strap |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 27.5 |
| Overall Length (mm) | 699 |
| Body Width (In.) | 0.3 |
| Body Width (mm) | 7.6 |
| Maximum Bundle Diameter (In.) | 8 |
| Maximum Bundle Diameter (mm) | 203.2 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 534 |
| Minimum Loop Tensile Strength (lb) | 120 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 Compliant (Type 1, 11), UL Recognized #E56854, RoHS, CE Compliant |
| Military Cross Reference Number | MS3367-6-9 |
| For Use With | Cables |
| Application | General |
Panduit - SST8H-D - Package Information
| UPC | 07498350221 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.5494 |
| Standard Ctn. Quantity | 2000 |
| Standard Ctn. Volume (cf) | 2.1976 |
Panduit - SST8H-D - Videos
| Video 1 | Click to View |
|---|
